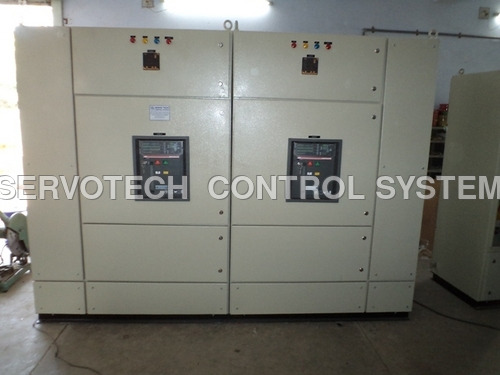

EMF Panel

EMF Panel
EMF Panel
Send Inquiry
Product Code : EP-28
Brand Name : SERVO TECH
Product Description

EMF PANEL

Using voltage sensing relays, contactors and forward biased series silicon diodes the Counter EMF panel maintains the load voltage for a particular system requirement. A voltage sensing circuit monitors the battery voltage and controls a contactor rated for the total system load current.  When the battery voltage is above a preset voltage, the Counter EMF diodes are engaged reducing the DC load voltage values to the required voltage range of the load.  When the battery voltage drops below the preset level due todis charge, the contactor is energized, removing diodes

For More details :  Download the PDF file

Technical Specification

Phase

Three Phase

Capacity (Amps)

4.37-50 A

Voltage

220 V/380 V

IP Rating

IP54

Power

50-100 KVAR
