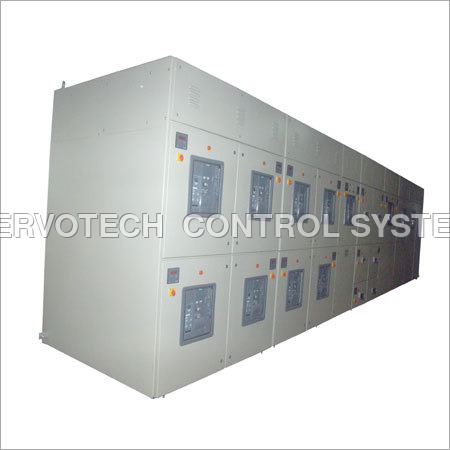

Power Control Center Panel

Name: Power Control Centers(PCC)
Brand: SERVO TECH CONTROL SYSTEM
Price: 200000 INR
Availability: InStock

Price 200000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Power Control Center Panel Specification

Control System
Manual / Automatic

Cooling System
Natural Air / Forced Air (Fan) Cooling

Cabinet Material
CRCA Sheet Steel

Rated Operation Voltage
415V

Components
Air Circuit Breakers, MCCB, MCB, Bus Bars, Control Wiring

Rated Insulation Voltage
690V

Features
Robust construction, modular design, easy maintenance, high fault withstand capacity

Connectivity Type
Cable / Bus Duct entry/exit (top or bottom)

Protection Level
IP42 / IP52 / IP54

Protection Class
Class I

Cover Material
Powder Coated Steel

Thickness
1.6 mm to 2.5 mm

Current Rating
5000A

Way
As per requirement (customizable)

Operating Voltage
380V/415V AC

Base Material
Mild Steel (MS) CRCA Sheet

Rated Current
Upto 6300 Amps Ampere (amp)

Panel Type
Floor Mounted, Modular Type

Product Type
Other

Material
Mild Steel

Surface Finish
Epoxy Powder Coated

Standard
IS 8623 / IEC 61439

Surface Color
Powder Coated (Siemens Grey or customized)

Rated Voltage
440 V Volt (V)

Frequency (MHz)
50 Hz

Maximum Output Current
Up to 6300A

Dimension (L*W*H)
Custom as per design

Application
Industrial, Commercial Power Distribution

IP Rating
IP42, IP52, IP54 (As per requirement)

Display Type
Analog/Digital meters

Earthling
Dual Earth Bus with proper terminals

Mounting Type
Free Standing, Floor Mounted

Compliance
CE/ISO Certified

Cable Entry
Top & Bottom (as required)

Interlocking
Electrical or Mechanical as per design

Busbar Insulation
Heat Shrink Sleeves or Epoxy Coated

Busbar Material
Electrolytic Grade Copper / Aluminum

Service Access
Front/Rear as per layout

Door Type
Hinged, Gasketed for Dust Protection

Ambient Temperature
Up to 50C

Power Control Center Panel Trade Information

Minimum Order Quantity
1 Piece

FOB Port
AHMEDABAD

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
10 Pieces Per Week

Delivery Time
3 Week

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
Gujarat, Madhya Pradesh, Maharashtra, Rajasthan

About Power Control Center Panel

Power Control Centers (PCC) offered by us is suitable to be installed in hotels, companies, factories, textile industry, colleges and allied sectors for the purpose of distributing main power to varied area of plant. This consists of feeder breakers & supply breakers, control devices, monitoring devices, switching devices, instrumentation devices, protection devices, etc. Comes in different power ranges, the Power Control Centers (PCC) is made accessible in Single Busbar / Double Busbar with multiple choices of of MCCB / ACB / SFU / changeover.

Reliable and Flexible Power Distribution

With customizable configurations, Power Control Centers ensure efficient and uninterrupted power distribution across industrial and commercial environments. These panels are equipped to handle high current ratings, up to 6300A, and feature both analog and digital monitoring capabilities. Their dual cable entry options, modular design, and flexible service access simplify installation and facilitate maintenance without operational disruptions.

Durable Construction and Advanced Protection

Constructed from CRCA mild steel, PCCs feature powder-coated surfaces, hinged, gasketed doors to minimize dust ingress, and robust epoxy or heat-shrink insulated busbars for enhanced safety. The panels offer protection grades up to IP54 and are designed to withstand the mechanical and thermal stresses found in demanding settings, ensuring long-lasting and reliable performance.

Certified Quality and Compliance

Each Power Control Center complies with prominent standards, including IS 8623, IEC 61439, and carries CE/ISO certifications. Stringent adherence to these regulations guarantees safety, superior build quality, and dependable operation, making them suitable for mission-critical applications in power distribution.

FAQ's of Power Control Centers(PCC):

Q: How does the Power Control Center ensure operational safety and reliability?

A: The PCC uses insulated electrolytic grade copper or aluminum busbars, robust CRCA steel construction, and high-quality components such as air circuit breakers and MCCBs. Dual earth bus terminals and hinged, gasketed doors provide additional electrical and environmental safety, with the overall system compliant with CE/ISO and industry standards like IS 8623 and IEC 61439.

Q: What is the process for customizing the PCC according to specific requirements?

A: Customization starts with assessing your operational load, layout, and electrical needs. The PCC can be tailored for current ratings up to 6300A, various cable entry points (top or bottom), modular ways, dimensions, interlocking mechanisms, and cooling systems. Professional design teams ensure that the final product aligns precisely with your site's technical and ambient conditions.

Q: When should you opt for top or bottom cable entry in PCC panels?

A: The choice of top or bottom cable entry depends on your site's cable routing plan and spatial constraints. Top entry is generally preferred where overhead cabling is used, while bottom entry suits installations with underfloor ducting, maximizing flexibility during both new and retrofit installations.

Q: Where are these Power Control Centers typically installed?

A: These PCCs are designed for floor-mounted, free-standing installation in industrial or commercial utility rooms, control centers, manufacturing floors, and substations. Their rugged build, dust protection, and ambient temperature tolerance up to 50C make them suitable for both indoor and demanding environments.

Q: What are the main benefits of choosing a modular, free-standing PCC?

A: Modular PCCs provide expandable and flexible solutions, easy maintenance through front/rear access, enhanced fault withstand capacity, and adaptability for future upgrades. Free-standing designs allow convenient positioning, while robust construction ensures safety, longevity, and compliance with stringent industry standards.
