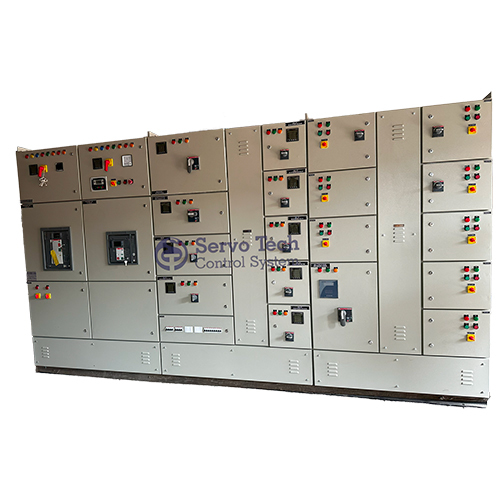

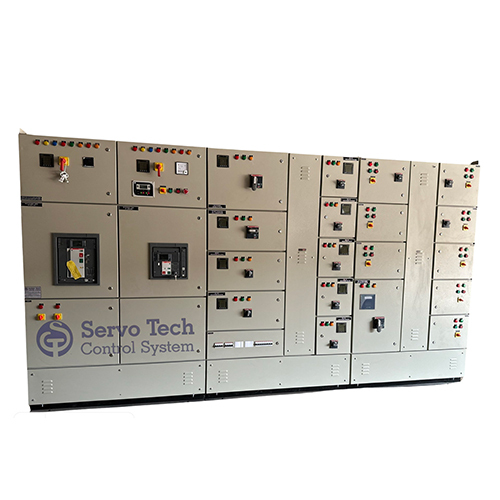

AMF with PCC Panel

Name: AMF with PCC Panel
Brand: SERVO TECH CONTROL SYSTEM
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

AMF with PCC Panel Specification

Cabinet Material
Powder Coated Steel

Rated Operation Voltage
415 V AC

Current Rating
6300 A

Features
Auto Mains Failure (AMF) function, Synchronization, Remote Monitoring Option, Overload and Short Circuit Protection, Phase Sequence Protection

Rated Current
Up to 6300 A

Protection Level
IP54/IP55 (Optional)

Connectivity Type
Wired

Cooling System
Natural Air Cooling/Fan Cooling

Panel Type
Floor Mounted, Modular

Control System
Automatic & Manual

Operating Voltage
380-440 V AC

Base Material
Mild Steel

Cover Material
CRCA Sheet Steel

Components
ACB, MCCB, MCB, Relays, Contactors, CT, PT, Indicating Lamps

Protection Class
Class I

Way
Customized (as per design)

Rated Insulation Voltage
690 V AC

Thickness
2 mm

Product Type
AMF with PCC Panel

Material
High-Quality CRCA Sheet Steel

Surface Finish
Epoxy Powder Coated

Standard
IEC 61439, IS 8623

Surface Color
Siemens Grey (RAL 7032)

Rated Voltage
415 V AC

Frequency (MHz)
50 Hz

Maximum Output Current
6300 A

Dimension (L*W*H)
As per customer requirement

Application
Industrial Power Distribution & Generator Control

IP Rating
IP54, IP55

Display Type
Digital/Analog Meters

Enclosure
Dust-Proof, Vermin-Proof

Humidity Range
Up to 95% (Non-condensing)

Cable Entry
Top/Bottom (As required)

Mounting Type
Free Standing

Operating Temperature
-10C to +55C

Finish Type
Smooth Powder Coating

Door Type
Double Door

Brand Compatibility
All Leading Breaker & Relay Brands Supported

Metering
Digital Multifunction Meter

Busbar Material
Electrolytic Grade Aluminium/Copper

Communication
RS485/Modbus (Optional)

Operation Mode
Auto/Manual Switchable

Testing
Routine & Type Tested as per Standards

Panel Construction
Modular, Compartmentalized

Earthing
Dual Earthing Provision

AMF with PCC Panel Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

About AMF with PCC Panel

Discover a top-rated AMF with PCC Panel crafted for peerless performance in industrial power distribution and generator control. Capitalise on advanced, acclaimed technologies-a gilt-edged solution featuring both Auto and Manual operation, robust modular construction, and dual earthing for utmost safety. With top-ranking compatibility for all leading breaker and relay brands, precision digital metering, and smooth powder coating, this panel guarantees reliability. Enjoy flexibility in cable entry, high-quality CRCA sheet steel build, and a resilient, dust- and vermin-proof enclosure all tested to IEC and IS standards.

Superior Use Type and Unmatched Features

AMF with PCC Panel is engineered for industrial applications-delivering uninterrupted power management, auto mains failure function, and intelligent synchronization. Its modular, floor-mounted design ensures easy expansion and maintenance. The panel's acclaimed features include remote monitoring options, natural/fan cooling, overload and short-circuit protection, and digital multifunction metering. Customizable to various current ratings, this panel provides a competitive edge with state-of-the-art safety, flexibility, and operational excellence in demanding environments.

Streamlined Payment, Export, and Delivery Assurance

Our AMF with PCC Panels are available with transparent payment terms and are ready for global dispatch. Express shipping ensures your product arrives swiftly and securely, meticulously packaged for damage-free arrival. Serving major export markets across the globe, we guarantee timely order completion with proper documentation. Each panel is shipped in protective, industry-grade packaging, ensuring that your investment reaches its destination in pristine condition, ready for seamless installation and operation.

FAQ's of AMF with PCC Panel:

Q: How does the AMF with PCC Panel enhance industrial power distribution?

A: The AMF with PCC Panel ensures uninterrupted power to your facility by automatically transferring load to standby generators during power failures, managing synchronization, and providing both digital and analog metering for real-time monitoring and control.

Q: What safety features are integrated into the panel design?

A: Safety is paramount; the panel offers overload and short-circuit protection, phase sequence protection, dual earthing provisions, and dust-proof, vermin-proof enclosure, all tested to routine and type standards (IEC 61439, IS 8623).

Q: When is it recommended to switch between automatic and manual operation modes?

A: Automatic mode is ideal during normal operations for seamless switching during power failures, while manual mode can be selected for maintenance, testing, or troubleshooting, providing operational flexibility as needed.

Q: Where can the AMF with PCC Panel be installed?

A: This floor-mounted, modular panel is designed for indoor industrial environments, supporting applications in manufacturing, utilities, and any facility requiring reliable power distribution and generator control.

Q: What is the process for ordering and receiving the panel?

A: Upon confirmation of your requirements, orders are processed with clear payment terms. Panels are built to your specifications, thoroughly tested, expertly packaged, and shipped via express channels to ensure timely and secure arrival.

Q: What are the main benefits of the panel's modular and compartmentalized construction?

A: Modular and compartmentalized construction allows easier customizations, simplified expansions, improved safety through section isolation, and streamlined maintenance, resulting in reduced downtime and maximum operational uptime.
