Industrial Control Panels

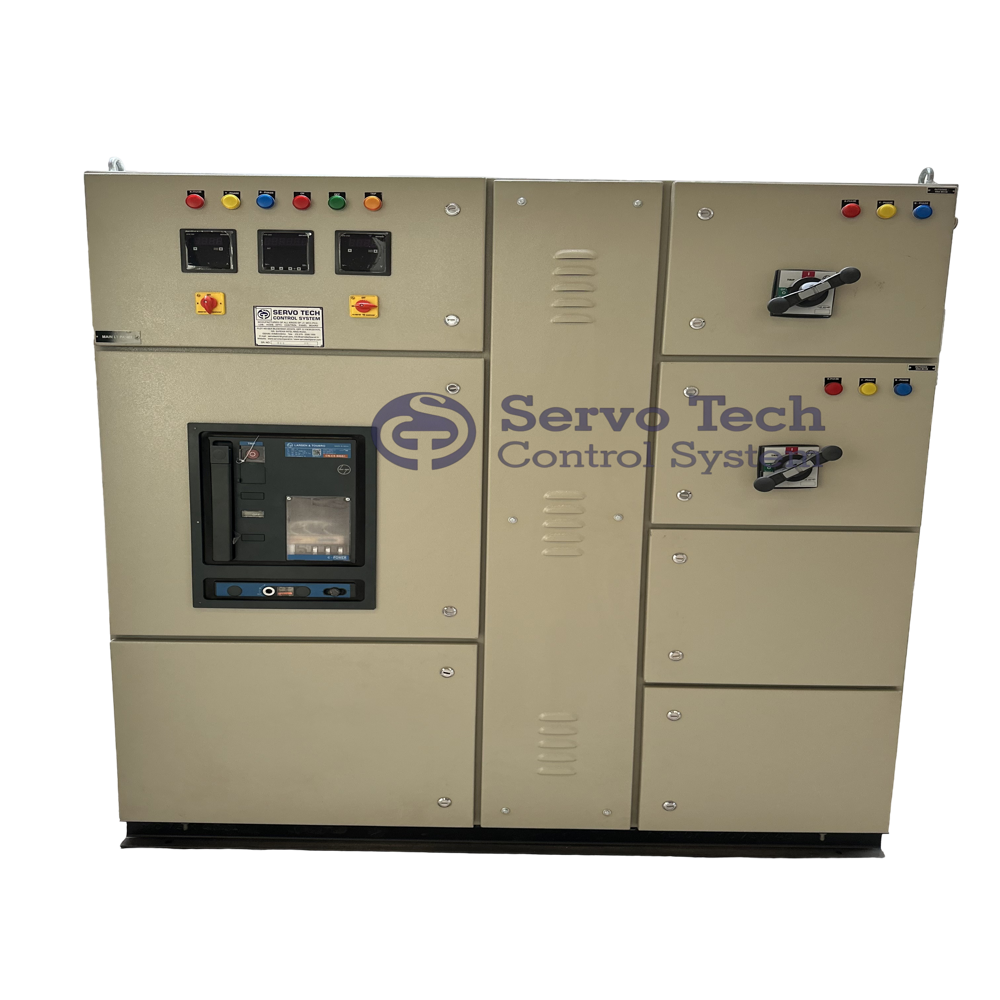

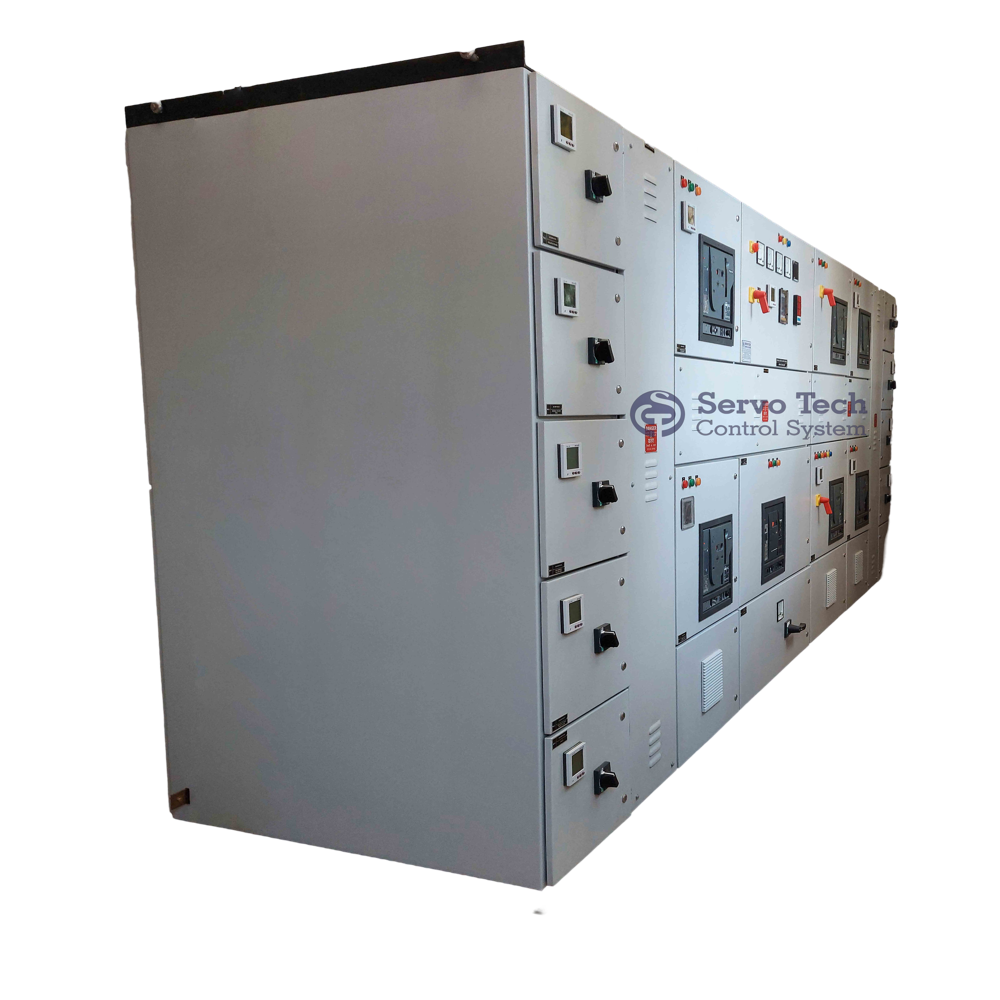

• Application
• Power Distribution, Industrial, Commercial

• Base Material
• Other

• Cabinet Material
• CRCA Sheet Steel

• Components
• Air Circuit Breakers, Indicators, Control Switches, Busbars

• Connectivity Type
• Hardwired, Communication ports optional

• Control System
• Manual/Automatic

• Cooling System
• Natural Air Cooled

• Cover Material
• Other, CRCA Steel with Powder Coating

• Current Rating
• 6300A

• Dimension (L*W*H)
• Custom-built as per site requirements

• Display Type
• Other, Analog / Digital Meters

• Features
• Modular Construction, High Short Circuit Withstand, Easy Maintenance

• Frequency (MHz)
• 50/60 Hz

• IP Rating
• Other, IP42 to IP55

• Material
• Other

• Maximum Output Current
• 6300A

• Operating Voltage
• 415V AC

• Panel Type
• ACB Distribution Panel

• Product Type
• Other, Air Circuit Breaker (ACB) Panel

• Protection Class
• Class 1

• Protection Level
• Other, IP42 / IP52 / IP55 (as required)

• Rated Current
• Up to 6300A

• Rated Insulation Voltage
• 1000V

• Rated Operation Voltage
• 660V

• Rated Voltage
• 690V AC

• Standard
• IEC 61439 / IS 8623

• Surface Color
• White

• Surface Finish
• Other, Epoxy Powder Coated

• Thickness
• 1.6 mm - 2 mm (Sheet Thickness)

• Way
• Multi Way (Custom Configurable)

• Base Material
• Mild Steel, Metal Base

• Cover Material
• Metal

• Dimension (L*W*H)
• 900 x 2000 x 2100 Millimeter (mm)

• Frequency (MHz)
• 50 Hertz (HZ)

• Material
• Mild Steel

• Maximum Output Current
• 450 Volt (v)

• Operating Temperature
• 40 Celsius (oC)

• Operating Voltage
• 415 Volt (V)

• Product Type
• Electric Panel

• Protection Level
• Other

• Rated Current
• 2000 Ampere (amp)

• Rated Voltage
• 415 Volt (V)

• Surface Color
• Any Color

• Surface Finish
• Powder Coated

• Thickness
• 2 Millimeter (mm)

• Warranty
• 1 Year

• Frequency (MHz)
• 50 Hz Hertz (HZ)

• Material
• Metal

• Product Type

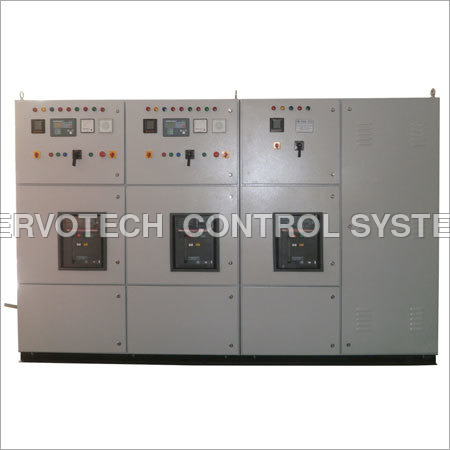

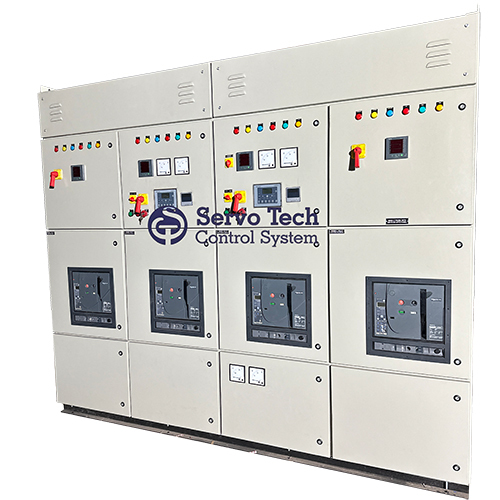

• Other, Automatic Mains Failure Control Panel

• Rated Current
• Upto 5000 Amps Ampere (amp)

• Rated Voltage
• 440V Volt (V)

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Warranty
• Yes

• Base Material
• Metal Base

• Cover Material
• Metal Base

• Frequency (MHz)
• 50 hz Hertz (HZ)

• Material
• Metal

• Product Type
• Electric Panel

• Protection Level
• IP66

• Surface Color
• Any Color

• Surface Finish
• Powder Coated

• Thickness
• 2 mm Millimeter (mm)

• Warranty
• 1 year

• Base Material
• Other

• Frequency
• 50 Hertz (HZ)

• Material
• Other

• Surface Color
• White

• Usage & Applications
• Generator

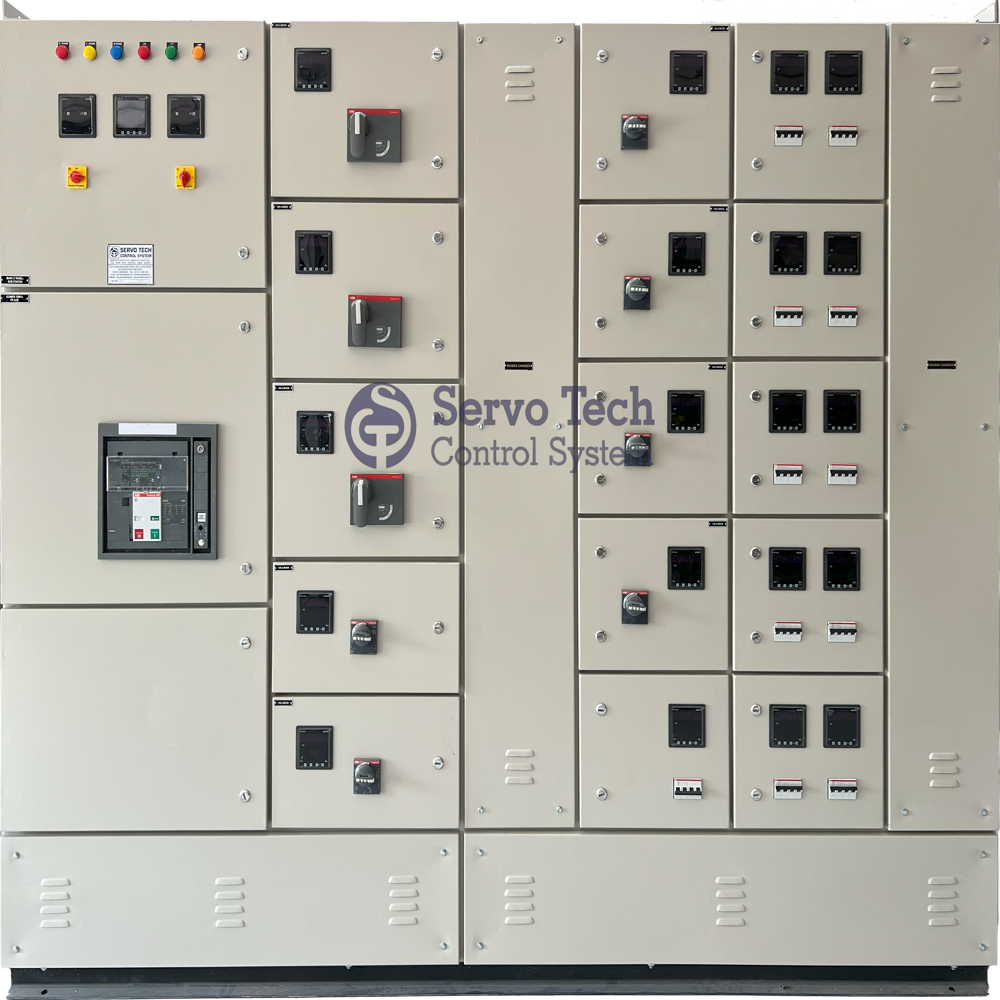

• Application
• Power Distribution, Industrial Automation, Commercial Buildings

• Base Material
• PC cover

• Cabinet Material
• MS / CRCA Sheet Metal

• Components
• Circuit Breakers, Busbars, Relays, Meters, CT/PT

• Connectivity Type
• Wired, Modbus (Optional)

• Control System
• Manual / Automatic

• Cooling System
• Natural Air / Forced Air

• Cover Material
• Other, Powder Coated Steel

• Current Rating
• Up to 6300A

• Dimension (L*W*H)
• Customized as per requirement

• Display Type
• Other, Analog / Digital Meter

• Features
• Low Power Consumption, Robust Design, Corrosion Resistant

• Frequency (MHz)
• 50 / 60 Hz

• IP Rating
• Other, IP52 / IP54 / IP55

• Material
• ABS

• Maximum Output Current
• Up to 6300A

• Operating Voltage
• 415 V AC

• Panel Type
• Indoor / Outdoor

• Product Type
• Junction Box

• Protection Class
• Class I / II

• Protection Level
• Other, IP42 / IP52 / IP54 / IP55

• Rated Current
• Up to 6300A

• Rated Insulation Voltage
• 690 V

• Rated Operation Voltage
• 415 V

• Rated Voltage
• 415 V AC

• Standard
• IEC 61439 / IS 8623

• Surface Color
• Any Color

• Surface Finish
• Electro Galvanized

• Thickness
• 1.6 mm to 2.5 mm

• Way
• Single / Double Front

• Base Material
• Metal Base

• Cover Material
• PC cover

• Material
• Metal

• Product Type
• Electric Panel

• Surface Color
• White

• Surface Finish
• Electro Zinc Plated

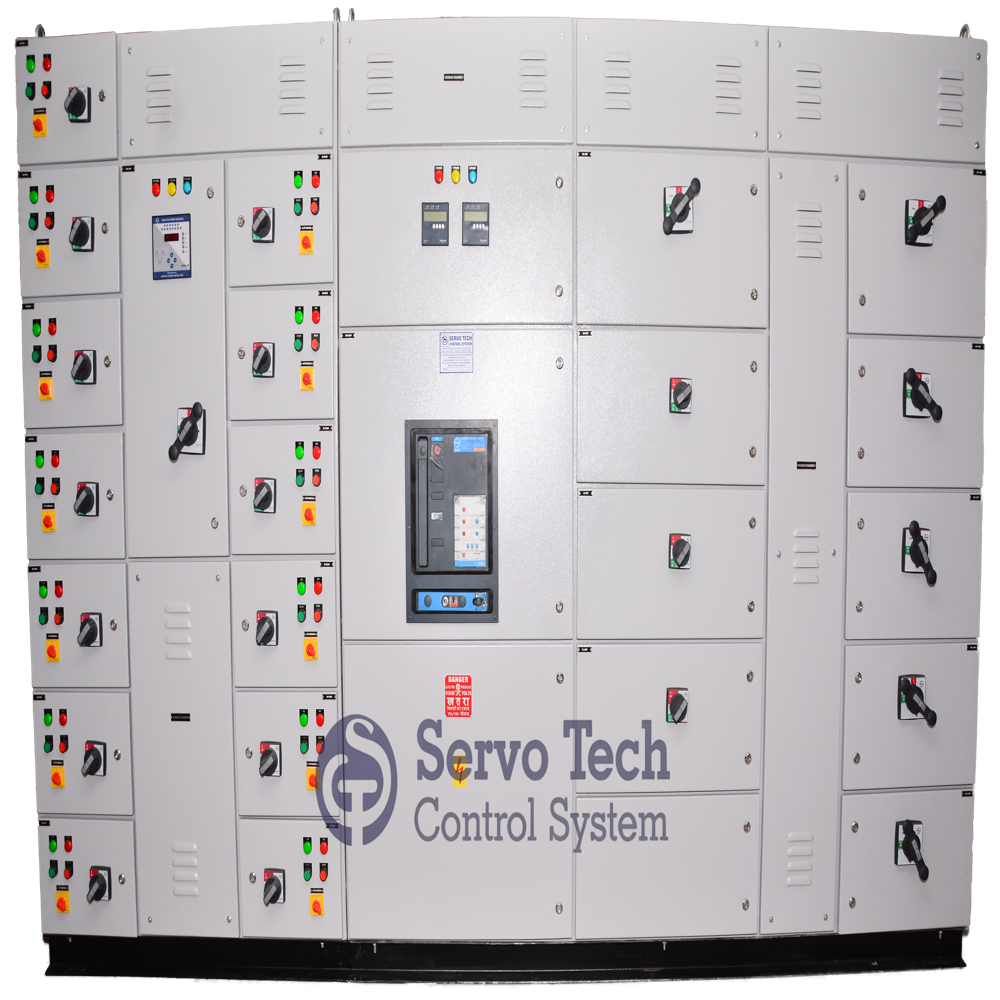

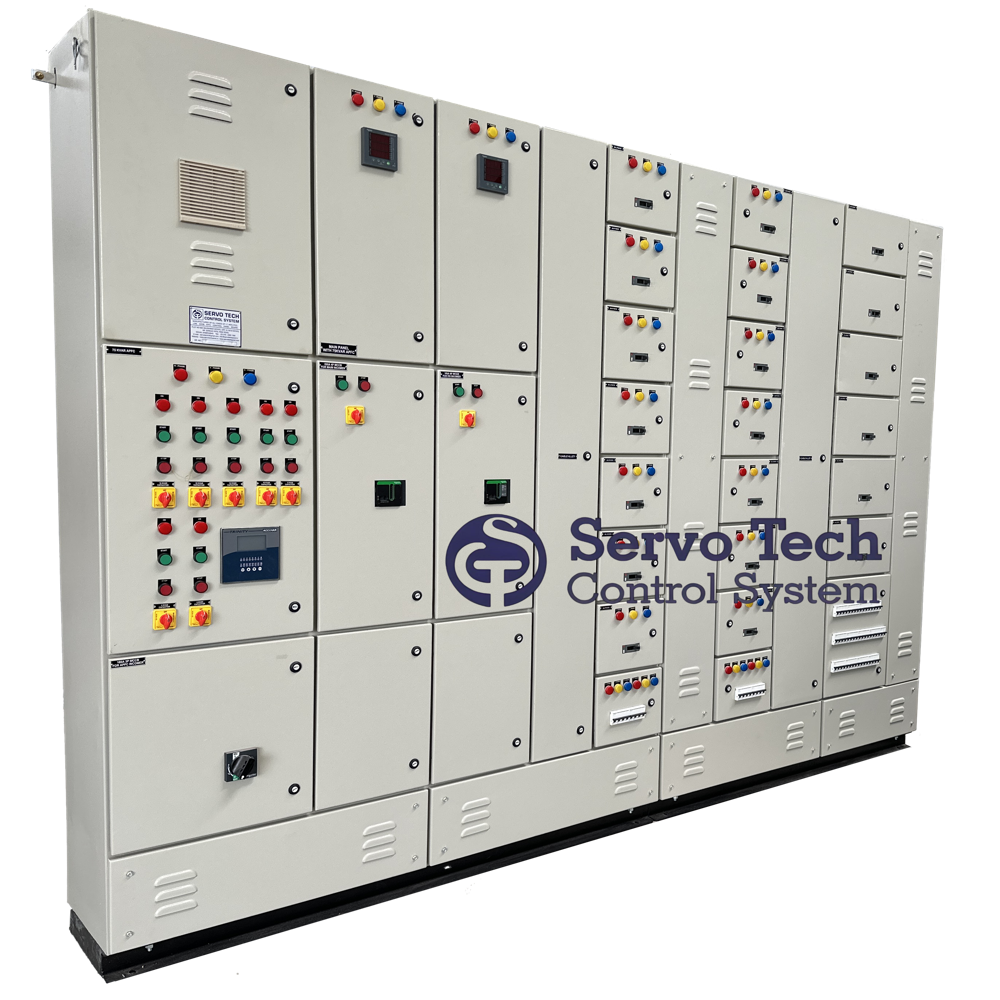

• Application
• Chemical Industry, Cement Plant, Sugar Plant, Textile, Hospital

• Base Material
• Mild Steel

• Cabinet Material
• MS Powder Coated Enclosure

• Cable Type
• PVC / XLPE Copper Cable

• Components
• Capacitor Bank, APFC Relay, MCCB, Contactor, Detuned Reactor (Optional), Busbar

• Conductor
• Copper / Aluminium

• Connectivity Type
• Hardwired

• Control System
• Microprocessor-Based APFC Relay

• Cooling System
• Natural Air / Forced Ventilation

• Cover Material
• Stainless Steel

• Current Rating
• 100A 2000A

• Display Type
• Digital APFC Relay Display

• Features
• Automatic PF Correction, Energy Saving, Low Maintenance

• Material
• PC cover

• Panel Type
• Indoor / Outdoor

• Phase
• Three Phase

• Power Rating
• 0-0.99 %

• Product Type
• Electric Panel

• Protection Class
• Class I

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 3 kV to 10 kV Volt (V)

• Surface Color
• Brown

• Surface Finish
• Electro Zinc Plated

• Usage & Applications
• Industrial Plants, Commercial Buildings, Manufacturing Units

• Warranty
• 12 Months

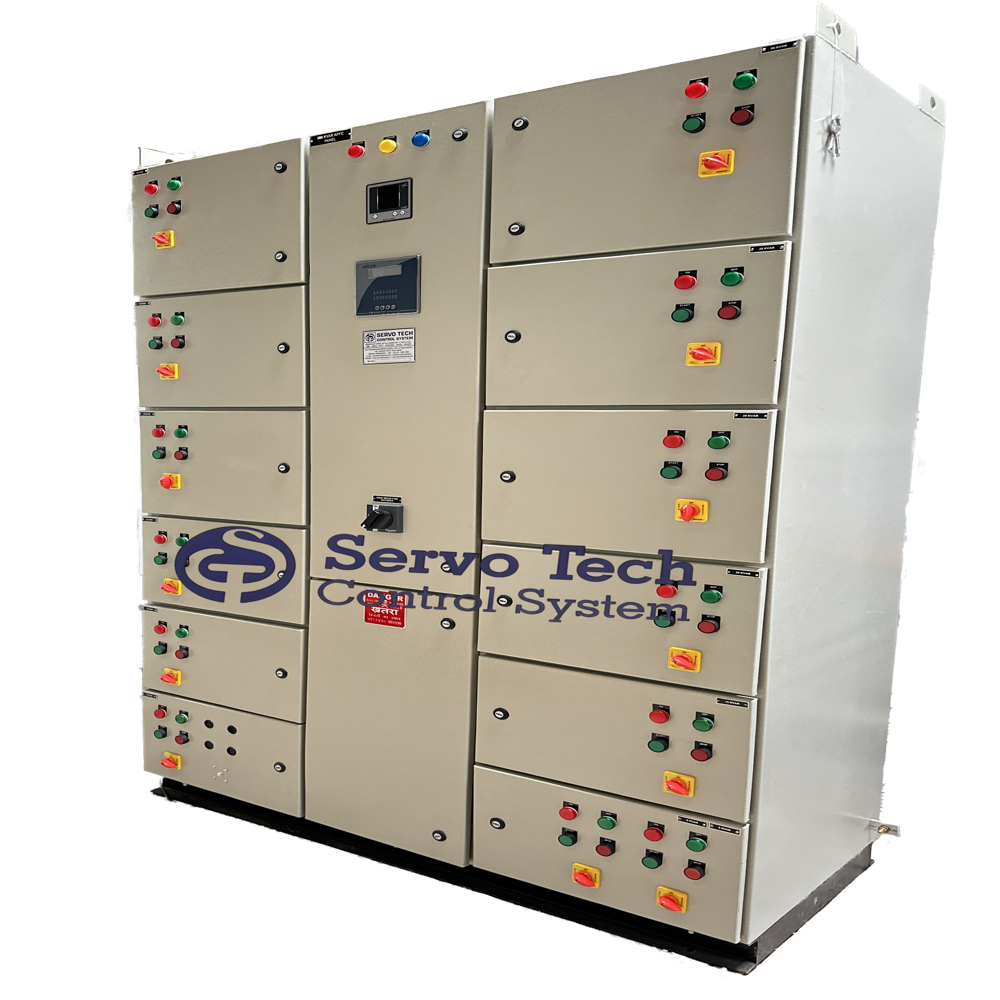

• Application
• Industry / Commercial

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel Sheet

• Components
• MCB, MCCB, Relays, Contactors, Volt/Amp meters

• Connectivity Type
• Hardwired

• Control System
• Manual/Automatic

• Cooling System
• Natural Air Vented

• Cover Material
• Other, Powder Coated Steel

• Current Rating
• 5000A

• Dimension (L*W*H)
• As per design/specification

• Display Type
• Other, Analog Meter

• Features
• Corrosion Resistant, Robust Design, Long Life

• Frequency (MHz)
• 50 Hz

• Material
• Other

• Maximum Output Current
• 630A

• Operating Voltage
• 380-415V AC

• Panel Type
• Floor Mounted

• Product Type

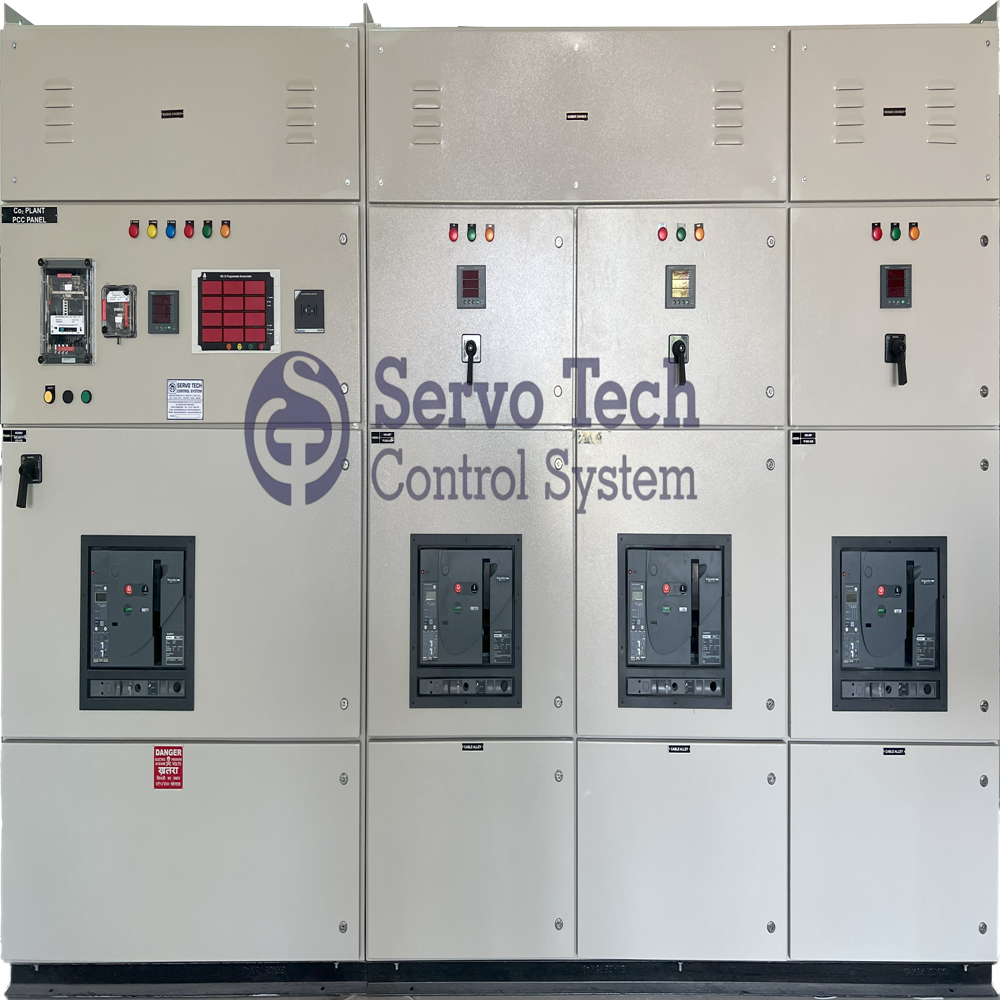

• Other, Electric Control Panel

• Protection Class
• Class 1

• Protection Level
• Other, IP42 / IP54

• Rated Current
• Customizable

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IS 8623 / IEC 60439

• Surface Color
• Other, Powder Coated Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6mm to 2mm

• Way
• Configurable

• Application
• Industrial Automation

• Base Material
• Other, MS Sheet

• Cabinet Material
• Mild Steel

• Components
• PLC, MCB, MCCB, Relays, Terminal Blocks

• Connectivity Type
• Ethernet/RS-485

• Control System
• Programmable Logic Controller

• Cooling System
• Natural/Forced Air Cooling

• Cover Material
• Other, MS Sheet

• Current Rating
• Up to 63A

• Dimension (L*W*H)
• 1200 x 1000 x 300 mm

• Display Type
• Other, LED/Panel Meter

• Features
• Corrosion resistant, dust proof, compact design

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP55

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 63A

• Operating Voltage
• 415V AC

• Panel Type
• PLC Automation Panel

• Product Type

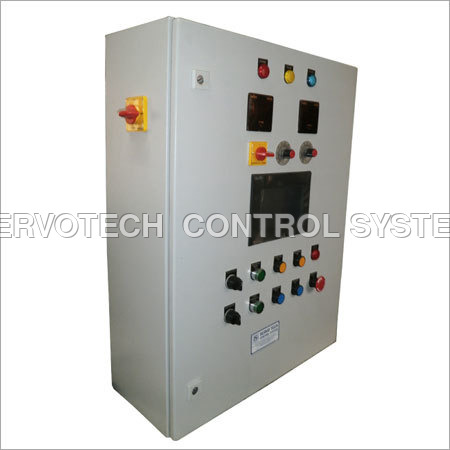

• Other, PLC Logic Control Panel

• Protection Class
• Class I

• Protection Level
• IP55

• Rated Current
• Up to 63A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC 61439-1

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm

• Way
• Single/Multiple Way

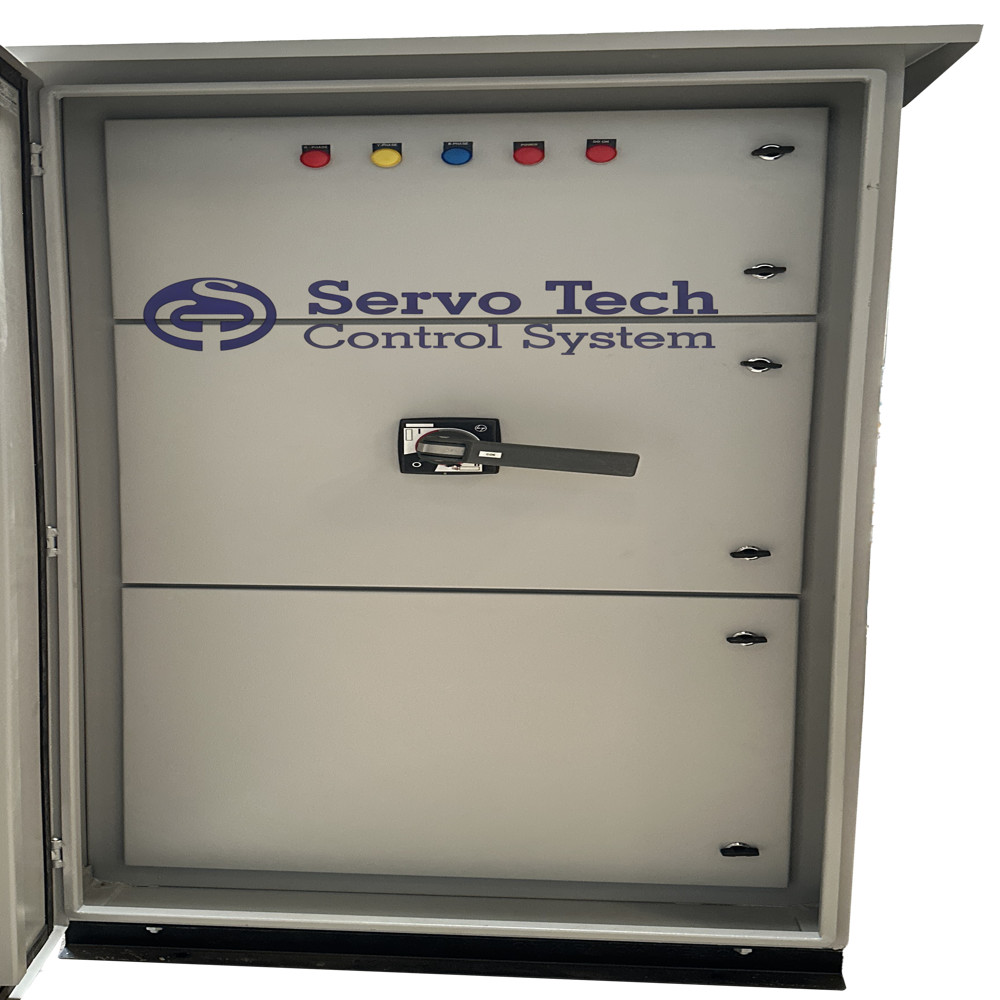

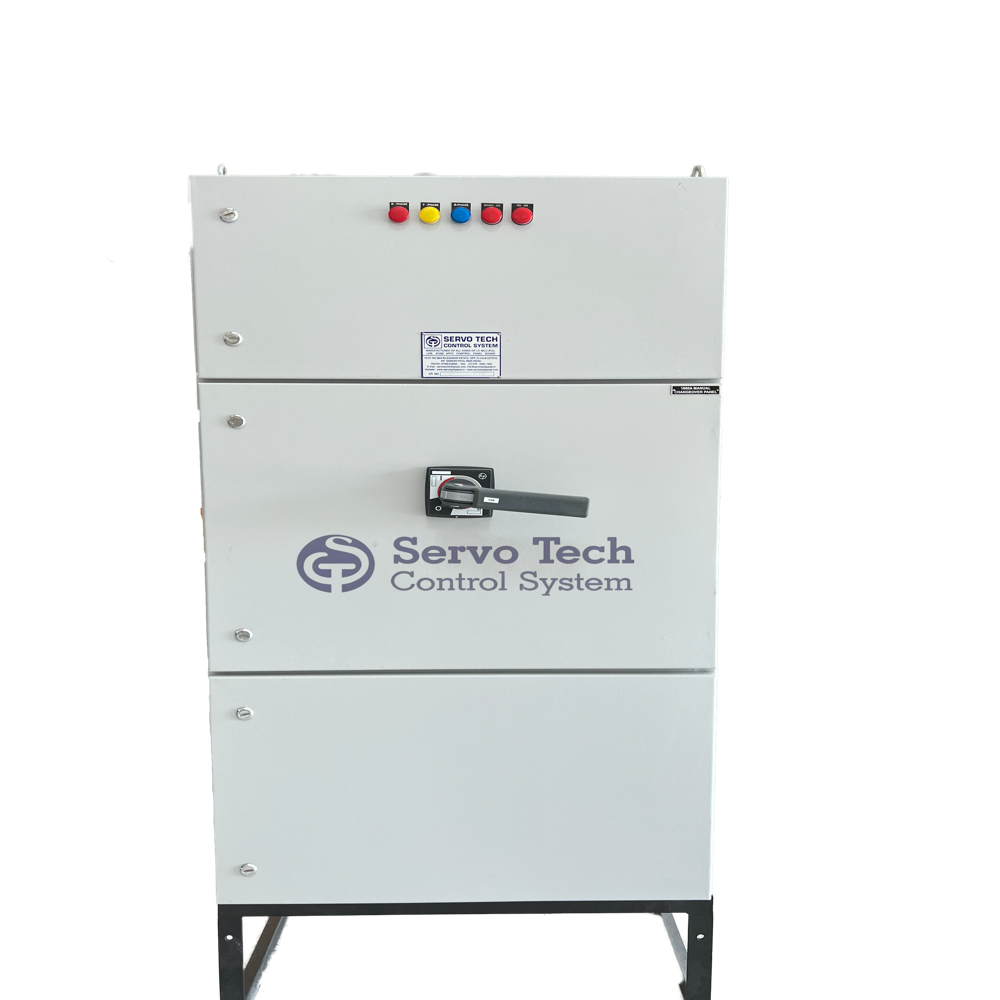

• Application
• Industrial, Commercial, Utility, Generator Changeover

• Base Material
• Other

• Cabinet Material
• Mild Steel

• Components
• Busbars, MCCB/MCB, Relays, Connectors

• Connectivity Type
• Wired

• Control System
• Push Button/Automatic Logic

• Cooling System
• Natural Air Cooled

• Cover Material
• Other, Powder Coated Steel

• Current Rating
• Up to 630A

• Dimension (L*W*H)
• Custom/As per Requirement

• Display Type
• Other, Indicator Lamps/Digital Meters (on request)

• Features
• Robust Construction, Easy Installation, Corrosion Resistant

• Frequency (MHz)
• 50/60 Hz

• Material
• Other

• Maximum Output Current
• 630A

• Operating Voltage
• 415V AC

• Panel Type
• Changeover

• Product Type
• Other, Automatic/Manual Changeover Panel

• Protection Class
• Class 1

• Protection Level
• Other, IP54 / IP55

• Rated Current
• Up to 630A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC 61439 / IS 8623

• Surface Color
• Other, Powder Coated Grey

• Surface Finish
• Other, Matte

• Thickness
• 1.6 mm to 2 mm

• Way
• Double Door / Multi Way

• Application
• Industrial Automation and Process Control

• Base Material
• Mild Steel

• Cabinet Material
• Cold Rolled Steel

• Components
• PLC, SMPS, MCB, Relays, Terminal Blocks, Indicators

• Connectivity Type
• Ethernet, RS485

• Control System
• Automatic / Programmable Logic Control

• Cooling System
• Natural Ventilation with Optional Fans

• Cover Material
• Other, Powder Coated Sheet Metal

• Current Rating
• Up to 63A

• Dimension (L*W*H)
• 800 x 600 x 300 mm

• Display Type
• Other, Digital/LED

• Features
• Compact Design, Easy Installation, Corrosion Resistant, Modular Construction

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Other, Mild Steel, CRCA Sheet

• Maximum Output Current
• 63A

• Operating Voltage
• 230-415V AC

• Panel Type
• Wall / Floor Mounted

• Product Type
• Other, PLC Logic Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• 60A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC 61439 / IS Standards

• Surface Color
• Other, Gray

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm

• Way
• Multiway

• Application
• Industrial Power Distribution & Generator Control

• Base Material
• Mild Steel

• Cabinet Material
• Powder Coated Steel

• Components
• ACB, MCCB, MCB, Relays, Contactors, CT, PT, Indicating Lamps

• Connectivity Type
• Wired

• Control System
• Automatic & Manual

• Cooling System
• Natural Air Cooling/Fan Cooling

• Cover Material
• Other, CRCA Sheet Steel

• Current Rating
• 6300 A

• Dimension (L*W*H)
• As per customer requirement

• Display Type
• Other, Digital/Analog Meters

• Features
• Auto Mains Failure (AMF) function, Synchronization, Remote Monitoring Option, Overload and Short Circuit Protection, Phase Sequence Protection

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP54, IP55

• Material
• Other, High-Quality CRCA Sheet Steel

• Maximum Output Current
• 6300 A

• Operating Voltage
• 380-440 V AC

• Panel Type
• Floor Mounted, Modular

• Product Type
• Other, AMF with PCC Panel

• Protection Class
• Class I

• Protection Level
• Other, IP54/IP55 (Optional)

• Rated Current
• Up to 6300 A

• Rated Insulation Voltage
• 690 V AC

• Rated Operation Voltage
• 415 V AC

• Rated Voltage
• 415 V AC

• Standard
• IEC 61439, IS 8623

• Surface Color
• Other, Siemens Grey (RAL 7032)

• Surface Finish
• Other, Epoxy Powder Coated

• Thickness
• 2 mm

• Way
• Customized (as per design)

• Application
• Industrial/Commercial Power Distribution

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel

• Components
• Busbars, Switchgear, MCB/MCCB, Indicating Lamps, Meters

• Connectivity Type
• Cable/Busbar trunking

• Control System
• Fully Automatic/Manual

• Cooling System
• Natural Air Cooling

• Cover Material
• Mild Steel

• Current Rating
• 2000A

• Dimension (L*W*H)
• Customized as per requirement

• Display Type
• Other, Analog/Digital Meter

• Features
• Rugged construction, Rustproof, Maintenance friendly, Modular design

• Frequency (MHz)
• 50 Hz

• Material
• Other

• Maximum Output Current
• Up to 2000A

• Operating Voltage
• 415V

• Panel Type
• Electrical Distribution Panel

• Product Type
• Other, Bus Coupler Panel

• Protection Class
• Class I

• Protection Level
• Other, IP54 / IP65

• Rated Current
• Up to 2000A

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC 61439 / IS 8623

• Surface Color
• Other, Light Grey / RAL 7035

• Surface Finish
• Powder Coated

• Thickness
• 2 mm

• Way
• Multi-way

• Application
• Industrial Power Distribution

• Base Material
• Mild Steel

• Cabinet Material
• Powder Coated CRCA Sheet

• Components
• MCB, MCCB, ACB, Metering, Relays, Current Transformers, Busbars

• Connectivity Type
• Cable / Bus Duct Entry

• Control System
• Manual / Automatic

• Cooling System
• Natural / Forced Air Cooling

• Cover Material
• Other, Mild Steel with Glass/acrylic Window

• Current Rating
• Up to 6300A

• Dimension (L*W*H)
• Customizable as per requirement

• Display Type
• Other, Analog / Digital Meter

• Features
• Short circuit and overload protection, modular design, easy maintenance

• Frequency (MHz)
• 50 Hz

• Material
• Other

• Maximum Output Current
• Up to 6300A

• Operating Voltage
• 415V AC

• Panel Type
• Floor Mounted

• Product Type
• Other, Power Control Center (PCC) Panel

• Protection Class
• Class 1

• Protection Level
• Other, IP42 / IP54

• Rated Current
• Up to 6300A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IS 8623 / IEC 60439

• Surface Color
• Other, Powder Coated Off-White

• Surface Finish
• Other, Epoxy Powder Coated

• Thickness
• 1.6 - 2.0 mm

• Way
• Multi-Way (as per design)

• Application
• Industrial Automation, Process Control

• Base Material
• Mild Steel

• Cabinet Material
• Powder Coated Steel

• Components
• Push Buttons, Indicators, HMI Touch Display, Digital Meters

• Connectivity Type
• Ethernet, RS485, USB

• Control System
• PLC or Microcontroller Based

• Cooling System
• Natural Ventilation

• Cover Material
• Other, Tempered Glass for HMI Touch Display

• Current Rating
• 8A

• Dimension (L*W*H)
• 500mm x 400mm x 300mm (approx)

• Display Type
• Other, Touch Screen HMI (Color)

• Features
• Modular design, Real-time monitoring, User-friendly interface, Fault Indication

• Frequency (MHz)
• 50-60 Hz

• IP Rating
• Ip54

• Material
• Other, Metal enclosure with polycarbonate display module

• Maximum Output Current
• 10A

• Operating Voltage
• 230V AC

• Panel Type
• Control and Display Panel

• Product Type
• Other, HMI Panel (Human Machine Interface)

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• 8A

• Rated Insulation Voltage
• 400V AC

• Rated Operation Voltage
• 230V AC

• Rated Voltage
• 230V AC

• Standard
• IEC 61131, ISO 9001:2015

• Surface Color
• Other, Light Grey

• Surface Finish
• Powder Coated

• Thickness
• 2 mm enclosure

• Way
• Single Panel

• Application
• DG Set, Commercial Buildings, Industrial Automation

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel, Powder Coated

• Components
• MCB, MCCB, Relays, Contactors, CT/PT, Meters, PLC

• Connectivity Type
• Wired - Hardwired/PLC enabled

• Control System
• Microprocessor based/PLC

• Cooling System
• Natural / Forced Air

• Cover Material
• Other, Steel / Glass (for display section)

• Current Rating
• Up to 6300 Amps

• Dimension (L*W*H)
• Customized

• Display Type
• Other, Analog and Digital Meters

• Features
• Auto/Manual Operation, Alarm Indication, AMF Function, DG Synchronization, Over/Under Voltage Protection, Phase Reversal, Auto Transfer, Generator Monitoring

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42 / IP54 / IP55

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• Up to 6300 Amps

• Operating Voltage
• 415V AC

• Panel Type
• Automatic / Manual Changeover / Synchronization

• Product Type
• Other, Automatic Mains Failure (AMF) Panel / DG Synchronizing Panel

• Protection Class
• Class I

• Protection Level
• Other, IP42 / IP54 / IP55

• Rated Current
• Up to 6300 Amps

• Rated Insulation Voltage
• 660 V

• Rated Operation Voltage
• 230/415 V AC

• Rated Voltage
• 415V AC

• Standard
• IS 8623 / IEC 60439

• Surface Color
• Other, Off White / Powder Coated

• Surface Finish
• Other, Rust proof epoxy powder coating

• Thickness
• 1.6 mm to 2.5 mm

• Way
• As per Customer Requirement

• Application
• Commercial, Industrial, Institutional Lighting Circuits

• Base Material
• Mild Steel

• Cabinet Material
• CRCA Steel Sheet

• Components
• MCBs, MCCBs, RYB Indicator, Voltmeter, Ammeter, Busbars, Neutral Link, Earth Link

• Connectivity Type
• Cable Gland/ Terminal Block

• Control System
• Manual / Automatic

• Cooling System
• Natural / Ventilated

• Cover Material
• Other, Powder Coated Steel / Glass (optional)

• Current Rating
• Up to 630A

• Dimension (L*W*H)
• Customized as per requirement

• Display Type
• Other, Analog / Digital Meters

• Features
• Robust design, Easy wiring & maintenance, High safety & reliability

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42 / IP54 / IP55

• Material
• Other, Mild Steel (MS) / Stainless Steel (SS)

• Maximum Output Current
• Up to 630A

• Operating Voltage
• 415V AC

• Panel Type
• Wall Mounted / Floor Standing

• Product Type
• Other, Lighting Distribution Panel

• Protection Class
• Class I

• Protection Level
• Other, IP42 / IP54 / IP55 (As required)

• Rated Current
• Up to 630A

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IEC 61439 / IS 8623

• Surface Color
• Other, Powder Coated Off-White / RAL as per request

• Surface Finish
• Other, Smooth Powder Coated Finish

• Thickness
• 1.6 mm to 2 mm

• Way
• 4 Way / 6 Way / 8 Way / Custom

• Application
• Power Distribution in Commercial, Industrial, Residential Buildings

• Base Material
• Other

• Cabinet Material
• Powder Coated Mild Steel

• Components
• MCB, MCCB, RCB, Indicator Lamps, Bus Bars, Neutral Link

• Connectivity Type
• Cable Entry - Top/Bottom

• Control System
• Manual / Basic Switchgear

• Cooling System
• Natural Air Cooled

• Cover Material
• Other, Powder Coated Mild Steel

• Current Rating
• 100A - 630A (Configurable)

• Dimension (L*W*H)
• Custom Size (Usually from 900x600x300 mm & upwards)

• Display Type
• Other, Analog/Indicator LEDs

• Features
• Corrosion Resistant, Modular Construction, Custom Wiring, Labelled Switches

• Frequency (MHz)
• 50/60 Hz

• Material
• Other

• Maximum Output Current
• Up to 630A

• Operating Voltage
• 415V AC

• Panel Type
• Wall / Floor Mounted

• Product Type
• Other, Power Distribution Board (Power DB) / Lighting Distribution Board (Lighting DB)

• Protection Class
• Class I

• Protection Level
• Other, IP42 - IP54

• Rated Current
• Up to 630A

• Rated Insulation Voltage
• 690V AC

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IS 8623 / IEC 61439

• Surface Color
• Other, White/Grey (as shown in image)

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm to 2 mm

• Way
• TPN / SPN (Customizable as per requirement)

• Application
• Power Distribution, Power Factor Correction

• Base Material
• Mild Steel

• Cabinet Material
• MS Sheet, Powder Coated

• Components
• MCB, MCCB, ACB, Contactors, Capacitors, Relays, CT, PT

• Connectivity Type
• Bus Bar, Cable Entry (Top/Bottom)

• Control System
• Automatic Power Factor Correction Relay Based

• Cooling System
• Natural Air / Forced Air (Fans)

• Cover Material
• Other, Powder Coated Sheet Metal

• Current Rating
• Up to 6300A

• Dimension (L*W*H)
• Customized as per requirement

• Display Type
• Other, LED Digital Meters

• Features
• Modular Design, Fault Indication, Overload Protection, Energy Monitoring

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42, IP52, IP55 (Optional)

• Material
• Other, CRCA Sheet Steel

• Maximum Output Current
• Up to 6300A

• Operating Voltage
• 415V AC, 3 Phase

• Panel Type
• LT Panel with APFC Compartment

• Product Type
• Other, Main LT Panel with APFC

• Protection Class
• Class I/II

• Protection Level
• Other, IP42 / IP52 / IP55

• Rated Current
• 630A, 1600A, 3200A, 4000A (Customizable)

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IS 8623, IEC 61439

• Surface Color
• Other, RAL 7035 (Light Grey)

• Surface Finish
• Powder Coated

• Thickness
• 1.6mm to 2.5mm

• Way
• Customized (Upto 24 Ways or as required)

• Application
• Industrial Power Distribution

• Base Material
• Other, Mild Steel Sheet

• Cabinet Material
• Mild Steel

• Components
• MCB, MCCB, ACB, CT, PT, Busbar, Meter

• Connectivity Type
• Wired

• Control System
• Automatic / Manual

• Cooling System
• Natural Air / Forced Air

• Cover Material
• Other, Mild Steel Sheet

• Current Rating
• Up to 2500A

• Dimension (L*W*H)
• Customizable

• Display Type
• Other, Analog / Digital Meters

• Features
• Shock Proof, Corrosion Resistant, Easy Installation

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Mild Steel

• Maximum Output Current
• 2500A

• Operating Voltage
• 415V

• Panel Type
• Low Voltage Distribution Panel

• Product Type
• Other, Power Control Center (PCC) Panel

• Protection Class
• Class I

• Protection Level
• Other, IP54 or above

• Rated Current
• 1600A

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IS, IEC

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 2 mm

• Way
• Multiple way

• Application
• Industrial / Commercial Power Management

• Base Material
• Other, Mild Steel Plate

• Cabinet Material
• Mild Steel, CRCA Sheet

• Components
• MCB, MCCB, ACB, Relays, Meters, Contactors, Bus Bar

• Connectivity Type
• Remote Communication (RS485, Modbus)

• Control System
• Automatic / Microprocessor Based Controller

• Cooling System
• Natural Air Cooling / Forced Cooling

• Cover Material
• Other, Powder Coated Steel

• Current Rating
• Upto 3200A

• Dimension (L*W*H)
• As per client requirement / Customizable

• Display Type
• Other, Digital / LED

• Features
• Auto Start/Stop, Auto Load Sharing, Power Factor Correction, Fault Indication

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP54 / IP55

• Material
• Mild Steel

• Maximum Output Current
• Up to 3200A

• Operating Voltage
• 380-440V AC

• Panel Type
• Automatic Synchronizing and AMF Panel

• Product Type
• Other, DG Set Synchronizing and AMF Panel

• Protection Class
• Class I

• Protection Level
• Other, IP42 / IP54 / IP55

• Rated Current
• Up to 3200A

• Rated Insulation Voltage
• 690 V

• Rated Operation Voltage
• 415 V

• Rated Voltage
• 415 V AC

• Standard
• IEC 61439 / IS 8623

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 2 mm to 3 mm

• Way
• Customizable

• Application
• DG & Mains Power Auto Changeover For Industrial/Commercial

• Base Material
• Other

• Cabinet Material
• Powder Coated Sheet Steel

• Components
• Auto/Manual Changeover Switch, MCCBs, Indication Lamps, Digital Meters

• Connectivity Type
• Optional: SCADA Ready/Remote Connection

• Control System
• Microprocessor/Relay Based Control

• Cooling System
• Natural Air/Optional Blower

• Cover Material
• Other, CRCA Sheet, Powder Coated

• Current Rating
• Upto 1600A

• Dimension (L*W*H)
• Customized As Per Requirement

• Display Type
• Other, Digital Display for Parameters

• Features
• Auto Transfer, High Reliability, Safety Locks, Front Accessible, Modular Construction

• Frequency (MHz)
• 50 Hz

• Material
• Other

• Maximum Output Current
• 1600A

• Operating Voltage
• 230-440V AC

• Panel Type
• Floor Mounted

• Product Type
• Other, Auto Changeover Panel

• Protection Class
• Class I

• Protection Level
• Other, Up to IP55

• Rated Current
• Upto 1600A

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IS/IEC 61439-1 & 2, IEC 60439, IS 8623

• Surface Color
• Other, Powder Coated, Off White/Grey

• Surface Finish
• Other, Epoxy Polyester Powder Coated

• Thickness
• 1.6mm-2.0mm (Panel Body)

• Way
• Customized - 4 Way, 6 Way, etc.

• Application
• Power Factor Correction in LT/HT Panels, Industrial & Commercial Installations

• Base Material
• Other

• Cabinet Material
• CRCA Steel with Powder Coating

• Components
• Heavy Duty Capacitors, APFC Relay, MCCB/MCB, Contactors, Fuses, Indicating Lamps

• Connectivity Type
• Hardwired

• Control System
• Automatic (APFC Relay controlled)

• Cooling System
• Natural/Forced Air Cooling

• Cover Material
• Other, Powder Coated Sheet Metal

• Current Rating
• As per design (typically 200A-630A)

• Dimension (L*W*H)
• Customizable as per requirement

• Display Type
• Other, Digital/LED Display

• Features
• Automatic switching, protection against overvoltage/undervoltage, high efficiency

• Frequency (MHz)
• 50 Hz

• Material
• Other

• Maximum Output Current
• As per panel design (typically up to 630A or above)

• Operating Voltage
• 415V AC

• Panel Type
• APFC Panel, Indoor Type

• Product Type
• Other, Automatic Power Factor Correction (APFC) / Capacitor Panel

• Protection Class
• Class 1

• Protection Level
• Other, IP42 / IP52 / IP55 (as required)

• Rated Current
• 200A - 630A (customizable)

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IEC 61439-1 & 2

• Surface Color
• Other, Powder Coated Grey

• Surface Finish
• Other, Smooth Powder Coating

• Thickness
• 1.6mm to 2.0mm

• Way
• Multiple ways, configurable

• Application
• Hazardous Area, Petrochemical, Oil & Gas, Chemical Plant

• Base Material
• Other, Aluminum Alloy

• Cabinet Material
• Aluminum Alloy

• Components
• Terminal Blocks, Cable Glands, Mounting Plate

• Connectivity Type
• Gland Entry

• Control System
• Manual / Automatic

• Cooling System
• Natural Air Cooled

• Cover Material
• Other, Aluminum Alloy

• Current Rating
• Up to 63 A

• Dimension (L*W*H)
• Custom/As per requirement

• Display Type
• Other, Window for Reading

• Features
• Corrosion Resistant, Robust Design, Weather Proof

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP65

• Material
• Other, Cast Aluminum Alloy

• Maximum Output Current
• 63 A

• Operating Voltage
• 415 V

• Panel Type
• Electrical Control Panel

• Product Type
• Other, Flame Proof Panel Box

• Protection Class
• Zone 1 & 2, IIA IIB, C

• Protection Level
• Other, Flame Proof, Explosion Proof

• Rated Current
• Up to 63 A

• Rated Insulation Voltage
• 660 V

• Rated Operation Voltage
• 415 V AC

• Rated Voltage
• 415 V AC

• Standard
• IS/IEC 60079-1:2007

• Surface Color
• Other, Gray

• Surface Finish
• Powder Coated

• Thickness
• 5-8 mm

• Way
• Multi Way

• Application
• Power Distribution in Industrial, Commercial and Infrastructure Sectors

• Base Material
• Other, CRCA Sheet Steel

• Cabinet Material
• MS Powder Coated

• Components
• MCB, MCCB, Relays, CTs, Meters

• Connectivity Type
• Cable Entry Top/Bottom

• Control System
• Manual / Automatic

• Cooling System
• Natural Air Cooled / Forced Ventilation

• Cover Material
• Other, Powder Coated MS

• Current Rating
• Up to 6300A

• Dimension (L*W*H)
• As per requirement / Custom-built

• Display Type
• Other, Analog & Digital Meters

• Features
• Rugged Construction, Corrosion Resistant, Easy Maintenance

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42 / IP54 (optional)

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• Up to 6300A

• Operating Voltage
• 415V AC

• Panel Type
• Floor Mounted

• Product Type
• Other, Main LT (Low Tension) Panel

• Protection Class
• Class I

• Protection Level
• Other, High

• Rated Current
• Up to 6300A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IEC 61439 / IS 8623

• Surface Color
• Other, Powder Coated Grey

• Surface Finish
• Other, Matte Finish

• Thickness
• 2 mm

• Way
• Multiple (Customizable)

• Application
• Industrial power distribution

• Base Material
• Mild Steel

• Cabinet Material
• Sheet metal with powder coating

• Components
• MCBs, sockets, indicator lamps, ELCB

• Connectivity Type
• Panel mount sockets / terminations

• Control System
• Manual

• Cooling System
• Natural air cooling

• Cover Material
• Other, Mild steel / Sheet metal

• Current Rating
• 32A/63A/125A

• Dimension (L*W*H)
• 900x600x400 mm (customizable)

• Display Type
• Other, LED Indicators

• Features
• Weatherproof, lockable, custom socket configuration

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Other, Powder coated steel

• Maximum Output Current
• 125A

• Operating Voltage
• 230/415V AC

• Panel Type
• Outdoor/Indoor Plug Distribution Panel

• Product Type
• Other, Plug Distribution Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• 32A/63A/125A (as per socket type)

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC 61439 / IS standards

• Surface Color
• Other, Grey

• Surface Finish
• Other, Corrosion resistant powder coated

• Thickness
• 2 mm

• Way
• Multiple ways (as per customer requirement)

• Application
• Industrial Automation, Power Distribution, Motor Control

• Base Material
• Other, Sheet Metal

• Cabinet Material
• Mild Steel Sheet

• Components
• Push buttons, Indicator Lights, Rotary Switches, Digital Controller, MCBs

• Connectivity Type
• Wired (Terminal blocks inside)

• Control System
• Manual/Electronic relay based

• Cooling System
• Natural/Ventilated

• Cover Material
• Other, Sheet Metal / Glass Window (optional)

• Current Rating
• Configurable

• Dimension (L*W*H)
• Custom/As per client requirement

• Display Type
• Other, Digital LED Display

• Features
• Custom Configuration, Rugged Design, Easy Installation

• Frequency (MHz)
• 50 Hz (Standard for Electrical Panels)

• IP Rating
• Ip54

• Material
• Other, Metal Sheet (Possibly MS or CRCA Steel)

• Maximum Output Current
• Customized as per requirement

• Operating Voltage
• 415 V AC

• Panel Type
• Control Panel

• Product Type
• Other, Customize Panel

• Protection Class
• Class I, Earthed

• Protection Level
• Other, IP54 (Standard for such control panels, can be upgraded)

• Rated Current
• As per design (can be customized)

• Rated Insulation Voltage
• 660 V

• Rated Operation Voltage
• 415 V AC

• Rated Voltage
• 415 V AC

• Standard
• Custom / As per requirement

• Surface Color
• Other, Grey Finish

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm/2.0 mm (Typical)

• Way
• Multiple way (customizable)

• Application
• Industrial Motor Starters

• Base Material
• Other

• Cabinet Material
• Mild Steel

• Components
• Contactor, Overload Relay, MCB, Indicators, Push Buttons

• Connectivity Type
• Hardwired

• Control System
• Manual/Automatic

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, Mild Steel Sheet

• Current Rating
• 16A-32A

• Dimension (L*W*H)
• Custom, e.g., 600x500x250 mm

• Display Type
• Other, LED Indicator/Analog Window

• Features
• Sturdy Build, Corrosion Resistant, Easy Installation

• Frequency (MHz)
• 50 Hz

• Material
• Other

• Maximum Output Current
• 32A

• Operating Voltage
• 380-440V AC

• Panel Type
• Wall Mounted/Floor Mounted

• Product Type
• Other, DOL Starter Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• Up to 32A

• Rated Insulation Voltage
• 690V AC

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IEC 60947 / IS Standards

• Surface Color
• Other, Powder Coated Grey

• Surface Finish
• Other, Matte / Powder Coated

• Thickness
• 1.6 mm to 2 mm

• Way
• Single / Multiple

• Application
• Industrial Automation, Power Distribution

• Base Material
• Other, Mild Steel Sheet

• Cabinet Material
• Mild Steel

• Components
• MCB, MCCB, Contactors, Relays, Digital Meters

• Connectivity Type
• Wired

• Control System
• Manual/Automatic

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, Powder Coated Steel

• Current Rating
• Up to 200A

• Dimension (L*W*H)
• As per requirement

• Display Type
• Other, Digital Meter & Indicators

• Features
• Modular design, Easy Installation, Durable Build

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 200A

• Operating Voltage
• 380-440V

• Panel Type
• Distribution/Control Panel

• Product Type
• Other, Electrical Customize Control Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• Up to 200A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC 61439 / As per Client Specification

• Surface Color
• Other, Beige / Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6mm-2.5mm

• Way
• Multi-way

• Application
• Industrial Motor Control, Pumps, HVAC, Conveyors

• Base Material
• Mild Steel

• Cabinet Material
• CRCA Steel

• Components
• MCB, MCCB, Contactors, Relays, VFD Drives

• Connectivity Type
• Wired/RS485/Ethernet

• Control System
• Manual / Auto (PLC Compatible)

• Cooling System
• Ventilation Fans / Natural Air Cooling

• Cover Material
• Other, Polycarbonate / Powder Coated MS

• Current Rating
• Up to 630 A

• Dimension (L*W*H)
• Customizable as per requirement

• Display Type
• Other, LCD/LED Indication

• Features
• Modular construction, Easy maintenance, Corrosion resistant

• Frequency (MHz)
• 50/60 Hz

• Material
• Other

• Maximum Output Current
• 400 A

• Operating Voltage
• 415 V AC

• Panel Type
• Floor Mounted

• Product Type
• Other, VFD Panel / MCC Panel

• Protection Class
• Class 1

• Protection Level
• Other, IP42 / IP54

• Rated Current
• Up to 630 A

• Rated Insulation Voltage
• 690 V AC

• Rated Operation Voltage
• 415 V AC

• Rated Voltage
• 415 V AC

• Standard
• IEC 61439, IS 8623

• Surface Color
• Other, RAL 7035 (Grey)

• Surface Finish
• Powder Coated

• Thickness
• 2.0 mm

• Way
• Multiple Ways (Configurable)

• Application
• Industrial and Commercial Electrical Distribution

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel

• Components
• MCB, MCCB, Busbar, Indicating Lamps, Volt/Amp Meter, Terminal Blocks

• Connectivity Type
• Panel Mounted Wiring

• Control System
• Manual Switchgear Operation

• Cooling System
• Natural Air Ventilation

• Cover Material
• Other, Powder Coated Steel

• Current Rating
• Up to 630A

• Dimension (L*W*H)
• Customized as per requirement

• Display Type
• Other, Analog/LED Indicators

• Features
• Shock Proof, Rust Resistant, Modular Design

• Frequency (MHz)
• 50 Hz

• Material
• Other

• Maximum Output Current
• 630A

• Operating Voltage
• 415V AC

• Panel Type
• Power and Lighting Distribution Panel

• Product Type
• Other, Distribution Board Panel

• Protection Class
• Class I

• Protection Level
• Other, IP42 / IP54

• Rated Current
• Up to 630A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC 61439 / IS 8623

• Surface Color
• Other, Powder Coated Grey

• Surface Finish
• Other, Epoxy Powder Coated

• Thickness
• 1.6mm - 2.0mm

• Way
• Double Door - Multiple Ways

• Application
• Industrial, Commercial, Power Utilities

• Base Material
• Other, CRCA Sheet Steel

• Cabinet Material
• Sheet Metal, Powder Coated

• Components
• Contactors, Capacitors, PF Relay, Circuit Breakers, Switches

• Connectivity Type
• Wired

• Control System
• Microprocessor based / Intelligent PF relay

• Cooling System
• Natural Air / Forced Air Cooling (Optional)

• Cover Material
• Other, Powder Coated Steel

• Current Rating
• Subject to design (typically 100A to 6300A)

• Dimension (L*W*H)
• Customized as per client requirement

• Display Type
• Other, Digital / LED / LCD

• Features
• Automatic, Programmable, User Friendly Interface, Low Maintenance

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42, IP54 (Customizable)

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• Up to 6300A (Configurable as per requirement)

• Operating Voltage
• 415V AC, 3 Phase

• Panel Type
• Floor Mounted / Indoor

• Product Type
• Other, Automatic Power Factor Correction (APFC) Panel

• Protection Class
• Class I

• Protection Level
• Other, Overload, Short-Circuit, Earth Fault

• Rated Current
• Up to 6300A

• Rated Insulation Voltage
• Up to 1000V AC

• Rated Operation Voltage
• Up to 690V AC

• Rated Voltage
• 415V AC

• Standard
• IEC 61439 / IS 8623

• Surface Color
• Other, Powder Coated (Beige or Gray)

• Surface Finish
• Other, Smooth, Powder Coated

• Thickness
• 2 mm (Cabinet)

• Way
• 3 Phase

• Application
• Industrial Automation, Power Distribution

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel

• Components
• MCBs, Indicating Lights, Digital Meter, Switches

• Connectivity Type
• Terminal Block, Cable Entry

• Control System
• Manual/Automatic

• Cooling System
• Natural Air Ventilation

• Cover Material
• Other, Powder Coated Mild Steel

• Current Rating
• 63A

• Dimension (L*W*H)
• 600 x 500 x 250 mm (Customizable)

• Display Type
• Other, Digital/Analog

• Features
• High Durability, Corrosion Resistant, Easy Installation

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Other, Powder Coated Metal Sheet

• Maximum Output Current
• 63A

• Operating Voltage
• 415V

• Panel Type
• Floor/Wall Mounted Panel

• Product Type
• Other, Customized Electrical Control Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• Up to 63A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC Standards Compliant

• Surface Color
• White

• Surface Finish
• Other, Matt/Glossy

• Thickness
• 1.6 mm to 2.5 mm

• Way
• Multi-way

• Application
• Industrial and Construction Site Power Distribution

• Base Material
• Other, CRCA Sheet

• Cabinet Material
• Powder Coated Sheet Metal

• Components
• MCBs, 3-pin Industrial Sockets, Indicator Lamp

• Connectivity Type
• Wired Type

• Control System
• Manual Switch Control

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, Transparent Polycarbonate/Sheet Metal

• Current Rating
• 32A (each outlet)

• Dimension (L*W*H)
• 600 mm x 400 mm x 200 mm (approx)

• Features
• Portable, Lockable Door, Quick Installation

• Frequency (MHz)
• 50/60 Hz

• IP Rating
• Ip44

• Material
• Other, Sheet metal

• Maximum Output Current
• 32A

• Operating Voltage
• 415V AC

• Panel Type
• Double Door

• Product Type
• Other, Plug DB Panel

• Protection Class
• Class I

• Protection Level
• Other, IP44

• Rated Current
• 32A per socket

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IS/IEC standard

• Surface Color
• Other, Grey and Blue

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm

• Way
• 4-way

• Application
• Industrial Power Distribution

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel

• Components
• MCB, MCCB, Contactor, Relays, Indicating Lamps, Bus Bars, Metering Instruments

• Connectivity Type
• Hardwired

• Control System
• Manual / Automatic

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, Mild Steel with Powder Coating

• Current Rating
• Up to 2000A

• Dimension (L*W*H)
• Customizable as per requirement

• Display Type
• Other, Analog / Digital Meters

• Features
• Corrosion Resistant, Durable, Easy Installation

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42 / IP54

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• Up to 2000A

• Operating Voltage
• 415V AC

• Panel Type
• Modular, Floor Mounted

• Product Type
• Other, MCC Panel / Distribution Panel

• Protection Class
• Class I

• Protection Level
• Other, IP42 / IP54

• Rated Current
• 630A - 2000A

• Rated Insulation Voltage
• 690V AC

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IEC 61439, IS 8623

• Surface Color
• Other, Powder Coated Grey

• Surface Finish
• Other, Matte Powder Coated

• Thickness
• 1.6 mm - 2 mm

• Way
• Multi-way

• Application
• Industrial Power Distribution

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel

• Components
• MCB, MCCB, ACB, Relays, Meters, Indicators

• Connectivity Type
• Wired

• Control System
• Manual/Automatic

• Cooling System
• Air Cooled

• Cover Material
• Other, Mild Steel Sheet

• Current Rating
• Up to 6300A

• Dimension (L*W*H)
• Customized as per requirement

• Display Type
• Other, Digital (Optional)

• Features
• Corrosion Resistance, Dust Proof, High Durability

• Frequency (MHz)
• 50 Hz

• Material
• Other

• Maximum Output Current
• 6300A

• Operating Voltage
• 415V AC

• Panel Type
• Floor Mounted

• Product Type
• Other, Main PCC Panel (Power Control Center)

• Protection Class
• Class I

• Protection Level
• Other, Up to IP55

• Rated Current
• 200A - 6300A

• Rated Insulation Voltage
• 690V AC

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IEC 61439 / IS 8623

• Surface Color
• Other, Light Grey

• Surface Finish
• Powder Coated

• Thickness
• 2 mm - 3 mm

• Way
• Customized

• Application
• Automatic power transfer and synchronization for DG and mains supply

• Base Material
• Other, CRCA Sheet Steel

• Cabinet Material
• High Quality CRCA Steel

• Components
• Microprocessor based controller, meters, indicators, circuit breakers

• Connectivity Type
• Panel mounted, Wired

• Control System
• Automated Control with manual override

• Cooling System
• Natural Air Cooled / Optional Forced Cooling

• Cover Material
• Other, Powder Coated Sheet Metal

• Current Rating
• Up to 3200A

• Dimension (L*W*H)
• As per design requirement

• Display Type
• Other, Digital meters/display with indicators

• Features
• Automatic load sharing, auto/manual mode, generator and mains supply interlocking

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42/IP54

• Material
• Other, Mild Steel (MS) Sheet

• Maximum Output Current
• As per customer requirement (commonly 250A-3200A)

• Operating Voltage
• 415V AC

• Panel Type
• Synchronized/AMF (Auto Mains Failure)

• Product Type
• Other, DG Synchronized or AMF Panel

• Protection Class
• Class 1

• Protection Level
• Other, IP42, IP52, IP54 (options)

• Rated Current
• Up to 3200A

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• Conforms to IS/IEC standards

• Surface Color
• Other, Ivory/Off-white

• Surface Finish
• Powder Coated

• Thickness
• 2.0 mm - 2.5 mm

• Way
• Customized as per project

• Application
• Industrial Power Distribution

• Base Material
• Other

• Cabinet Material
• CRCA Sheet Steel

• Components
• Busbars, MCBs, MCCBs, Relays, CTs, PTs, Terminal Blocks

• Connectivity Type
• Hard Wired

• Control System
• Automatic / Manual

• Cooling System
• Natural Air / Forced Fan Cooling

• Cover Material
• Other, CRCA Steel (Powder Coated)

• Current Rating
• Up to 6300A

• Dimension (L*W*H)
• Customized as per requirement

• Display Type
• Other, Analog / Digital Metering

• Features
• Sturdy Construction, Compact Design, Easy Maintenance, High Breaking Capacity

• Frequency (MHz)
• 50 Hz

• Material
• Other

• Maximum Output Current
• Up to 6300A

• Operating Voltage
• 415V

• Panel Type
• Modular Metal Enclosure

• Product Type
• Other, Power Distribution Board Panel

• Protection Class
• Class I

• Protection Level
• Other, Up to IP65

• Rated Current
• Up to 6300A

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IEC 61439 / IS 8623

• Surface Color
• Other, Powder Coated Grey

• Surface Finish
• Other, Epoxy Powder Coated

• Thickness
• 1.6 mm to 2.5 mm

• Way
• Customized (Up to 24 Way or as required)

• Application
• Industrial power distribution, temporary power supply for events/construction

• Base Material
• Mild Steel

• Cabinet Material
• Powder coated steel

• Components
• MCBs, 2x industrial plug sockets, busbar

• Connectivity Type
• Hardwired terminal connections and socket outlets

• Control System
• MCB protection

• Cooling System
• Natural air ventilation

• Cover Material
• Other, Mild steel with powder coating

• Current Rating
• 16A & 32A dual outlet

• Dimension (L*W*H)
• Approx. 400x350x200 mm (to be confirmed from datasheet)

• Features
• Padlockable, easy wall mounting, segregated neutral/earth terminals

• Frequency (MHz)
• 50/60 Hz

• IP Rating
• Ip54

• Material
• Other

• Maximum Output Current
• 32A (based on visible sockets)

• Operating Voltage
• 220-240V AC

• Panel Type
• Surface-mounted PLU socket panel

• Product Type
• Other, PLU Socket Panel / Distribution Board

• Protection Class
• Class I

• Protection Level
• Other, IP54 (assuming outdoor/industrial use)

• Rated Current
• 16A / 32A (based on the sockets and breakers present)

• Rated Insulation Voltage
• 660V AC (typical for such enclosures)

• Rated Operation Voltage
• 230V-240V AC

• Rated Voltage
• 220-240V AC

• Standard
• IEC/IS standards applicable (manufacturer specific)

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.2 mm (typical for steel electrical enclosures)

• Way
• 8 Way (visible as 8 individual MCBs)

• Application
• Industrial, Laboratory & Workshop power distribution

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel with powder coat finish

• Components
• Industrial switch sockets, MCB/fuse, LED indicators

• Connectivity Type
• Wired plugs and sockets

• Control System
• Manual

• Cooling System
• Natural air cooled

• Cover Material
• Other, Powder-coated steel

• Current Rating
• 32A

• Dimension (L*W*H)
• 600mm x 450mm x 220mm (panel only; with stand as per image)

• Display Type
• Other, LED indicators

• Features
• Rugged design, easy access, multiple power outputs, overload protection

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip44

• Material
• Other, Powder-coated metal body with metal legs

• Maximum Output Current
• 32A

• Operating Voltage
• 220-240V AC

• Panel Type
• Distribution / Plug Socket Panel

• Product Type
• Other, Plug Socket Panel

• Protection Class
• Class I

• Protection Level
• Other, IP44 (splash-proof for indoor industrial use)

• Rated Current
• 32A

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 230V AC

• Rated Voltage
• 230V AC

• Standard
• IS compliant

• Surface Color
• Other, Ivory/Off-white

• Surface Finish
• Other, Smooth powder coat finish

• Thickness
• 1.5 mm (approx)

• Way
• Multi-way (8 Sockets)

• Application
• Fire Pump Room Control

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel

• Components
• MCB, Relay, Indicator Lamps, Push Buttons, Ammeter, Voltmeter

• Connectivity Type
• Hardwired

• Control System
• Manual/Automatic Selection

• Cooling System
• Natural Air Cooled

• Cover Material
• Other, Powder Coated Steel

• Current Rating
• Up to 63A

• Dimension (L*W*H)
• 1800 x 600 x 400 mm (Approx.)

• Display Type
• Other, Analog Meters

• Features
• Corrosion Resistant, Flame Resistant, Sturdy Construction

• Frequency (MHz)
• 50 Hz

• IP Rating
• Ip54

• Material
• Other, Steel

• Maximum Output Current
• 63A

• Operating Voltage
• 415V AC

• Panel Type
• Floor Mounted

• Product Type
• Other, Fire Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• Up to 63A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IS/IEC Standard (As per fire panel norms)

• Surface Color
• Red

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm

• Way
• 3 Way

• Application
• Industrial, Commercial, Institutional Electrical Distribution

• Base Material
• Other, CRCA Sheet Steel

• Cabinet Material
• CRCA Sheet Metal

• Components
• MCB, MCCB, RCCB, Indicators, Ammeter, Voltmeter, Busbars, Terminal Blocks

• Connectivity Type
• Panel Mounted Terminals/Busbars

• Control System
• Manual / Automatic (As per design)

• Cooling System
• Natural Air Ventilation / Optional Forced Air

• Cover Material
• Other, CRCA Sheet / Powder Coated Material

• Current Rating
• Up to 6300 Amps

• Dimension (L*W*H)
• Customized as per requirement

• Display Type
• Other, Analog / Digital Meter

• Features
• Corrosion Resistant, Easy Installation, Modularity, High Durability

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42/IP54/IP65 (Dependent on the model)

• Material
• Other, Metal (Mild Steel / CRCA Sheet)

• Maximum Output Current
• Up to 6300A

• Operating Voltage
• 220V/415V AC

• Panel Type
• Floor Mounted / Wall Mounted

• Product Type
• Other, Distribution Board Panel (DB Panel)

• Protection Class
• Class I

• Protection Level
• Other, IP42/IP54/IP65 (as per model)

• Rated Current
• As per module (up to 6300A)

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC 61439 / IS 8623

• Surface Color
• Other, Powder Coated Grey

• Surface Finish
• Other, Epoxy Powder Coated

• Thickness
• 1.6mm to 2.0mm

• Way
• Multiple ways available (up to 12/24 ways or customized)

• Application
• Industrial, Commercial, Power Distribution

• Base Material
• Mild Steel

• Cabinet Material
• MS Sheet Metal, Powder Coated

• Components
• MCB, Changeover Switch, Indicator Lamps, Bus Bar

• Connectivity Type
• Cable Entry Top/Bottom

• Control System
• Manual Operation

• Cooling System
• Natural Air Cooling

• Cover Material
• Other, Powder Coated Sheet Metal

• Current Rating
• 16A to 630A

• Dimension (L*W*H)
• Customized, Standard: 500mm x 350mm x 180mm

• Display Type
• Other, LED Indicator

• Features
• Corrosion Resistant, Easy Operation, High Durability

• Frequency (MHz)
• 50 Hz

• Material
• Other

• Maximum Output Current
• Up to 630A

• Operating Voltage
• 415V

• Panel Type
• Wall/Floor Mounted

• Product Type
• Other, Manual Change Over Panel

• Protection Class
• Class I

• Protection Level
• Other, IP42

• Rated Current
• 16A-630A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IS/IEC 60947-3

• Surface Color
• White

• Surface Finish
• Powder Coated

• Thickness
• 1.6mm to 2mm

• Way
• 2 Way

• Application
• Industrial Power Distribution & Power Factor Correction

• Base Material
• Other

• Cabinet Material
• CRCA Sheet Steel

• Components
• MCB, MCCB, ACB, Capacitor Banks, Contactors, Relays

• Connectivity Type
• Wired

• Control System
• Microprocessor/PLC based control

• Cooling System
• Natural/Forced Air Cooling

• Cover Material
• Other, Sheet Metal with Powder Coating

• Current Rating
• Upto 2500A

• Dimension (L*W*H)
• Customizable as per requirement

• Display Type
• Other, Digital Meter/LED Indicator

• Features
• Modular Design, Easy Maintenance, Auto/Manual APFC, Overload & Short Circuit Protection

• Frequency (MHz)
• 50 Hz

• Material
• Other

• Maximum Output Current
• 2500A

• Operating Voltage
• 415V

• Panel Type
• Floor Mounted

• Product Type
• Other, PCC with APFC Panel

• Protection Class
• Class I

• Protection Level
• Other, IP42 / IP54

• Rated Current
• Upto 2500A

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IEC 61439, IS 8623

• Surface Color
• Other, Siemens Grey (RAL 7032)

• Surface Finish
• Powder Coated

• Thickness
• 2 mm

• Way
• Multiple Ways/Sections

• Application
• Industrial/Commercial Electrical Automation

• Base Material
• Other, Powder Coated Mild Steel

• Cabinet Material
• MS Sheet

• Components
• MCB, RYB Indicator, Push Buttons, Selector Switches

• Connectivity Type
• Wired Terminal

• Control System
• Manual/Automatic

• Cooling System
• Natural Air Vented

• Cover Material
• Other, Transparent Acrylic/Polycarbonate Window

• Current Rating
• Up to 100A

• Dimension (L*W*H)
• 600 mm x 500 mm x 200 mm (Customizable)

• Display Type
• Other, LED Indicator Lights

• Features
• Customized Design, High Durability, Corrosion Resistant, Easy Installation

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP55

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 100A

• Operating Voltage
• 415V AC

• Panel Type
• Wall Mount

• Product Type
• Other, Customized Electrical Control Panel

• Protection Class
• Class I

• Protection Level
• IP55

• Rated Current
• Up to 100A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC/IS Standards

• Surface Color
• Other, Powder Coated Grey

• Surface Finish
• Other, Smooth Finish

• Thickness
• 1.6 mm

• Way
• Multi-way (As per customer requirement)

• Application
• Industrial, Commercial, Distribution Automation

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel Sheet

• Components
• MCBs, MCCBs, Indication Lamps, Control Switches, Bus Bars

• Connectivity Type
• Hardwired

• Control System
• Manual/Auto

• Cooling System
• Natural Air Cooling / Optional Fan

• Cover Material
• Other, Powder Coated Steel

• Current Rating
• up to 2000A

• Dimension (L*W*H)
• As per requirement/customized

• Display Type
• Other, Analog meters, Digital Display (optional)

• Features
• Corrosion Resistant, Rugged Design, Dust Proof

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP54 / IP55

• Material
• Other, Mild Steel / CRCA Steel

• Maximum Output Current
• 600A

• Operating Voltage
• 415V AC

• Panel Type
• Floor Mounted

• Product Type
• Other, Power Distribution Panel

• Protection Class
• Class I

• Protection Level
• Other, IP54 / IP55

• Rated Current
• 100A - 2000A

• Rated Insulation Voltage
• 660V AC

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IS 8623, IEC 61439

• Surface Color
• Other, Powder Coated Grey

• Surface Finish
• Other, Matte/Glossy Powder Coating

• Thickness
• 1.6mm - 2.0mm

• Way
• Customized (4/6/8/12 way, etc.)
