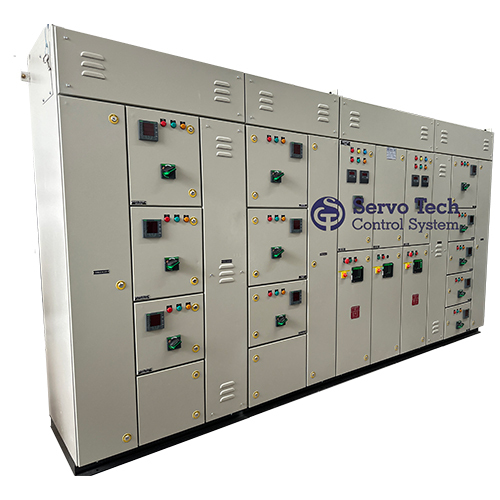

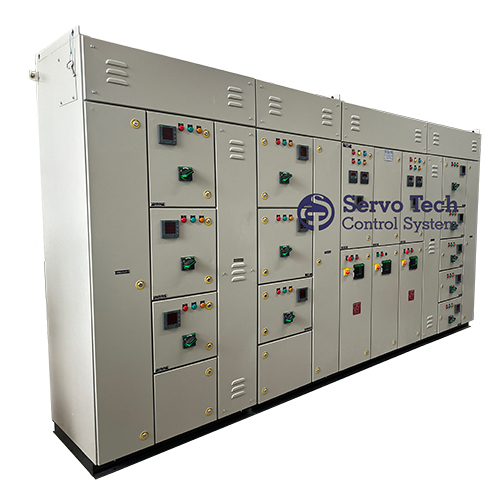

Bus Coupler Panel

Name: Bus Coupler Panel
Brand: SERVO TECH CONTROL SYSTEM
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Bus Coupler Panel Specification

Rated Insulation Voltage
660V

Protection Class
Class I

Cabinet Material
Mild Steel

Protection Level
IP54 / IP65

Way
Multi-way

Operating Voltage
415V

Cover Material
Mild Steel

Components
Busbars, Switchgear, MCB/MCCB, Indicating Lamps, Meters

Base Material
Mild Steel

Cooling System
Natural Air Cooling

Rated Operation Voltage
415V

Current Rating
2000A

Rated Current
Up to 2000A

Connectivity Type
Cable/Busbar trunking

Thickness
2 mm

Features
Rugged construction, Rustproof, Maintenance friendly, Modular design

Control System
Fully Automatic/Manual

Panel Type
Electrical Distribution Panel

Product Type
Bus Coupler Panel

Material
Other

Surface Finish
Powder Coated

Standard
IEC 61439 / IS 8623

Surface Color
Light Grey / RAL 7035

Rated Voltage
415V AC

Frequency (MHz)
50 Hz

Maximum Output Current
Up to 2000A

Dimension (L*W*H)
Customized as per requirement

Application
Industrial/Commercial Power Distribution

Display Type
Analog/Digital Meter

Mounting Type
Floor Mounted

Paint Type
Epoxy Powder Coating

Testing
Routine and Type tested as per standards

Door Type
Double door with gasket sealing

Accessories
Cable glands, gland plate, name plates

Panel Orientation
Vertical / Horizontal Layout (as per site requirement)

Operating Temperature Range
-10C to +55C

Busbar Material
High conductivity Copper/Aluminum

Earthing
Copper strip provided for effective earthing

Wiring
ISI certified copper wires, Ferruled and color coded

Ambient Humidity
Max 95% non-condensing

Interlocking
Mechanical and Electrical Interlocking Provided

Degree of Protection
Upto IP65

Short Circuit Withstand Capacity
Up to 50kA for 1 sec

Bus Coupler Panel Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

About Bus Coupler Panel

Embrace unrivaled efficiency with our BUs Coupler Panel, crafted from wondrous high conductivity copper or aluminum busbars. This redoubtable electrical distribution solution delivers instant savings with rugged, rustproof construction and powder-coated mild steel exteriors. Procure class-leading safety with a protection rating up to IP65, mechanical and electrical interlocking, and 50kA short-circuit withstand capacity. The double-door, gasket-sealed panel features ISI-certified wiring, routine and type tested to IEC 61439/IS 8623 standards. Pick Yours today and enjoy the reliability and flexibility of customizable dimensions and modular design for seamless industrial or commercial power management.

Versatile Usage & Applications of BUs Coupler Panel

The BUs Coupler Panel is engineered for redoubtable usage in demanding industrial or commercial environments. Designed for both heavy-duty and maintenance-friendly applications, it excels in power distribution systems requiring modularity and reliability. Its multi-way wiring and robust earthing make it a wondrous solution for continuous operations. Whether supporting primary switchboards, process industries, or high-rise buildings, this panel is suitable for nationwide deployment, tailored to specific site requirements for optimal flexibility and safety.

Export Excellence, Sample Policy & Fast Delivery

Our BUs Coupler Panel reflects a strong market value, reaching prominent export destinations through efficient transport services. Manufacturers and suppliers maintain stock ready to expedite orders, with flexible sample policies available for client satisfaction. We prioritize timely delivery, minimizing lead time to ensure seamless integration into your power distribution network. Conforming to global standards has strengthened our presence in diverse markets, establishing us as a reliable partner for international and domestic buyers alike.

FAQ's of BUs Coupler Panel:

Q: How does the BUs Coupler Panel benefit my industrial power distribution?

A: The panel offers unrivaled reliability and safety with high conductivity busbars, robust earthing, modular design, and protection levels up to IP65, making it ideal for industrial and commercial power distribution.

Q: What materials and safety features are included in the BUs Coupler Panel?

A: The panel is constructed from epoxy powder-coated mild steel with copper or aluminum busbars. It incorporates mechanical and electrical interlocking, gasket-sealed double doors, up to 50kA short-circuit withstand, and effective earthing for superior safety.

Q: When should I choose a floor-mounted BUs Coupler Panel with a double door?

A: Opt for this solution when you require enhanced accessibility, robust construction, and superior protection in applications that demand frequent inspection or maintenance in harsh environments.

Q: Where can the BUs Coupler Panel be installed?

A: It is suitable for installation in industrial facilities, commercial buildings, process industries, and large infrastructure projects where secure and efficient power distribution is critical.

Q: What is the process for customizing the panel dimensions and layout?

A: Dimensions and layouts are tailored as per site requirements. After initial technical consultation, precise measurements and specifications are confirmed for fabrication and deployment, ensuring a perfect fit for your power network.
