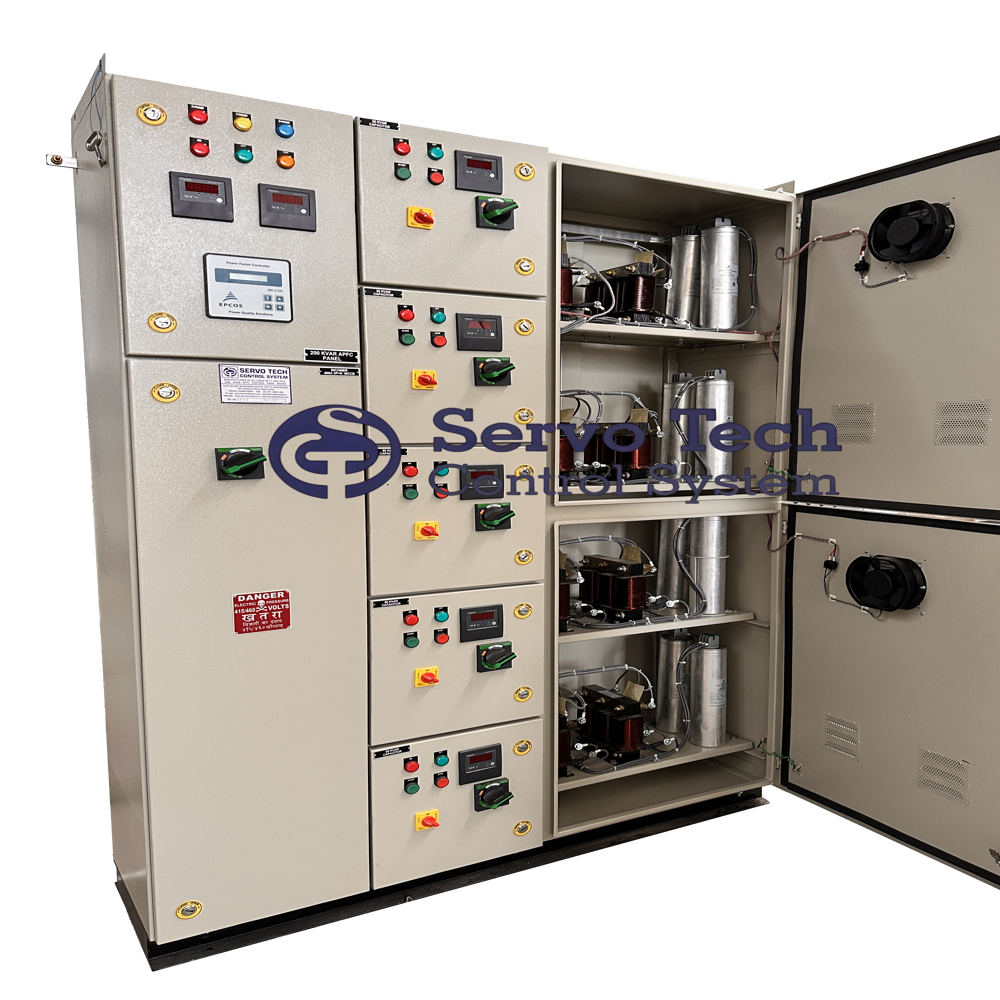

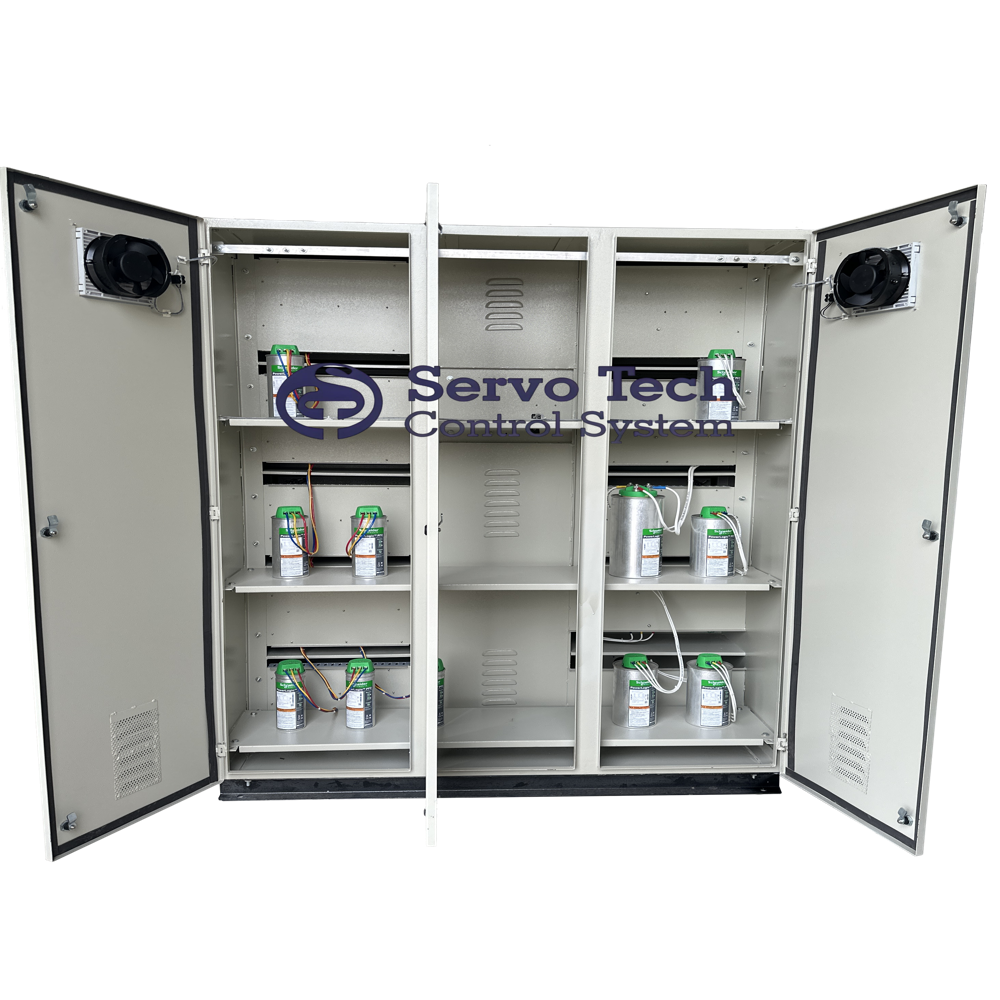

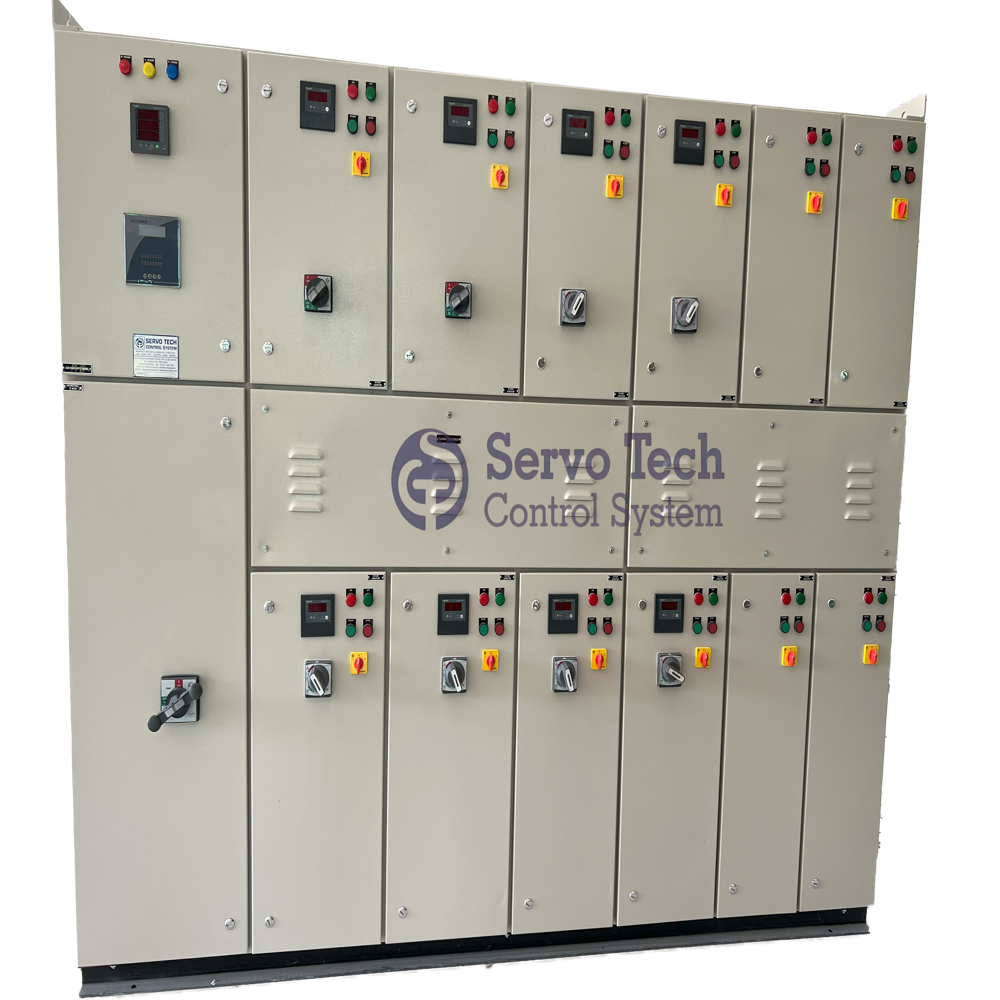

CAPACITOR PANEL

Name: APFC PANEL OR CAPACITOR PANEL
Brand: SERVO TECH CONTROL SYSTEM
Price: 100000
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

CAPACITOR PANEL Specification

Rated Current
200A - 630A (customizable)

Features
Automatic switching, protection against overvoltage/undervoltage, high efficiency

Protection Level
IP42 / IP52 / IP55 (as required)

Cooling System
Natural/Forced Air Cooling

Cabinet Material
CRCA Steel with Powder Coating

Control System
Automatic (APFC Relay controlled)

Rated Operation Voltage
415V AC

Components
Heavy Duty Capacitors, APFC Relay, MCCB/MCB, Contactors, Fuses, Indicating Lamps

Cover Material
Powder Coated Sheet Metal

Way
Multiple ways, configurable

Protection Class
Class 1

Operating Voltage
415V AC

Thickness
1.6mm to 2.0mm

Current Rating
As per design (typically 200A-630A)

Rated Insulation Voltage
690V

Base Material
Mild Steel Sheet

Connectivity Type
Hardwired

Panel Type
APFC Panel, Indoor Type

Product Type
Automatic Power Factor Correction (APFC) / Capacitor Panel

Material
Mild Steel (MS)

Surface Finish
Smooth Powder Coating

Standard
IEC 61439-1 & 2

Surface Color
Powder Coated Grey

Rated Voltage
415V AC

Frequency (MHz)
50 Hz

Maximum Output Current
As per panel design (typically up to 630A or above)

Dimension (L*W*H)
Customizable as per requirement

Application
Power Factor Correction in LT/HT Panels, Industrial & Commercial Installations

IP Rating
IP42 / IP54 (customizable)

Display Type
Digital/LED Display

Degree of Automation
Fully Automatic

Cable Entry
Top/Bottom Cable Entry

Response Time
Fast response with real-time correction

Load Capacity
Up to 1000 kVAR or as specified

Enclosure Type
Floor Mounted/Wall Mounted (Optional)

Operating Temperature Range
-10C to +45C

HMI Display
Optional Touchscreen Available

Busbar Material
Electrolytic Grade Copper or Aluminum

Fan Type
Axial Flow/Exhaust Fan for Cooling

CAPACITOR PANEL Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Week

Delivery Time
7 Days

About CAPACITOR PANEL

Capitalise on the new release of our famed APFC (Automatic Power Factor Correction) Panel, engineered for industrial & commercial use. This triumphant panel, crafted from Electrolytic Grade Copper/Aluminum busbars and robust Mild Steel, dazzles with up to 1000 kVAR load capacity and fast, real-time correction. Grab the advantage of fully automatic operation-complete with digital/LED display, optional touchscreen, and comprehensive protection. The configurable enclosure ensures flexible installation, while the smooth powder-coated finish delivers superior aesthetics and resilience. Conforms to IEC 61439-1 & 2 standards and customizable to your toughest specifications.

Versatile Usage: Industrial & Commercial Applications

The APFC Panel is designed for a wide spectrum of uses, including industrial and commercial installations. Used as a power factor correction unit, it reduces penalties and enhances efficiency in LT/HT panels. Its robust construction and automatic functionality make it ideal for continuous, heavy-duty usage in factories, malls, manufacturing plants, and large commercial spaces, delivering optimum performance and energy savings for intensive operations.

Certifications & Supply: Trusted and Ready for Dispatch

Our APFC Panel holds compliance with the acclaimed IEC 61439-1 & 2 standards, ensuring international quality and safety. Serving the main domestic market across India, we maintain stock ready for immediate dispatching. Express shipping options allow customers to grab quick delivery, supporting urgent project needs and repetitive supply schedules. Reliable supply ability ensures you never miss a deadline-count on us to keep your workflow uninterrupted with prompt fulfillment.

FAQ's of APFC PANEL OR CAPACITOR PANEL:

Q: How does the APFC Panel improve power factor in electrical installations?

A: The APFC Panel automatically detects and corrects power factor whenever it drops below the set level, using advanced relays and heavy-duty capacitors. This real-time adjustment improves overall system efficiency, reducing energy losses and avoiding penalty charges from utility providers.

Q: What is the typical process for installing the APFC Panel?

A: Installation involves configuring the panel for top or bottom cable entry, connecting to your electrical system, and setting operational parameters. The enclosure can be floor or wall-mounted, and our team offers support and guidance to ensure safe, efficient commissioning.

Q: Where can the APFC Panel be used most effectively?

A: The APFC Panel is suited for industrial sites, commercial buildings, malls, high-rise complexes, and anywhere efficient power factor correction is crucial. It's compatible with both LT and HT panels for broad utility.

Q: When should I consider upgrading to this new release APFC Panel?

A: Upgrade when you notice decreased power efficiency, higher electricity bills, or increased demand charges. This panel is especially beneficial for facilities looking to optimise their electrical consumption and meet the latest industry standards.

Q: What are the main benefits of using this APFC Panel?

A: Key benefits include enhanced energy efficiency, reduced operational costs, compliance with standards, long-term reliability, and customisable design tailored to your specific requirements.

Q: How does the APFC Panel protect against overvoltage or undervoltage conditions?

A: The panel is equipped with automated monitoring and protective devices-such as MCCBs, contactors, and fuses-that safeguard the electrical system from voltage anomalies, ensuring uninterrupted and safe operation.
