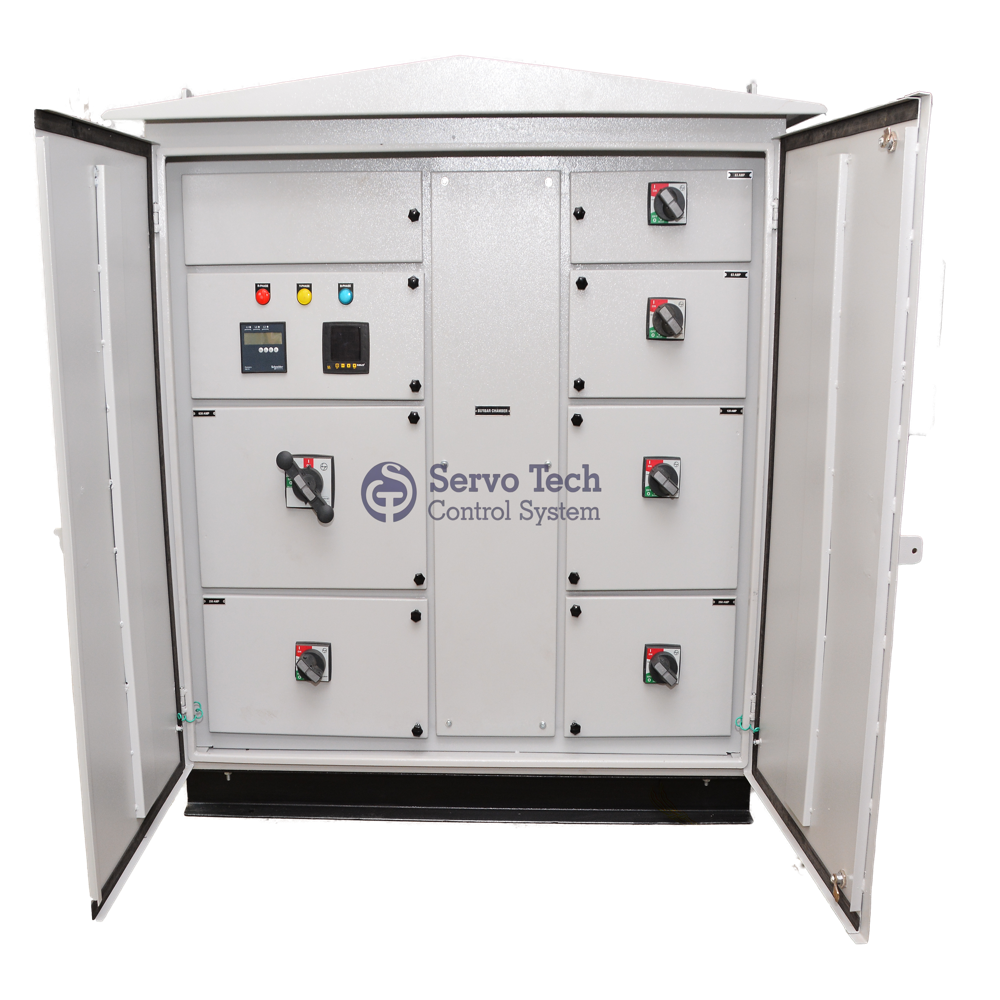

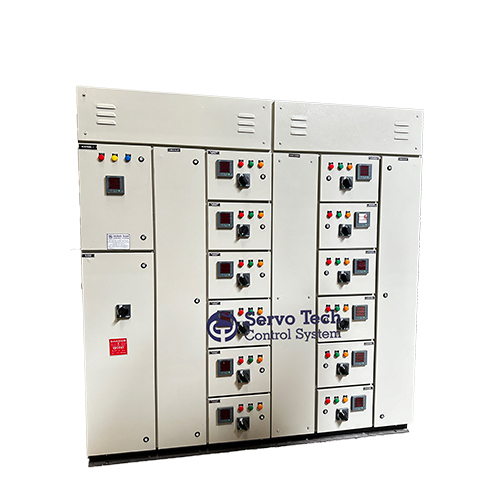

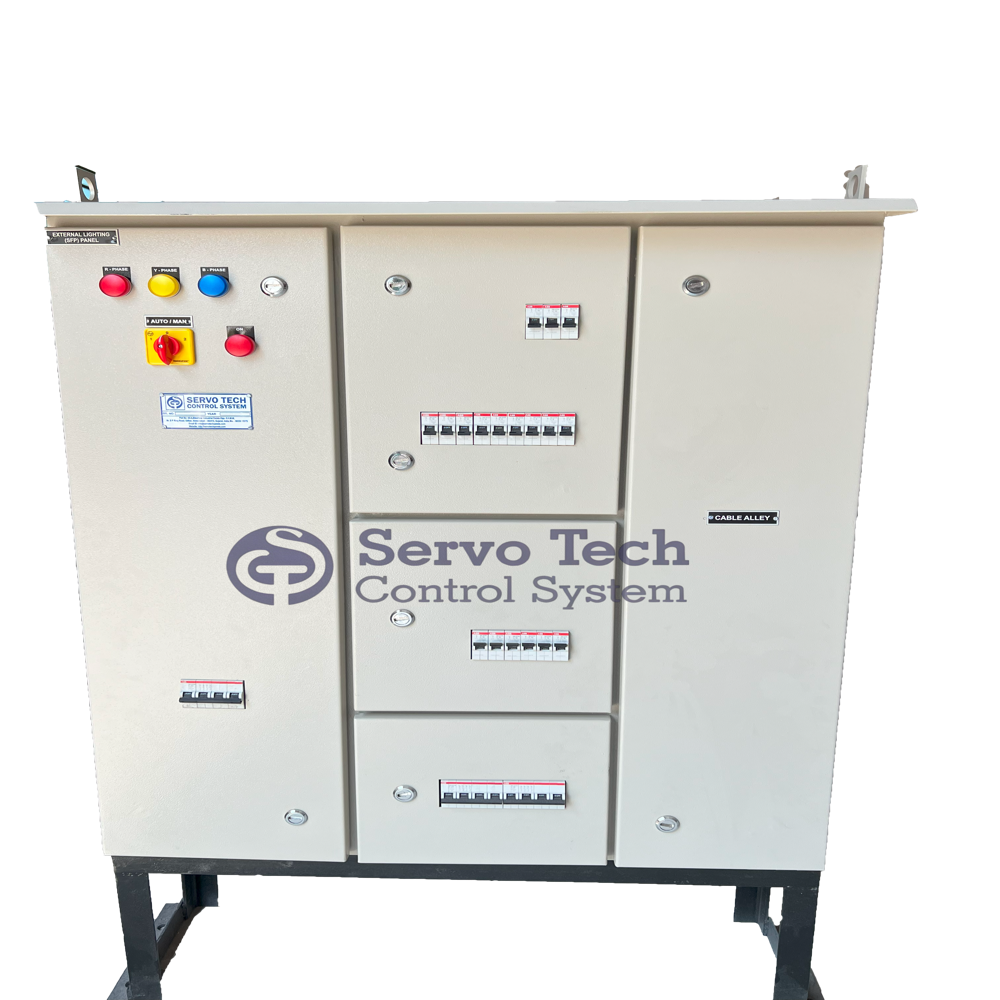

POWER DISTRIBUTION PANEL

Name: POWER DB PANEL OR LIGTING DB PANEL
Brand: SERVO TECH CONTROL SYSTEM
Price: 100000
Availability: InStock

Price 40000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

POWER DISTRIBUTION PANEL Specification

Rated Operation Voltage
415V

Operating Voltage
415V AC

Features
Shock Proof, Rust Resistant, Modular Design

Current Rating
Up to 630A

Rated Insulation Voltage
690V

Base Material
Mild Steel

Panel Type
Power and Lighting Distribution Panel

Components
MCB, MCCB, Busbar, Indicating Lamps, Volt/Amp Meter, Terminal Blocks

Connectivity Type
Panel Mounted Wiring

Cover Material
Powder Coated Steel

Protection Class
Class I

Protection Level
IP42 / IP54

Control System
Manual Switchgear Operation

Cabinet Material
Mild Steel

Thickness
1.6mm - 2.0mm

Way
Double Door - Multiple Ways

Rated Current
Up to 630A

Cooling System
Natural Air Ventilation

Product Type
Distribution Board Panel

Material
Mild Steel (MS)

Surface Finish
Epoxy Powder Coated

Standard
IEC 61439 / IS 8623

Surface Color
Powder Coated Grey

Rated Voltage
415V AC

Frequency (MHz)
50 Hz

Maximum Output Current
630A

Dimension (L*W*H)
Customized as per requirement

Application
Industrial and Commercial Electrical Distribution

IP Rating
IP42 / IP54

Display Type
Analog/LED Indicators

Busbar Material
Electrolytic Copper

Enclosure Type
Sheet Metal Enclosure

Earthing Provision
Yes, with Copper Earth Busbar

Ingress Protection
Gasketed Doors for Dust and Moisture Resistance

Mounting Type
Floor/Wall Mounted

Operating Temperature
-10C to 55C

POWER DISTRIBUTION PANEL Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Week

Delivery Time
7 Days

About POWER DISTRIBUTION PANEL

Get the new release Power DB Panel or Lighting DB Panel-an unassailable best-seller engineered for industrial and commercial electrical distribution. Crafted from high-grade mild steel with virtuoso epoxy powder-coated finishes, it offers incomparable protection with IP42/IP54 ratings and gasketed doors for dust and moisture resistance. Features include electrolytic copper busbars, copper earth busbar, modular design, and double-door multiple ways. Rated for up to 630A at 415V AC, it complies with IEC 61439/IS 8623 standards, promising shock-proof and rust-resistant durability. Supplied and manufactured in India.

Versatile Application and Method

The Power DB Panel or Lighting DB Panel can be floor or wall mounted for flexible installation, making it perfect for both new projects and retrofits. Its modular design and customizable dimensions suit diverse industrial and commercial spaces. Application methods are simplified through panel-mounted wiring and manual switchgear operation, ensuring seamless integration. Ideal for environments requiring safe, reliable distribution-this panel's robust structure and versatile function guarantee suitability for factories, office complexes, and retail centers alike.

Certifications and Export Markets

Certified under IEC 61439 and IS 8623 standards, each panel boasts premium quality and safety. With efficient drop-off at FOB ports in India, we cater to domestic and prominent export markets across Asia, Africa, and the Middle East. Clients rate our products highly for their reliability and compliance. Our dedication to stringent quality controls and international standard adherence has solidified our position as a trusted supplier in global electrical distribution solutions.

FAQ's of POWER DB PANEL OR LIGTING DB PANEL:

Q: How does the Power DB Panel or Lighting DB Panel ensure electrical safety?

A: The panel is designed with Class I protection, high-grade electrolytic copper busbars, shock-proof and rust-resistant construction, and IP42 or IP54 ingress protection to provide comprehensive safety in demanding environments.

Q: What environments are suitable for installing this distribution panel?

A: These panels are ideal for industrial and commercial spaces such as manufacturing plants, office buildings, and retail outlets, thanks to their flexible mounting options, robust build, and reliable performance.

Q: When should one choose a double-door, multi-way panel design?

A: A double-door, multiple way configuration is recommended when multiple circuits or branch connections are required, offering organized wiring and easy maintenance access in large-scale distribution applications.

Q: Where are these panels manufactured and supplied from?

A: Our Power DB Panels and Lighting DB Panels are manufactured and supplied directly from certified facilities in India, ensuring adherence to global quality standards and prompt delivery to domestic and export markets.

Q: What is the process for customizing dimension and configuration?

A: Customers can specify exact dimensions and layout requirements, after which our design team will tailor the panel structure to fit the project, ensuring flawless integration and optimal electrical distribution.

Q: What are the benefits of using panel-mounted wiring and modular design?

A: Panel-mounted wiring and modular design simplify installation, enhance organization, and facilitate future upgrades or replacements, providing long-term value and operational efficiency.
