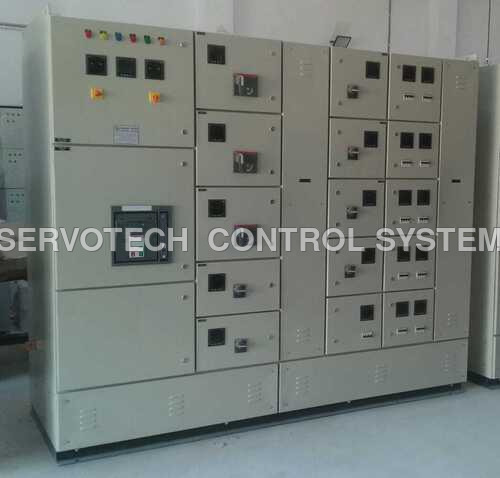

Power Distribution Panel

Name: Power Distribution Panel
Brand: SERVO TECH CONTROL SYSTEM
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Power Distribution Panel Specification

Features
Shock Proof, Durable, Rust Resistant

Cover Material
Powder Coated Steel

Connectivity Type
Busbar/Terminal Block

Components
MCBs, MCCBs, Relays, Meters

Operating Voltage
380-415V AC

Way
Multiple (Custom Configurable)

Thickness
2 mm

Cooling System
Natural Air Ventilated

Panel Type
Modular/Compartmentalized

Current Rating
Up to 6300A

Rated Insulation Voltage
660V

Rated Current
Up to 6300A

Base Material
PC cover

Protection Class
Class 1

Cabinet Material
Mild Steel Sheet

Rated Operation Voltage
415V

Protection Level
IP54

Control System
Manual/Electrical

Product Type
Control Box

Material
PVC

Surface Finish
Powder Coated

Standard
IEC 61439 / IS 8623

Surface Color
Light Grey

Rated Voltage
415 Volt (V)

Frequency (MHz)
50 Hz

Maximum Output Current
Up to 6300A

Phase
three

Dimension (L*W*H)
1200 x 600 x 2200 mm (customizable)

Application
Industrial/Commercial Power Distribution

IP Rating
Ip54

Display Type
Analog/Digital Meter

Service Entry
Top/Bottom Cable Entry

Mounting Type
Free Standing

Lighting Protection
Optional

Metering
Digital Multi-function Meter

Accessibility
Front/Rear Access

Earthing Provision
Dual Earth Bus Provision

Enclosure Type
Floor Mount, Indoor / Outdoor Option

Insulation Material
PVC/Heat Shrink Sleeve Main Insulation

Busbar Material
Electrolytic Grade Copper / Aluminum

Service Life
Over 10 Years

Panel Assembly
Bolted Construction

Wiring Type
Single/Double Busbar

Operating Temperature
-10C to +45C

Door Type
Hinged with Sealing Gasket

Power Distribution Panel Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ALL india

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
10 Pieces Per Week

Delivery Time
3 Week

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia

Main Domestic Market
All India

About Power Distribution Panel

Our offered superior quality Power Control Panel which is made up of high quality polyvinyl chloride material and advanced technology. It is appreciated for its high performance efficiency, longer functional life and easy installation. In addition to this, the said product is used for controlling mechanical equipment. Power Control Panel find its application in industries for controlling components. It is easy to install and require low maintenance which makes it highly admirable in the market. This product has a unique structure which is strong as well as resistant from corrosion.

Specification of Power Control Panel :

415V, 3Phase AC, 50kA, With M.S.Enclosure. Main LT panel / PCC with single / Multiple Incomers, bus couplers, with proper interlocking. - Required protections, Fault indications, interlocking are provided. - Various designs are offered in PCC like top / middle / bottom horizontal bus chambers, panel with Aluminum / Copper bus bars, top / bottom / front / rear cable termination, combinations of APFC part with PCC. - Required facilities like , Cut-Off of non essential feeders at the event of failure of mains power. - Panel with provision to connect bus duct at main incomer side.

"We Are Mainly Deal In Gujarat, Maharashtra, Rajasthan"

Superior Safety and Reliability

This power distribution panel is designed to deliver maximum operational safety with dual earth bus provision, shock-proof construction, and rust-resistant, powder-coated surfaces. Its sturdy mild steel sheet enclosure and durable internal components ensure longevity and remarkable performance even under intensive industrial conditions.

Flexible Installation and Customization

Whether you require indoor or outdoor placement, this panel's modular design accommodates custom dimensions and diverse applications. Multiple cable entry and wiring options, along with a choice between copper or aluminum busbars, means every installation can be tailored exactly to your project needs.

Advanced Monitoring and Protection

Equipped with digital multi-function metering, the panel allows real-time monitoring of electrical parameters. Optional lightning protection and compliance with stringent international standards provide peace of mind, while the panel's natural air ventilation system ensures reliable operation at temperatures from -10C to +45C.

FAQ's of Power Distribution Panel:

Q: How is the power distribution panel installed in different environments?

A: The panel is engineered for both indoor and outdoor environments, offering floor mounting and a free-standing configuration. It features top or bottom cable entries for flexible installation, and the customizable dimensions ensure it fits varied industrial or commercial spaces.

Q: What materials are used for busbars, and what are the benefits?

A: The panel uses electrolytic grade copper or aluminum for busbars, guaranteeing excellent electrical conductivity and minimized energy losses. Customers can choose based on current carrying requirements, maximizing efficiency and cost-effectiveness for their application.

Q: When should I consider choosing optional lightning protection?

A: Consider optional lightning protection if your facility is in a region prone to lightning strikes or if uninterrupted operation is critical for your processes. This feature enhances safety and protects sensitive electrical components from voltage surges.

Q: Where is the dual earth bus provision utilized in the panel?

A: Dual earth bus provision is incorporated into the panel's design for comprehensive earthing, supporting enhanced electrical safety. This feature is essential in industrial and commercial settings where robust grounding is required for equipment and personnel protection.

Q: What is the process for routine maintenance and accessibility?

A: Routine maintenance is streamlined thanks to the panel's bolted construction and modular compartments. Front and rear access, along with hinged doors sealed with gaskets, enable safe inspection and servicing without disrupting ongoing operations.

Q: How does the panel ensure user safety and equipment protection?

A: The panel complies with IEC 61439 / IS 8623 standards, featuring shock-proof, insulated wiring (with PVC/heat shrink sleeves), robust enclosure sealing (IP54 rated), and rust-resistant, powder-coated surfaces to prevent electrical hazards and environmental damage.

Q: What advantages does the digital multi-function meter provide?

A: The digital multi-function meter offers real-time monitoring of voltage, current, and other parameters, enhancing operational oversight. This aids in proactive maintenance, energy management, and ensures system stability for industrial and commercial power distribution.
