Road Construction Panel Boards

Get a Price/Quote

MOQ : 1 Unit

Road Construction Panel Boards Specification

Way
4-way, 6-way, or customizable

Current Rating
Up to 400A

Panel Type
Outdoor, Portable

Rated Current
Up to 400A

Base Material
Other

Connectivity Type
Cable gland, plug & socket

Rated Insulation Voltage
660V

Features
Weatherproof, corrosion-resistant, lockable door, padlock provision, lift handles

Cover Material
Powder coated steel

Protection Level
IP55

Thickness
1.2 2 mm

Cabinet Material
Mild Steel / Other

Cooling System
Natural air circulation

Operating Voltage
230V / 415V AC

Control System
Manual

Protection Class
Class I

Rated Operation Voltage
415V AC

Components
MCB, RCCB, ELCB, busbars, sockets, indication lamps

Product Type
Road Construction Panel Board

Material
Other

Surface Finish
Powder Coated

Standard
IS/IEC 61439-1 & 2 compliant

Surface Color
Orange with reflective elements

Rated Voltage
110V 415V AC

Frequency (MHz)
50 60 Hz

Maximum Output Current
Up to 400A

Dimension (L*W*H)
1200 x 800 x 350 mm or as required

Application
Road construction, temporary power distribution

IP Rating
IP55

Display Type
Analog/LED indication

Road Construction Panel Boards Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
3 Units, , Per Week

Delivery Time
3 Week

Main Domestic Market
Gujarat, Rajasthan, Madhya Pradesh, Maharashtra

About Road Construction Panel Boards

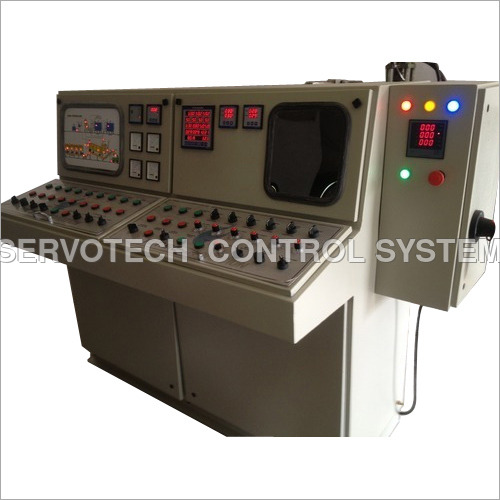

We are offering Road Construction Panel Boards designed to control the electrical machines used in the construction of roads and highways. It is installed with top-grade electrical and electronic equipment to safely adjust electrical power. This control station has an easy-to-use user interface that makes it easier for a single operator to set operational parameters. The metallic enclosure of the offered Road Construction Panel Boards acts as a protective barrier to prevent damages from moisture, chemical attacks, dist, dust, and humidity.

Product Details

Phase	on
Power	20.5 kW
Automatic Grade	Automatic
Application	DM45 road construction
Board Thickness	6-200mm

Optimized for Road Construction

These panel boards are engineered to meet the demanding requirements of road construction projects. They offer reliable power distribution for temporary setups, ensuring safe operation in outdoor environments. The orange powder-coated, reflective finish enhances visibility while the tough enclosure resists corrosion and ingress.

Flexible and Customizable Power Solutions

Available in 4-way, 6-way, or tailored formats, our panels support various voltage and current ratings, up to 400A. Cable gland, plug & socket connectivity options and customizable cable entry points accommodate project-specific installation needs, simplified by natural air-cooling and analog/LED indications for real-time monitoring.

Built for Safety and Compliance

Each panel integrates key safety components-MCB, RCCB, ELCB, busbars-and complies with IS/IEC 61439 standards. The design features dual earthing lugs, lockable metal doors with padlock provision, and comes RoHS certified, making them both environmentally conscious and operationally secure.

FAQ's of Road Construction Panel Boards:

Q: How are Road Construction Panel Boards installed at a site?

A: The panels can be mounted on surfaces or floors, with an optional pedestal available. Their design includes lifting hooks or handles, which facilitates easy transport and placement. Cable entry is customizable, supporting bottom or side feeds to suit onsite layouts.

Q: What safety and protection features do these panel boards offer?

A: Safety is ensured through IP55 ingress protection, vermin-proof enclosure, dual earthing lugs, and lockable powder-coated steel doors. Integrated MCBs, RCCBs, ELCBs, and padlock provision prevent unauthorized access and electrical faults, while natural air cooling maintains optimal conditions inside the enclosure.

Q: When should customization be considered for a Road Construction Panel Board?

A: Customization is recommended whenever your project demands specific input connector types, cable entry points, dimensions, configurations, or additional electrical components. Our panels are fully adaptable to client specifications and project requirements.

Q: Where are these panel boards best used?

A: Primarily designed for road construction or temporary power distribution at outdoor project sites, these panels are suitable for deployment anywhere robust, portable, and weatherproof power control is required.

Q: What is the process for ordering a customized panel board?

A: Clients may specify desired configurations, enclosure size, way type, connectivity, and accessory requirements. After confirming compliance with IS/IEC 61439 standards, our team manufactures and supplies the customized unit, ensuring it meets all safety and operational criteria.

Q: How do users benefit from the panel's environmental and regulatory compliance?

A: The RoHS-compliant construction supports eco-friendly operations, while adherence to IS/IEC 61439-1 & 2 guarantees product reliability, quality, and safety. Users gain confidence that the panel is fit for demanding applications and meets national and international standards.

Q: What components and indicators are included in these panel boards?

A: Each panel typically features heavy-duty industrial connectors, busbars, sockets, MCBs, RCCBs, ELCBs, analog/LED indication lamps, and manual controls for straightforward operation and status monitoring.
