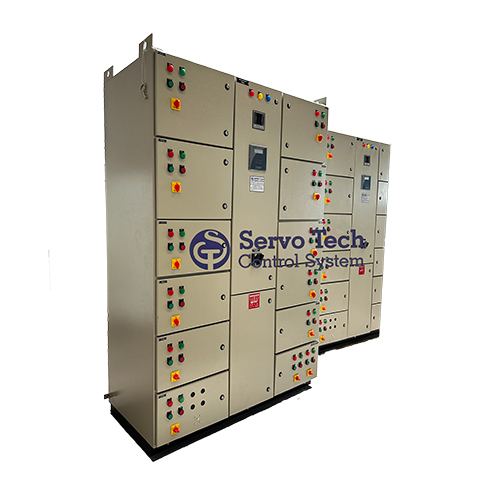

APFC Panel Manufacturer

Get a Price/Quote

MOQ : 1 Unit

APFC Panel Manufacturer Specification

Cooling System
Natural Air / Forced Ventilation

Current Rating
100A 2000A

Connectivity Type
Hardwired

Control System
Microprocessor-Based APFC Relay

Cabinet Material
MS Powder Coated Enclosure

Components
Capacitor Bank, APFC Relay, MCCB, Contactor, Detuned Reactor (Optional), Busbar

Protection Class
Class I

Rated Operation Voltage
415V

Rated Insulation Voltage
690V

Cover Material
Stainless Steel

Panel Type
Indoor / Outdoor

Base Material
Mild Steel

Power Rating
0-0.99 %

Product Type
Electric Panel

Material
PC cover

Surface Finish
Electro Zinc Plated

Surface Color
Brown

Usage & Applications
Industrial Plants, Commercial Buildings, Manufacturing Units

Rated Voltage
3 kV to 10 kV Volt (V)

Cable Type
PVC / XLPE Copper Cable

Display Type
Digital APFC Relay Display

Phase
Three Phase

Warranty
12 Months

Features
Automatic PF Correction, Energy Saving, Low Maintenance

Conductor
Copper / Aluminium

Application
Chemical Industry, Cement Plant, Sugar Plant, Textile, Hospital

APFC Panel Manufacturer Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Week

Delivery Time
3 Week

Main Domestic Market
Gujarat, Rajasthan, Maharashtra, Madhya Pradesh

About APFC Panel Manufacturer

APFC Panel Manufacturer

We are a trusted APFC Panel manufacturer in India, offering high-performance Automatic Power Factor Control Panels designed to improve energy efficiency and reduce electricity penalties. Our APFC panels are manufactured using premium quality components and advanced microprocessor-based controllers to maintain optimum power factor in industrial and commercial installations.

We are counted amongst the trustworthy manufacturers, exporters and suppliers of the finest quality APFC Panel. This panel is manufactured using high-quality components and advanced technology. It is widely used in various industrial areas to control the power factor, reduce installation time, and minimize costs. The APFC Panel is available in different capacities and technical specifications at competitive prices. APFC Panels are designed to automatically maintain power factor close to unity, reducing electricity bills and improving system efficiency. These panels are widely used in industries to avoid penalties imposed by electricity boards.

How APFC Panel Works

APFC panels continuously monitor the electrical load and automatically switch capacitor banks ON or OFF to maintain the desired power factor. This intelligent operation ensures optimized power usage and minimizes energy losses.

Types of APFC Panels Manufacturer

Automatic APFC Panel
APFC Panel with Detuned Reactor
Indoor APFC Panel
Outdoor APFC Panel
Intelligent / Smart APFC Panel

Why Choose Us?

Trusted APFC panel manufacturer in India
High-quality components and strict quality control
Custom-built panels as per client requirements
Competitive pricing and timely delivery
Excellent after-sales support

Features of APFC Panel Manufacturer

Automatic power factor correction
Reduction in electricity bills
Improved system efficiency
Modular capacitor bank design
Heavy-duty and long-lasting panel
Easy installation and maintenance
Robust design
Hassle-free performance
Microprocessor-based relay control
Thyristor-based capacitor switching option
Ventilated panel design
Capacitive duty contactors
Maintains up to 0.99 power factor
High-speed power factor correction
Detuned reactor provision for harmonic protection

100 KVAR APFC PANEL:- Capacitor Control Panels are provided for Controlling the power factor of the complete installation.

APFC Panel with Microprocessor based relay for controlling power factor within required values.
RTPFC Panels using Thyristor based capacitor switching.
Fully ventilation type panel
Easy Maintenance and easy to removable capacitor
Used of capacitive duty contactors
Always maintain 0.99PF.
High-speed power factor correction.
Provision of detuned reactors the panels for reliable operation in presence of harmonics.

Benefits of APFC Panel Manufacturer:

Maintains desired power factor automatically
Reduces electricity bills and penalty charges
Improves voltage stability
Enhances equipment life
Reduces transformer losses
Suitable for industrial and commercial applications

Specifications of APFC Panel:

Voltage	3 kV to 10 kV
Application Type	Chemical Industry, Cement Plant, Sugar Plant, Textile, Hospital
Power Factor Improvement	Up to 0.99

FAQs of APFC Panel Manufacturer:

Q. How does an APFC panel improve the power factor?

A. The APFC panel automatically monitors reactive power demand and switches capacitor banks accordingly. It reduces lagging power factor, minimizes energy losses, enhances system efficiency, and maintains stable voltage levels.

Q. Why are APFC panels preferred in industries?

A. APFC panels help reduce electricity bills, avoid penalties due to low power factor, reduce load on transformers and generators, increase equipment lifespan, and manage reactive power automatically without manual intervention.

Q. What are the major components of an APFC panel?

A. Main components include capacitor banks, contactors or thyristor modules, power factor controllers, MCCBs, relays, and protection devices that work together to control and protect the electrical system.

Q. How often does an APFC panel require maintenance?

A. APFC panels require periodic maintenance such as checking capacitor health, controller calibration, contactor condition, wiring tightness, and cleaning to ensure reliable performance.

Q. Can an APFC panel operate under fluctuating load conditions?

A. Yes, APFC panels are designed to handle rapidly changing loads. They automatically switch capacitor steps to maintain an optimal power factor even in systems with variable loads.

Q. What is APFC panel used for?

A. APFC panels are used to improve power factor and reduce electricity losses in industrial and commercial systems.

Q. How does APFC panel reduce electricity bills?

A. It reduces reactive power consumption and avoids penalties from electricity boards.

Q. What is the ideal power factor?

A. The ideal power factor is close to 1 (unity).

Q. What industries need APFC panels?

A. Industries with heavy electrical loads like manufacturing, textile, and commercial buildings require APFC panels

Advanced Power Factor Correction

These APFC panels utilize a microprocessor-based APFC relay for real-time monitoring and adjustment. Their automatic nature ensures consistent power factor improvement, reducing energy losses and penalties. The optional detuned reactor protects against harmonics, while a robust busbar system handles high currents efficiently. The digital display provides clear parameter visibility, making control and supervision user-friendly.

Engineered for Diverse Applications

Built for reliability, these panels are widely used in industrial plants, manufacturing units, commercial buildings, and specialized sectors such as chemicals, cement, sugar, textiles, and hospitals. Their enclosure and cable options make installation flexible for both indoor and outdoor settings, with natural or forced ventilation cooling systems ensuring optimal performance under varied environmental conditions.

FAQ's of APFC Panel Manufacturer:

Q: How does the APFC panel automatically correct power factor in my facility?

A: The APFC panel is equipped with a microprocessor-based APFC relay that continuously monitors the power factor and switches the capacitor bank on or off as needed. This ensures automatic and precise correction throughout operation, minimizing losses and maintaining electrical efficiency.

Q: What materials are used in the construction of this APFC panel, and why are they important?

A: The panel features a PC (polycarbonate) cover for electrical safety and visibility, with an MS (mild steel) powder-coated enclosure and a stainless steel cover for enhanced durability and corrosion resistance. These materials ensure the panel's long operational life and safe use in tough industrial settings.

Q: When should I consider installing an APFC panel in my industrial or commercial facility?

A: Installing an APFC panel is recommended when your facility consistently operates with inductive loads, leading to a low power factor and potential energy penalties. It's particularly beneficial in sectors like manufacturing, chemical, cement, sugar, textiles, and hospitals, where significant machinery or HVAC loads are present.

Q: Where can these APFC panels be installed, and what types of environments are suitable?

A: These panels are designed for both indoor and outdoor installation, thanks to their robust enclosures and flexible ventilation (natural or forced). They are suitable for use in industrial plants, commercial properties, and demanding environmental settings needing reliable power factor management.

Q: What is the process for integrating the APFC panel into an existing electrical system?

A: The panel is designed for hardwired connectivity on three-phase networks. Installation involves connecting the main busbar, control wiring, and capacitor banks as per the provided schematic. Skilled electricians should carry out the process, following all safety and electrical codes to ensure correct and safe operation.

Q: How does using an APFC panel benefit my facility's energy efficiency and maintenance schedule?

A: Automatic power factor correction helps reduce wasted energy, eliminates utility penalties, and leads to considerable cost savings over time. The panel's low-maintenance design, robust components, and intelligent control system further decrease the need for regular manual intervention and upkeep.
