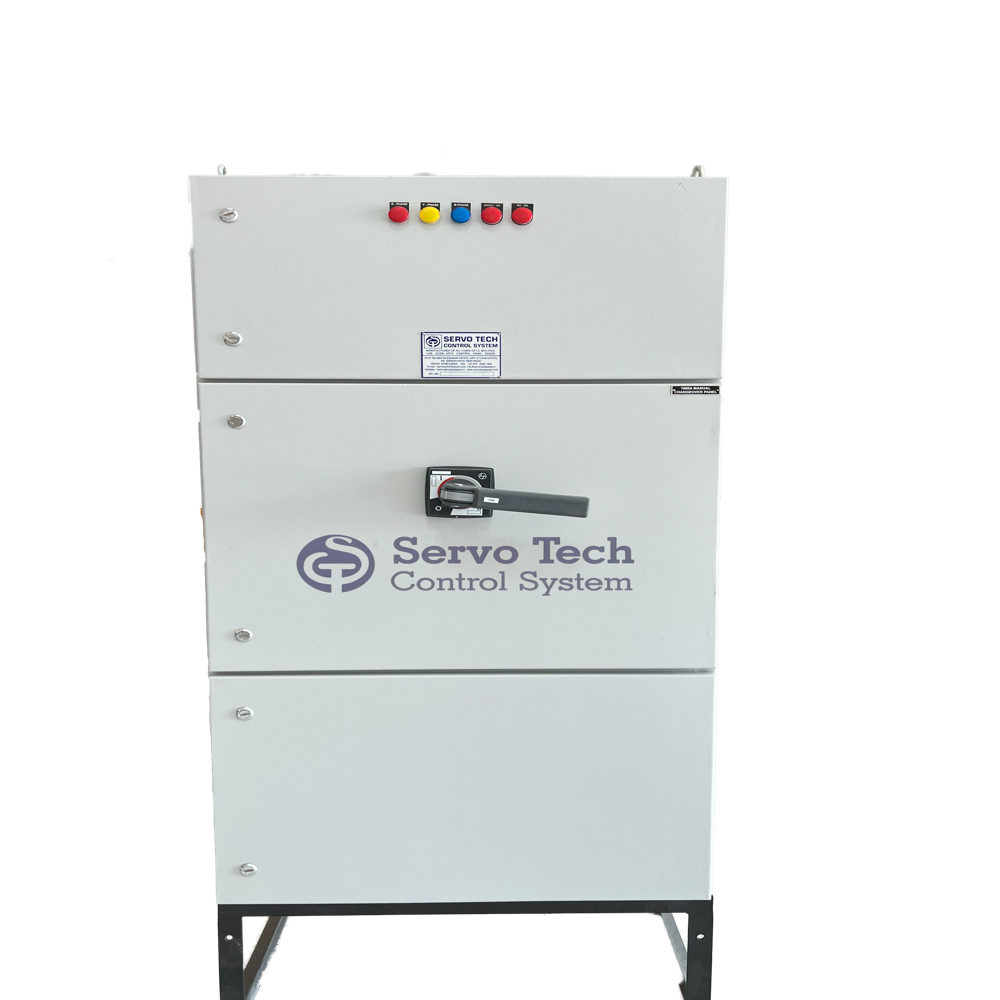

Changeover Panels

Name: Changeover Panels
Brand: SERVO TECH CONTROL SYSTEM
Price: 36000.0 INR
Availability: InStock

Price 36000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Changeover Panels Specification

Rated Operation Voltage
415V

Rated Insulation Voltage
690V

Components
Busbars, MCCB/MCB, Relays, Connectors

Thickness
1.6 mm to 2 mm

Current Rating
Up to 630A

Rated Current
Up to 630A

Operating Voltage
415V AC

Panel Type
Changeover

Cover Material
Powder Coated Steel

Base Material
Other

Cooling System
Natural Air Cooled

Cabinet Material
Mild Steel

Protection Level
IP54 / IP55

Connectivity Type
Wired

Control System
Push Button/Automatic Logic

Protection Class
Class 1

Way
Double Door / Multi Way

Features
Robust Construction, Easy Installation, Corrosion Resistant

Product Type
Automatic/Manual Changeover Panel

Material
Other

Surface Finish
Matte

Standard
IEC 61439 / IS 8623

Surface Color
Powder Coated Grey

Rated Voltage
415V AC

Frequency (MHz)
50/60 Hz

Maximum Output Current
630A

Dimension (L*W*H)
Custom/As per Requirement

Application
Industrial, Commercial, Utility, Generator Changeover

Display Type
Indicator Lamps/Digital Meters (on request)

Busbar Material
Electrolytic Grade Copper/Aluminium

Door Type
Double Door with Toughened Glass (Optional)

Finish Type
Anti-rust Powder Coating

Mounting Type
Floor Standing

Environment Suitability
Indoor / Outdoor (With Suitable Enclosure)

Operating Temperature
-10C to +55C

Input/Output Cable Entry
Bottom/Top Entry (Customizable)

Door Lock Type
Latch with Key Lock

Compatible Standards
Conforms to IS/IEC requirements

Earthing Provision
Dual Earthing Provided

Changeover Panels Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Day

Delivery Time
3 Week

Main Domestic Market
Gujarat, Maharashtra, Rajasthan, Madhya Pradesh

About Changeover Panels

"We Are Mainly Deal In Gujarat, Maharashtra, Rajasthan"

We have brought to you supreme quality Changeover Panels that are constructed basically for transferring the business electricity from the commercial power. These are designed in a modular size and provide easy installation as well as maintenance. In addition to this, the said products are featured with simple operations, long lasting service life, high strength and corrosion resistance. Changeover Panels ensure high performance efficiency and trouble free usage. Our offered products are available in different specifications, designs and sizes. These are known for their strong construction and low maintenance.

Product Details

Phase	Three Phase
IP Rating	IP40
Max. Voltage	690 V
Max. Current	3200 A

Advanced Safety and Flexibility

Designed with dual earthing, robust locking systems, and customizable cable entries, our Changeover Panels ensure adaptability for varied installation sites. The anti-corrosion powder-coated steel enclosure, available in matte grey, provides lasting durability and resistance to harsh environments, complementing both indoor and outdoor settings.

Custom-Built for Diverse Applications

Every panel can be tailored in dimensions, way options, and configurations to fit specific infrastructure requirements. Whether for generator back-up in factories, power redundancy in commercial complexes, or utility grid switchovers, our panels integrate seamlessly with existing systems, conforming to stringent IS/IEC safety norms.

FAQ's of Changeover Panels:

Q: How is the changeover panel installed, and what mounting options are available?

A: The panel is designed for floor-standing installation using a sturdy base, making it suitable for both new and retrofit projects. Cable entry points can be positioned at the bottom or top, customizable to site requirements, ensuring a flexible and secure connection.

Q: What are the key benefits of using electrolytic grade copper or aluminium busbars in these panels?

A: Electrolytic grade copper and aluminium offer superior electrical conductivity, minimize energy losses, and enhance safety. They also provide long service life and reliable performance in high-current scenarios, meeting stringent IEC/IS standards.

Q: Where can these changeover panels be used effectively?

A: The panels are suitable for various settings, including industrial plants, commercial buildings, utility substations, and generator backup systems. With IP54/IP55 protection and an option for an outdoor-rated enclosure, they cater to both indoor and outdoor installations.

Q: What process is followed to customize dimensions and features as per specific requirements?

A: Customization begins with understanding the client's technical and spatial needs. The panel's length, width, height, cable entry point, and configuration are engineered accordingly, ensuring compatibility with site constraints and intended electrical loads.

Q: When is dual earthing necessary, and how does it enhance safety?

A: Dual earthing is essential in environments where extra protection against electric shock is required or where regulatory standards necessitate redundant grounding. It ensures greater operational safety by minimizing earth fault hazards and improving grounding reliability.

Q: How does the anti-rust powder coating and matte surface finish benefit the panel's longevity?

A: The anti-rust powder coating, combined with a matte finish, protects the steel enclosure from environmental factors such as moisture and corrosion. This extends the panel's service life, ensuring reliable operation in humid or challenging environments.
