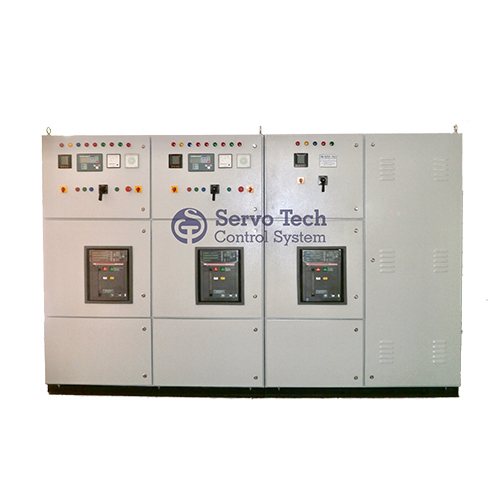

DG SET SYNCHRONIZING AND AMF PANEL

Name: DG SET SYNCHRONIZING AND AMF PANEL
Brand: SERVO TECH CONTROL SYSTEM
Price: 100000
Availability: InStock

Get a Price/Quote

MOQ : 1 Piece

DG SET SYNCHRONIZING AND AMF PANEL Specification

Thickness
2 mm to 3 mm

Connectivity Type
Remote Communication (RS485, Modbus)

Protection Class
Class I

Rated Operation Voltage
415 V

Panel Type
Automatic Synchronizing and AMF Panel

Current Rating
Upto 3200A

Cover Material
Powder Coated Steel

Rated Current
Up to 3200A

Features
Auto Start/Stop, Auto Load Sharing, Power Factor Correction, Fault Indication

Components
MCB, MCCB, ACB, Relays, Meters, Contactors, Bus Bar

Protection Level
IP42 / IP54 / IP55

Base Material
Mild Steel Plate

Control System
Automatic / Microprocessor Based Controller

Cabinet Material
Mild Steel, CRCA Sheet

Way
Customizable

Operating Voltage
380-440V AC

Rated Insulation Voltage
690 V

Cooling System
Natural Air Cooling / Forced Cooling

Product Type
DG Set Synchronizing and AMF Panel

Material
Mild Steel

Surface Finish
Powder Coated

Standard
IEC 61439 / IS 8623

Surface Color
Grey

Rated Voltage
415 V AC

Frequency (MHz)
50 Hz

Maximum Output Current
Up to 3200A

Dimension (L*W*H)
As per client requirement / Customizable

Application
Industrial / Commercial Power Management

IP Rating
IP54 / IP55

Display Type
Digital / LED

Cable Entry
Top and Bottom Entry Provision

Maintenance Access
Front and Rear Access Doors

Compatibility
Suitable for Multiple DG Sets and Utility Synchronization

Busbar Material
High Conductivity Electrolytic Copper

Insulation Resistance
>=1000 M at 500 V DC

Altitude
Up to 2000m

Panel Earthing
Dual Earth Bar Provided

Operating Temperature Range
-10C to +55C

Ventilation
Louvered/Openings with Filters

Mounting Type
Floor Standing

Paint Thickness
60-80 Microns

Metering
Multifunction Digital Meter Provided

Short Circuit Withstand Capacity
Up to 65 kA for 1 sec

Seismic Qualification
Available on Request

DG SET SYNCHRONIZING AND AMF PANEL Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Week

Delivery Time
7 Days

About DG SET SYNCHRONIZING AND AMF PANEL

Experience the marvel of robust power management with our featured DG Set Synchronizing and AMF Panel. Constructed with redoubtable high conductivity electrolytic copper busbars and engineered for spectacular reliability, this panel boasts a sizzling array of features including dual earth bars, multifunction digital metering, and versatile cable entry. Reserve your peace of mind with seamless automatic load sharing, microprocessor-based control, and comprehensive protection in demanding environments. Its customizable, powder-coated design ensures superior performance up to 3200A, suitable for complex industrial and commercial settings. Your energy needs-met with unparalleled precision and safety.

Commercial Versatility & Extensive Applications

DG Set Synchronizing and AMF Panel is a marvel for varied industrial and commercial uses, such as reliable backup, grid-diesel synchronization, and power factor management. Specifically designed for usage in manufacturing plants, IT parks, hospitals, malls, and data centers, it is also utilized as the central node in utility synchronization and load management, ensuring steady operations and uninterrupted power delivery even during grid fluctuations or outages.

Sample Availability, Shipping, and Export Quotations

Samples of our DG Set Synchronizing and AMF Panel are available to facilitate your purchasing outlay decisions. Supported by a premier FOB port in India, we cater to international export markets with timely and transparent quotations. Our delivery window is tailored for efficiency, generally fulfilling orders within four to six weeks, ensuring optimal project timelines and global market competitiveness for your business requirements.

FAQ's of DG SET SYNCHRONIZING AND AMF PANEL:

Q: How does the DG Set Synchronizing and AMF Panel enhance power management efficiency?

A: The panel ensures automatic synchronizing and seamless load sharing between multiple DG sets and the utility, minimizing downtime and optimizing generator efficiency.

Q: What are the main benefits of using high conductivity electrolytic copper busbars?

A: High conductivity electrolytic copper provides superior electrical performance, reduces energy losses, and ensures longevity in heavy-duty applications.

Q: Where can this panel be ideally installed and used?

A: It is ideal for installation in industrial plants, commercial buildings, hospitals, business centers, and other facilities that require uninterrupted, reliable power management.

Q: What is the process for obtaining a custom-built DG Set Synchronizing and AMF Panel?

A: You can request a quotation based on your specific requirements; our team will assess your needs and provide a tailored design, specifications, and delivery schedule.

Q: When should you use dual earth bar provided with the panel?

A: The dual earth bar is crucial for enhancing safety and fault dissipation, especially in high-capacity or critical environments with greater protection demands.
