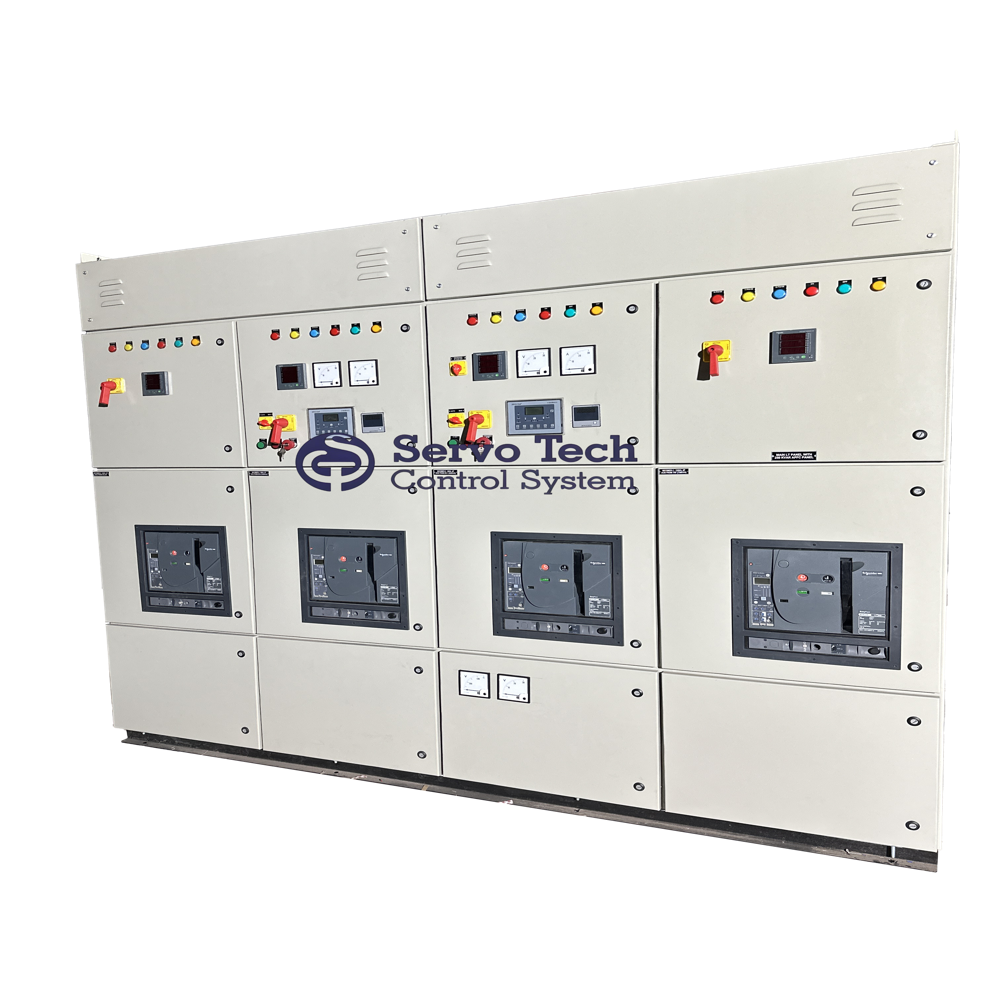

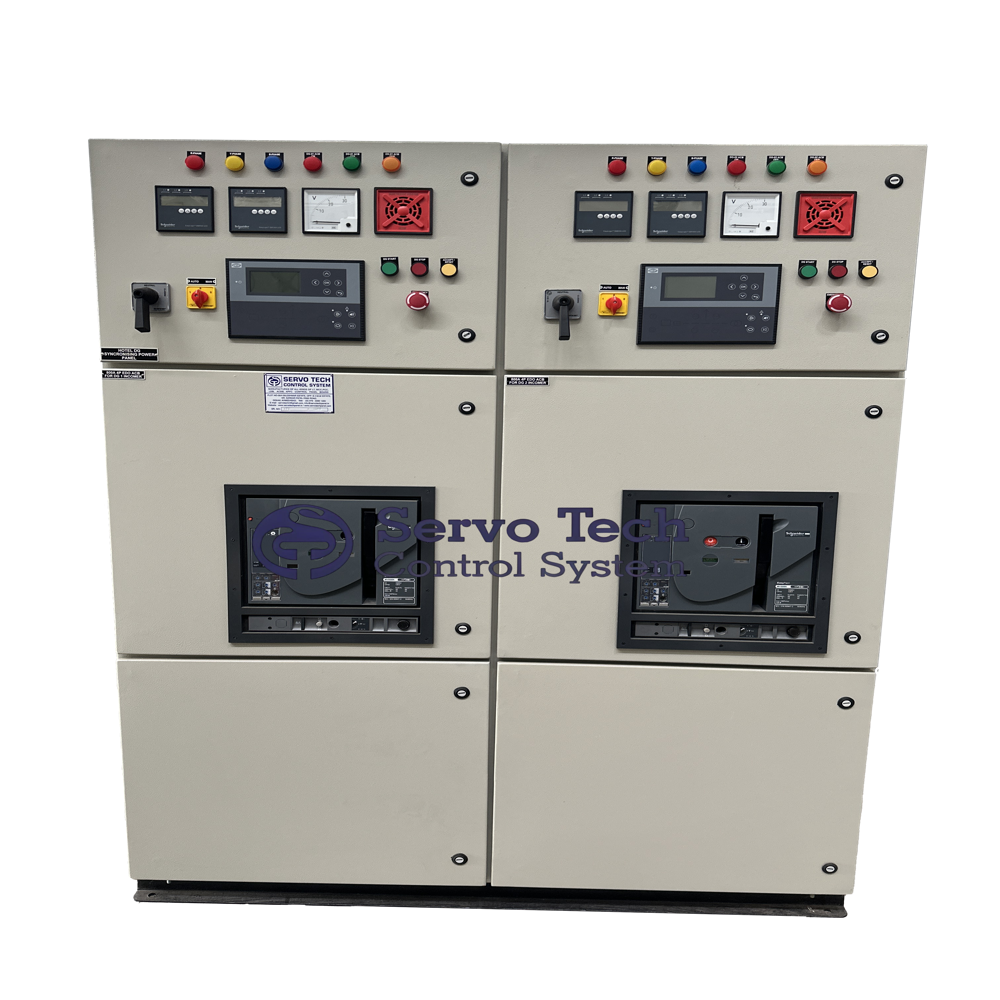

DG SET SYNCHRONIZING PANEL

Name: DG SET SYNCHRONIZING
Brand: SERVO TECH CONTROL SYSTEM
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

DG SET SYNCHRONIZING PANEL Specification

Base Material
Mild Steel, Metal Base

Cover Material
Metal

Rated Current
2000 Ampere (amp)

Thickness
2 Millimeter (mm)

Operating Voltage
415 Volt (V)

Protection Level
Other

Product Type
Electric Panel

Material
Mild Steel

Surface Finish
Powder Coated

Surface Color
Any Color

Frequency (MHz)
50 Hertz (HZ)

Rated Voltage
415 Volt (V)

Operating Temperature
40 Celsius (oC)

Maximum Output Current
450 Volt (v)

Dimension (L*W*H)
900 x 2000 x 2100 Millimeter (mm)

Warranty
1 Year

DG SET SYNCHRONIZING PANEL Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
2 Week

Main Export Market(s)
Asia

Main Domestic Market
Gujarat, Madhya Pradesh, Maharashtra, Rajasthan

About DG SET SYNCHRONIZING PANEL

DG Diesel Generator set synchronizing is a process that allows multiple generators to operate in parallel sharing the load effectively while maintaining system stability This is crucial for applications requiring continuous power supply especially in critical facilities Heres a technical description of the DG set synchronizing process

Components

1 Diesel Generators

Multiple DG sets configured to operate in parallel

2 Synchronizing Panel

Contains the control logic and circuitry needed for synchronizing generators This panel typically includes

Synchronizing Relays Monitor voltage frequency and phase angle

Load Sharing Controllers Ensure that each generator contributes to the load proportionally

Control Switchgear For manual or automatic operation of circuit breakers

3 Voltage and Frequency Measurement

Instruments to measure the output voltage frequency and phase of each generator and the bus bar

4 Phase Sequence Indicators

Tools to ensure that generators are in the correct phase sequence before synchronization

5 Communication Interface

Allows for data exchange between generators and control systems enabling coordinated operation

6 Protection

Circuit breakers and fuses for overcurrent shortcircuit and underovervoltage protection

Synchronization Process

1 PreSynchronization Checks

Verify that all generators are operating under similar conditions voltage frequency phase sequence

Ensure that the bus bar voltage is stable and within acceptable limits

2 Matching Parameters

Adjust the speed and voltage of the incoming generator to match those of the bus bar

Use the governor control for speed adjustment and the voltage regulator for voltage alignment

3 Phase Synchronization

Ensure that the phase angle of the incoming generator matches that of the bus bar This is critical to prevent circulating currents

Phase comparators in the synchronizing panel assist in determining phase alignment

4 Connection

Once parameters are matched and synchronized the circuit breaker of the incoming generator is closed connecting it to the bus bar

Load sharing controllers then adjust the output of each generator to balance the load

5 Load Management

Continuous monitoring and adjustment of each generators output to ensure balanced load sharing and system stability

Applications

Used in various industries including telecommunications hospitals data centers and manufacturing where reliable and uninterrupted power supply is critical

Advantages

Increased reliability by providing backup power through multiple sources

Enhanced efficiency through optimal load sharing

Flexibility to add or remove generators based on load demand without interruption

Standards

Compliance with relevant standards and regulations for electrical installations eg IEC NEMA UL to ensure safe and reliable operation

This technical description provides an overview of the DG set synchronizing process and its importance in power management systems If you need more specific details or have particular aspects in mind feel free to ask

Seamless Power Management

Ensure continuous and balanced power delivery across multiple generators with our DG Set Synchronizing Panels. These panels automatically balance the load and synchronize operations, making them an essential component for industrial and commercial power management, especially during fluctuating grid conditions or outages.

Robust Mild Steel Construction

Crafted from high-quality mild steel with a powder-coated finish, the panels offer superior durability and resistance to corrosion. The sturdy 2mm thick metal base and cover protect internal components, ensuring reliable long-term operation in varying environmental conditions.

Flexible Installation and Support

Designed for easy installation, the panels fit seamlessly into existing power infrastructure. With support for operating voltage up to 440V, our panels are tailored for Indian industrial standards, and our team provides nationwide supply, installation support, and a comprehensive 1-year warranty.

FAQ's of DG SET SYNCHRONIZING:

Q: How does a DG Set Synchronizing Panel work?

A: A DG Set Synchronizing Panel ensures that multiple diesel generators operate together efficiently by matching their frequency, voltage, and phase before connecting them to the common busbar. This process balances the load between generators, prevents overloading, and maintains power stability.

Q: What are the primary benefits of using a DG Set Synchronizing Panel?

A: Using a synchronizing panel increases power reliability, allows for the sharing of electrical load between generators, and reduces downtime during power transitions. This setup is ideal for facilities requiring uninterrupted power supply and efficient energy management.

Q: What is the construction material and why is it important?

A: Our panels are constructed with high-grade mild steel and finished with a powder coating. This combination ensures durability, protection against environmental factors, and longevity, making it suitable for challenging industrial conditions.

Q: When should I consider installing a DG Set Synchronizing Panel?

A: Install a synchronizing panel when you have two or more generator sets that need to operate in parallel or backup each other. This is especially useful for large commercial buildings, manufacturing units, or any premises with high and uninterrupted power demands.

Q: Where can these DG Set Synchronizing Panels be used?

A: These panels are ideal for use in commercial complexes, factories, hospitals, data centers, and other venues that rely heavily on consistent power supply. Their rugged build and customizable features cater to various sectors across India.

Q: What is the warranty and after-sales support for the product?

A: Each panel comes with a 1-year warranty covering manufacturing defects. We also provide technical support and maintenance services to ensure smooth installation and reliable ongoing operation.
