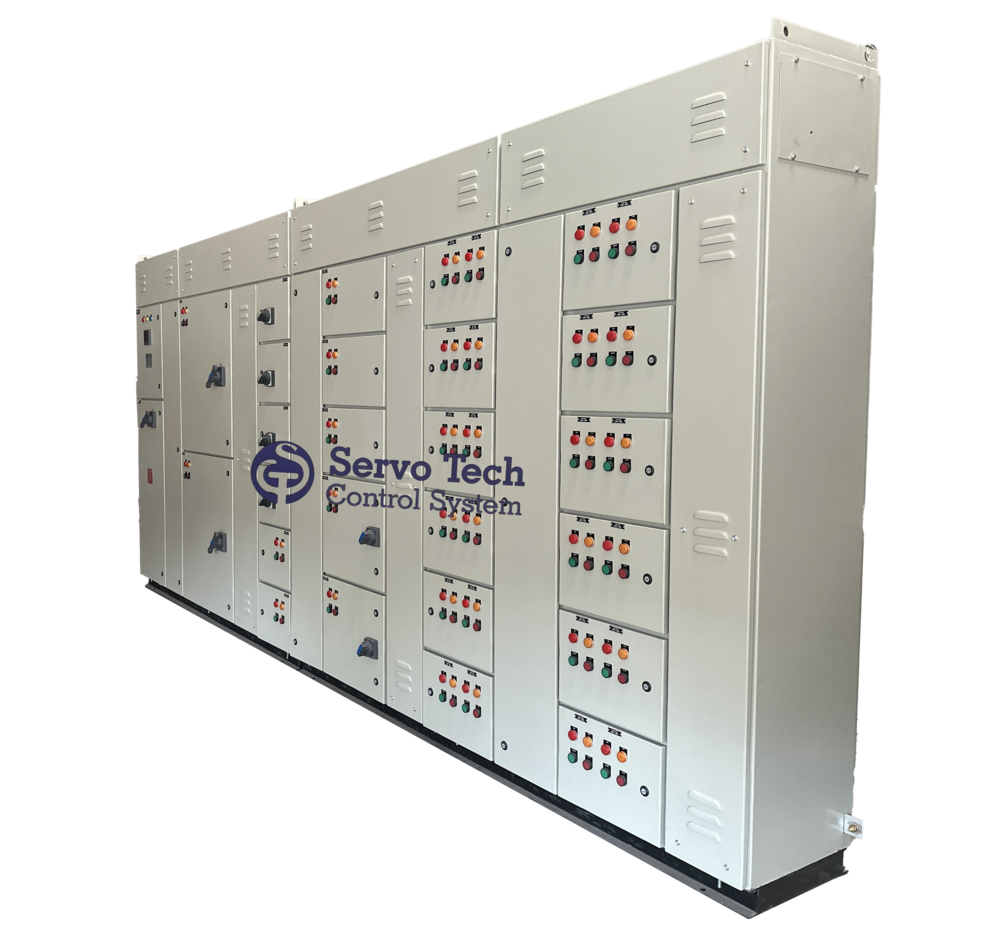

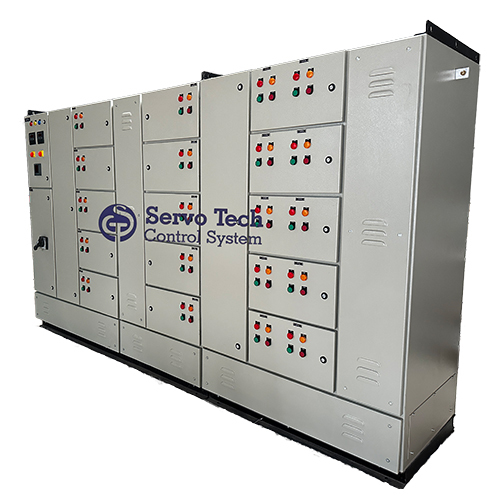

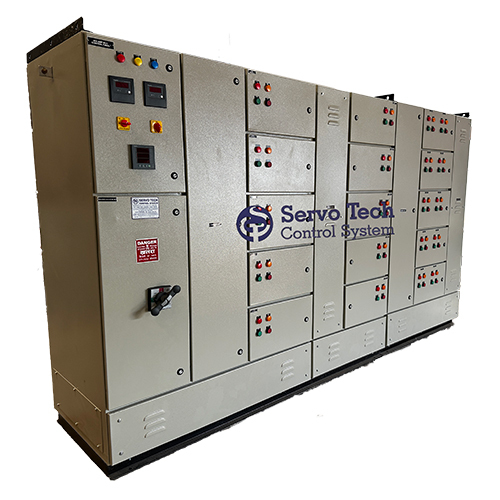

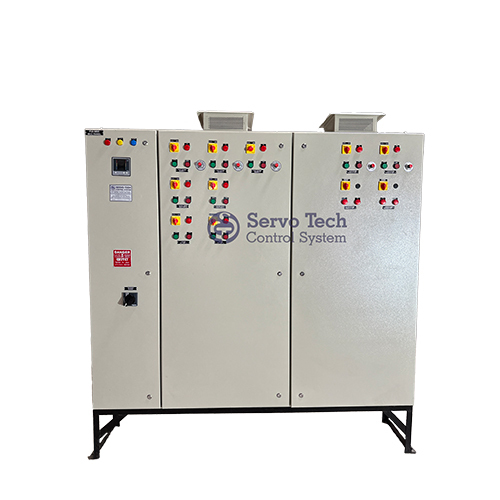

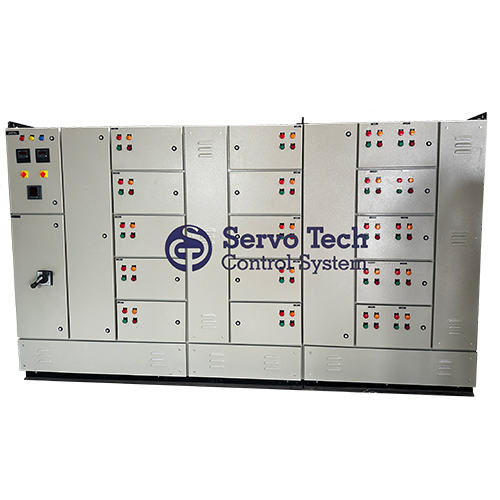

MCC Panel Manufacturer

Name: MCC Panel Manufacturer
Brand: SERVO TECH CONTROL SYSTEM
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MCC Panel Manufacturer Specification

Thickness
1.6 mm to 2.5 mm

Cover Material
MS Sheet with Powder Coating

Operating Voltage
415V AC

Rated Insulation Voltage
660V AC

Features
Modular Design, Compartmentalized, Cable Alley, Safe Operation

Current Rating
Up to 6300A

Way
Multiple Ways/Custom Configurable

Control System
Manual/Automatic (Optional)

Cooling System
Natural/Forced Air Ventilation

Protection Level
IP42 / IP52 / IP54

Cabinet Material
Powder Coated MS Sheet

Rated Current
630A to 6300A

Connectivity Type
Wired, Optional Remote Monitoring

Protection Class
Class I

Base Material
Mild Steel

Rated Operation Voltage
415V AC

Components
MCB/MCCB, Contactor, Overload Relays, Ammeters, Voltmeters, Indication Lamps

Panel Type
Floor Mounted, Compartmentalized

Product Type
Motor Control Center (MCC) Panel

Material
Other

Surface Finish
Epoxy Powder Coated

Standard
IEC 61439 / IS 8623

Surface Color
Gray/Off White (Powder Coated)

Rated Voltage
415V AC

Frequency (MHz)
50-60 Hz

Maximum Output Current
Up to 6300A

Dimension (L*W*H)
Custom (As per requirement)

Application
Industrial Motor Control, Utility Automation

Display Type
Analog/Digital Meters

Cable Entry
Top/Bottom Entry Options

Expandable
Yes, Modular Extensions Supported

Communication Protocol
Optional (MODBUS, PROFIBUS, Ethernet, etc.)

Operating Temperature Range
-10C to +55C

Enclosure Type
Indoor/Outdoor

Panel Form
Form 2, Form 3, Form 4 (as per requirement)

Mounting Type
Floor Standing/Wall Mount (On request)

Seismic Resistance
Available on Request

Bus Bar Material
Electrolytic Grade Aluminum/Copper

Earthing
Dedicated Earthing Bus Provided

Bus Bar Insulation
Heat Shrinkable Sleeves

Ambient Temperature
Up to 50C

Main Incoming Switch
ACB/MCCB/Isolator/Changeover Switch

MCC Panel Manufacturer Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

MCC Panel Manufacturer About

Unlock the paragon of industrial motor control with our glorious MCC Panel, meticulously engineered for unmatched performance and safety. Grab the opportunity to buy online and experience meritorious reliability with bus bars crafted from electrolytic grade aluminum/copper and insulated with heat shrinkable sleeves. This modular, compartmentalized panel supports custom dimensions, top/bottom cable entry, and flexible mounting. Suitable for both indoor and outdoor use, it features dedicated earthing, robust epoxy powder coating, and compliance with IEC 61439/IS 8623. Expandable and earthquake-resistant upon request, it's the preferred choice of manufacturers and utility providers across India.

Versatile Applications, Primed for Performance

Our MCC Panel is widely used by industrial operators, utilities, and automation experts demanding safe and efficient control. The machine boasts features such as modular extensions, compartmentalized build, dedicated earthing, and options for both manual and automatic control. Designed for flexible usage, it accommodates top or bottom cable entry and offers both floor standing and wall-mount configurations, adapting to varied environments and user requirements without compromising protection and reliability.

Sample Policy & Domestic Market Reach

We operate a transparent sample dispatching policy. Clients can make an asking price inquiry for samples before supply. Our main domestic market is India, ensuring timely dispatch and comprehensive service all over the country. Each MCC Panel is meticulously certified, complying with standards such as IEC 61439 and IS 8623, guaranteeing quality and safety in every supply dispatched to your site.

FAQ's of MCC Panel:

Q: How does the MCC Panel ensure safety in industrial environments?

A: The MCC Panel integrates compartmentalized sections, dedicated earthing, and robust insulation to maximize operational safety while complying with Class I protection and international standards.

Q: What are the available bus bar materials, and how do they benefit operation?

A: Bus bars are available in electrolytic grade aluminum or copper, providing optimal conductivity, reduced losses, and enhanced long-term reliability for demanding electrical loads.

Q: When should the IP42/IP52/IP54 protection level be selected?

A: The protection level depends on environmental factors; IP42 suits basic indoor applications, while IP52/IP54 are recommended for areas requiring dust and water ingress protection, including outdoor or rugged industrial settings.

Q: Where can this MCC Panel be installed?

A: The panel is suitable for both indoor and outdoor installations with configurations for floor-standing or wall-mounting (upon request), allowing placement flexibility within different industrial setups.

Q: What modular features does the MCC Panel offer for future expansion?

A: It supports modular extensions, multiple ways, and customizable dimensions, making it easy to accommodate future expansion needs without extensive rewiring or panel replacement.
