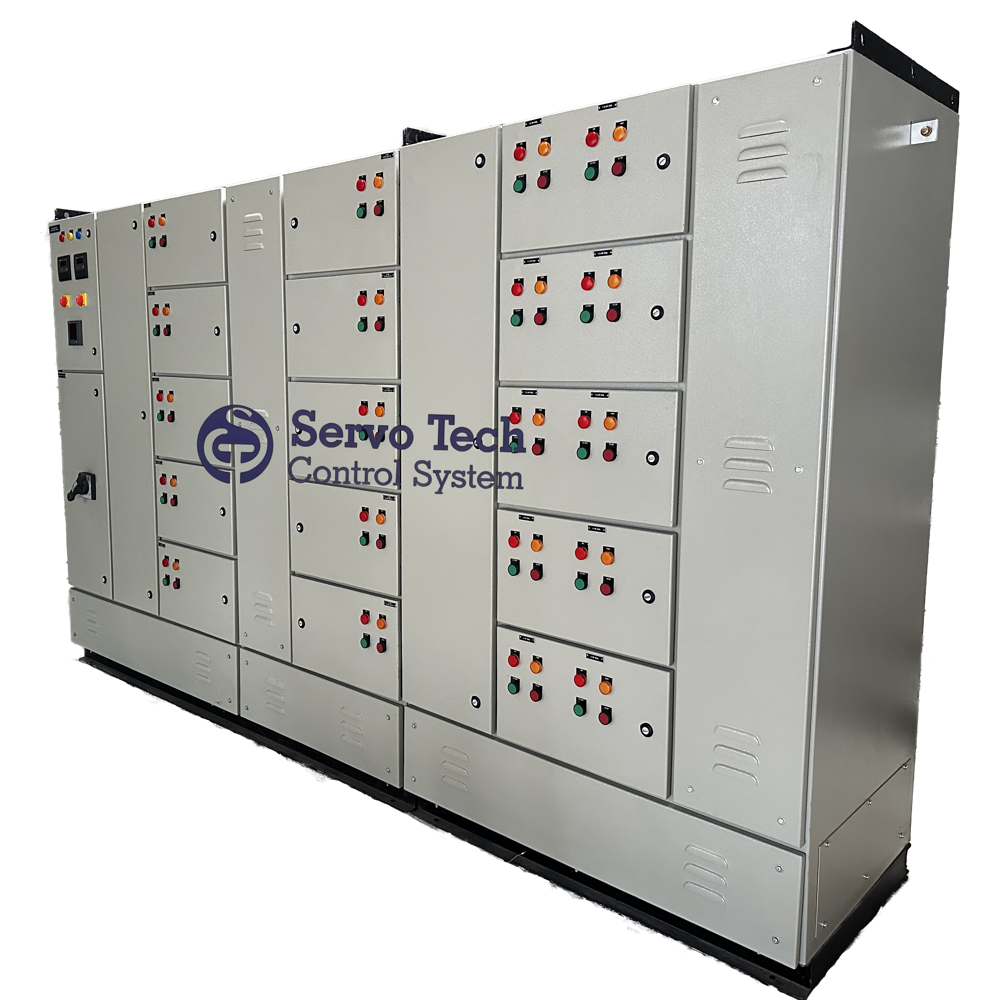

Motor Control Center Panel

Name: Motor Control Center Panel
Brand: SERVO TECH CONTROL SYSTEM
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Motor Control Center Panel Specification

Rated Current
Upto 6300 A

Cooling System
Air Ventilated / Forced Cooling

Base Material
Mild Steel Sheet

Control System
Manual / Automatic

Current Rating
Upto 6300 A

Connectivity Type
Terminal / Busbar

Protection Level
High

Operating Voltage
415 V AC

Protection Class
Class I

Way
Upto 24 Way

Rated Insulation Voltage
1000 V

Features
Corrosion Resistant, Modular Design, Robust Construction

Rated Operation Voltage
690 V

Thickness
2 mm

Cover Material
Mild Steel / Powder Coated Steel

Panel Type
MCC (Drawout/Fixed Type)

Cabinet Material
CRCA Sheet Steel

Components
MCB, MCCB, Contactors, Overload Relays, Ammeters, Voltmeters

Product Type
Motor Control Center Panel

Material
Mild Steel

Surface Finish
Polish

Standard
IEC 61439, IS 8623

Surface Color
Grey

Rated Voltage
415 V AC

Frequency (MHz)
50 Hz

Maximum Output Current
6300 A

Dimension (L*W*H)
As Per Requirement

Application
Industrial Motor Control, Power Distribution

IP Rating
IP42 / IP54 / IP55 (as required)

Display Type
Analog / Digital Meters

Auxiliary Supply
230 V AC / 24 V DC

Insulation Material
Epoxy / Polyester Powder Coated

Earthing
Provided as per Standards

Fire Resistance
Flame Retardant Construction

Busbar Material
Electrolytic Grade Copper / Aluminum

Mounting Type
Floor Mounted / Wall Mounted

Enclosure Type
Compartmentalized Construction

Degree of Automation
Semi / Fully Automatic (Optional)

Short Circuit Withstand Capacity
Up to 65 kA for 1 second

Ambient Operating Temperature
-10C to +55C

Door Type
Front Access Double Door

Interlocking
Mechanical / Electrical Interlock

Panel Weight
As per Design

Cable Entry
Top / Bottom

Service Life
>10 Years Under Standard Conditions

Motor Control Center Panel Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
10 Units Per Week

Delivery Time
3 Week

Sample Policy
Contact us for information regarding our sample policy

Main Domestic Market
Gujarat, Madhya Pradesh, Maharashtra, Rajasthan

About Motor Control Center Panel

Owing to our wide experience, our company is regarded as the cardinal manufacturer and supplier of Motor Control Center Panel. These panels are widely used in diverse industries for lighting purpose. Our offered distribution panels are made using excellent quality materials and components. Well-known among our clients for its compartmental group controlled system, greater illumination and easy installation, we are offering these panels to our clients in diverse specifications. Furthermore, clients can get Lighting Motor Control Center Panel from us at unbeatable prices.

Motor Control Centre Panel

Fix / Draw out Type MCC, Motor control center with DOL / RDOL / SD starters. Various designs provided like single / Double Front, Fixed / Draw out type, with DCS / Marshaling terminations. Required control voltage facilities with control transformer, control bus. All starters are provided with type 2 co-ordinations where required.

For More details : Download the PDF file

Specification

Automation Grade	Manual, Semi-Automatic, Automatic
Cable Entry	Bottom, Top
Condition	New
Current(Amps)	according to requirement.
Display Type	Digital
Frequency(Hz)	50 hz
IP Rating	IP 55, IP 40, IP 44, IP 65
Output Voltage(Volt)	440 volt
Phase	Three Phase
Power(Kilowatt)	according to requirement.

Adaptable and Robust Construction

This MCC panel is engineered from CRCA sheet steel and finished with either epoxy or polyester powder coating, providing high corrosion resistance and robust performance in demanding industrial environments. Its modular, compartmentalized design supports both floor and wall mounting, offering flexibility to accommodate diverse installation requirements and maintenance accessibility.

Superior Safety and Compliance

Safety is prioritized with built-in flame retardant features, standardized earthing, and protection ratings up to IP55. The MCC panel meets international (IEC 61439) and national (IS 8623) standards, integrating mechanical and electrical interlocks, high withstand capacity, and double-door design for secure, organized operation and advanced operator protection.

Comprehensive Control and Automation

Offering both manual and automatic operation, the MCC panel incorporates essential components such as MCBs, MCCBs, contactors, overload relays, as well as analog or digital meters for precise monitoring. The advanced control system ensures seamless integration with auxiliary supplies and supports reliable, long-term motor and power control in industrial facilities.

FAQ's of Motor Control Center Panel:

Q: How is the MCC panel installed within an industrial environment?

A: The MCC panel is designed for flexible installation, supporting both floor-mounted and wall-mounted configurations. Its modular, compartmentalized construction ensures straightforward setup and easy access for maintenance or monitoring. Cable entries can be arranged from the top or bottom for convenient connectivity, based on site requirements.

Q: What are the main benefits of using electrolytic grade copper or aluminum busbars in this panel?

A: Electrolytic grade copper or aluminum busbars offer excellent electrical conductivity and mechanical strength, reducing power losses and ensuring reliable operation even under high load or fault conditions. They help the MCC panel achieve high short circuit withstand capacity of up to 65 kA for 1 second, making it suitable for demanding industrial applications.

Q: When should I choose between semi-automatic and fully automatic control options?

A: The choice depends on operational needs. Semi-automatic panels suit environments where manual intervention is necessary, providing control flexibility. Fully automatic panels are ideal for processes requiring minimal human oversight, increasing efficiency and safety through automated operations. Both options ensure effective motor and power management.

Q: Where is the MCC panel most commonly utilized, and for what applications?

A: The MCC panel is widely used in industrial environments such as manufacturing plants, process industries, and utilities. Its primary applications are motor control, power distribution, process regulation, and integration with machinery requiring reliable starting, protection, and monitoring.

Q: What process ensures the safety and durability of this MCC panel?

A: The panel is built with flame retardant construction, mechanical and electrical interlocking, and utilizes epoxy or polyester powder-coated surfaces to resist corrosion. It complies with IEC 61439 and IS 8623 standards, is designed for a lifespan exceeding 10 years under standard conditions, and features compartmentalization for improved fault isolation and safety.

Q: How does the MCC panel help with operational monitoring and maintenance?

A: Equipped with analog or digital meters for ammeters and voltmeters, the panel allows real-time monitoring of electrical parameters. The front-access double door design and compartmentalized layout enable easier and safer maintenance while minimizing downtime, ensuring continuous and efficient operation.
