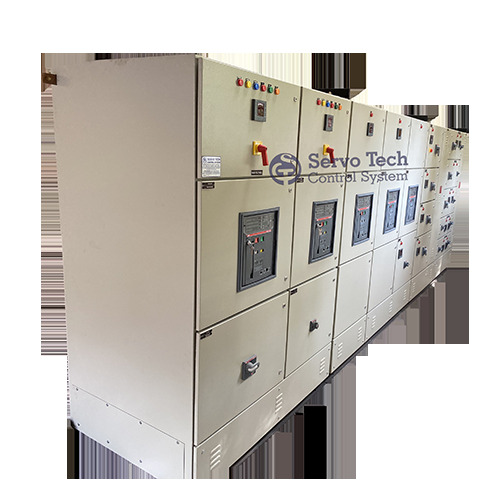

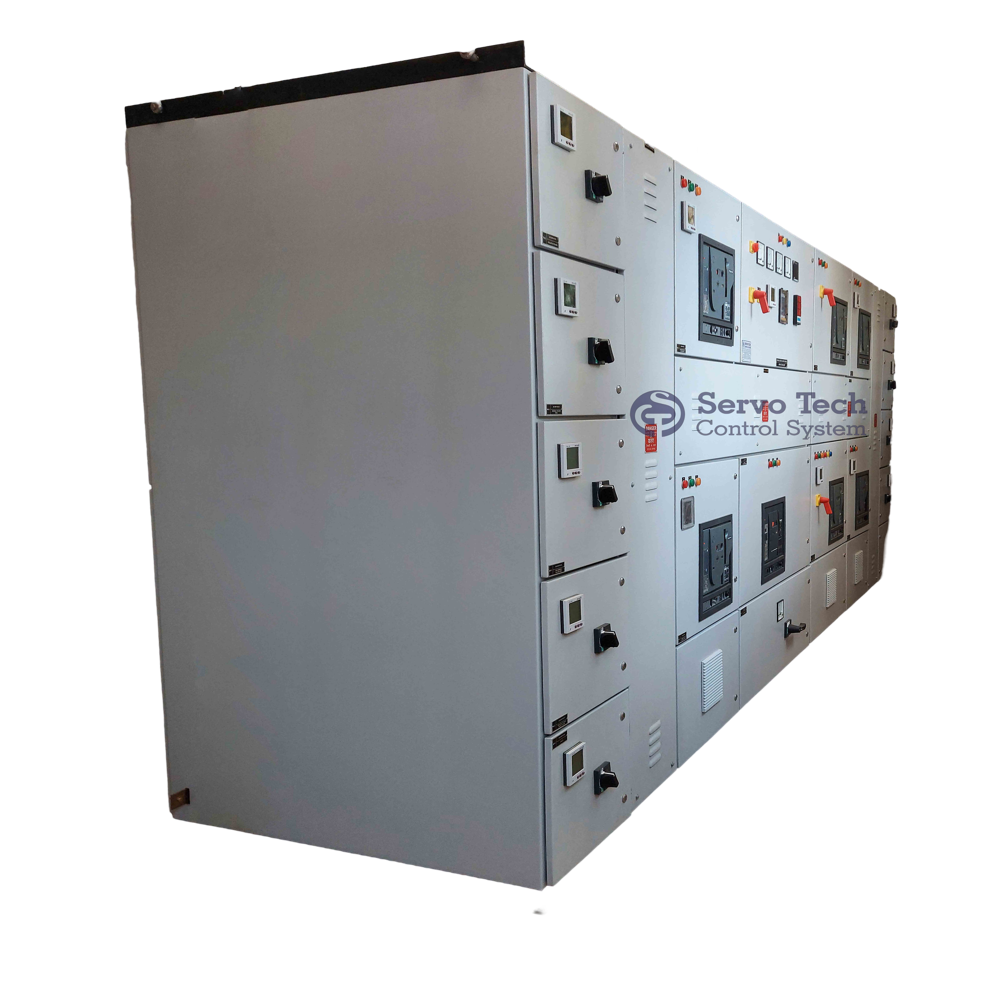

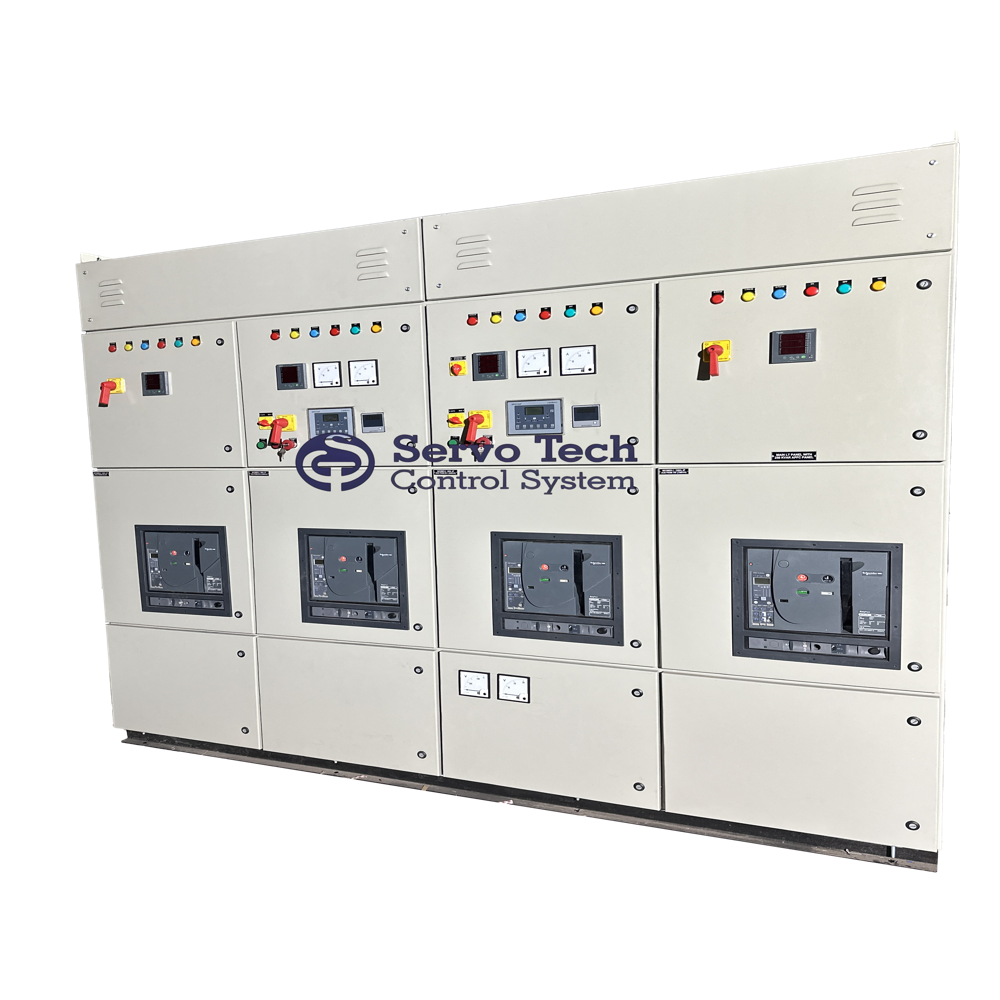

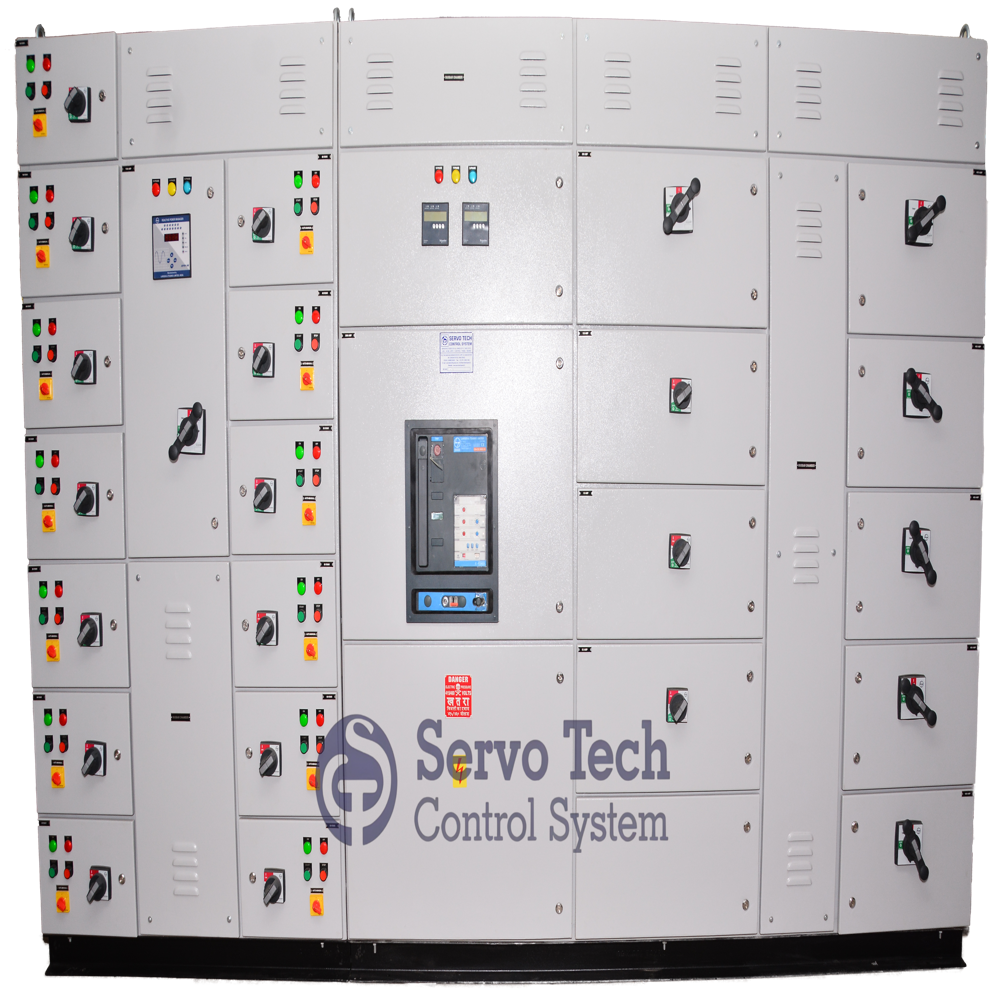

PCC Panel

Name: PCC Panel
Brand: SERVO TECH CONTROL SYSTEM
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PCC Panel Specification

Rated Current
Up to 6300A

Features
Short circuit and overload protection, modular design, easy maintenance

Rated Insulation Voltage
690V

Control System
Manual / Automatic

Way
Multi-Way (as per design)

Cabinet Material
Powder Coated CRCA Sheet

Current Rating
Up to 6300A

Operating Voltage
415V AC

Connectivity Type
Cable / Bus Duct Entry

Protection Class
Class 1

Cover Material
Mild Steel with Glass/acrylic Window

Rated Operation Voltage
415V AC

Thickness
1.6 - 2.0 mm

Cooling System
Natural / Forced Air Cooling

Protection Level
IP42 / IP54

Panel Type
Floor Mounted

Components
MCB, MCCB, ACB, Metering, Relays, Current Transformers, Busbars

Base Material
Mild Steel

Product Type
Power Control Center (PCC) Panel

Material
Other

Surface Finish
Epoxy Powder Coated

Standard
IS 8623 / IEC 60439

Surface Color
Powder Coated Off-White

Rated Voltage
415V AC

Frequency (MHz)
50 Hz

Maximum Output Current
Up to 6300A

Dimension (L*W*H)
Customizable as per requirement

Application
Industrial Power Distribution

Display Type
Analog / Digital Meter

Mounting Type
Floor Standing

Construction
Double Door/Compartmentalized

Busbar Material
Electrolytic Copper / Aluminum

Earth Bar
Provided Continuous Running

Door Lock Type
Cam Lock

Ambient Temperature Range
-10C to +55C

Gasket Material
Neoprene Rubber

Enclosure Type
Sheet Metal

Painting Type
Seven Tank Process

PCC Panel Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

About PCC Panel

Experience valiant power distribution with our top-tier PCC PANEL, built for industrial use with favorable reviews from leading manufacturers and suppliers across India. Crafted from durable mild steel and equipped with either electrolytic copper or aluminum busbars, this glorious, floor-standing unit features a double-door, compartmentalized construction for enhanced safety. Featuring a customizable dimension, robust cam lock doors, continuous earth bar, and IP42/IP54 protection, it's engineered for reliability in ambient temperatures from -10C to +55C. Get it now and benefit from a modular design, easy maintenance, and both manual or automatic control.

Specialized Industrial Applications

PCC PANELs are crucial for industrial power distribution, ensuring safe and efficient electricity flow across various applications. Designed for floor mounting, these panels are compatible with both cable and bus duct entry systems. The robust epoxy powder-coated off-white finish ensures longevity and resistance to demanding work environments. Whether you require multi-way configurations or compartmentalized layouts, our PCC PANEL's customizable build fits the most rigorous surface applications in heavy industries and high-load facilities, providing dependable and uninterrupted operational use.

Comprehensive Sample Policy, Certifications, and Quick Delivery

Our PCC PANEL comes with a transparent sample policy, minimizing initial expenditure while evaluating product suitability. Certified to top standards, including IS 8623 and IEC 60439, quality and compliance are assured. With meticulous logistics planning and efficient operations, delivery time is streamlined for quick arrival, reducing downtime for your projects. You can expect professional assistance from order processing through to delivery, ensuring a smooth experience and reassuring clients with timely dispatch and tracking.

FAQ's of PCC PANEL:

Q: How does the PCC PANEL ensure safety and durability in industrial environments?

A: The PCC PANEL features a double-door, compartmentalized design, constructed with powder-coated mild steel and fitted with a continuous running earth bar. It adheres to IP42/IP54 protections and incorporates components like MCB, MCCB, and ACB for both overload and short-circuit protection, ensuring operational safety and resilience.

Q: What customization options are available for the PCC PANEL?

A: You can customize the dimensions, internal layout, busbar material (copper or aluminum), and other specifications such as entry type (cable or bus duct), cooling systems, and display meters to meet unique operational requirements.

Q: Where are PCC PANELS typically used and what is their surface application?

A: PCC PANELS are widely used in industrial power distribution systems, especially in large manufacturing units, plants, and critical power infrastructure. Their powder-coated, CRCA sheet-metal surfaces withstand harsh environments, ensuring long-term service.

Q: What is the standard process for ordering and receiving a PCC PANEL?

A: After placing an order, you'll receive confirmation and updates throughout the manufacturing and logistics stages. The panel is produced to your specifications, checked for quality and certifications, and shipped for prompt arrival as per agreed timelines.

Q: What are the main benefits of using a top-tier PCC PANEL?

A: Key advantages include reliable power distribution, enhanced protection against faults, modular design for easy maintenance, favorable reviews for performance, and the assurance of compliance with stringent quality standards.
