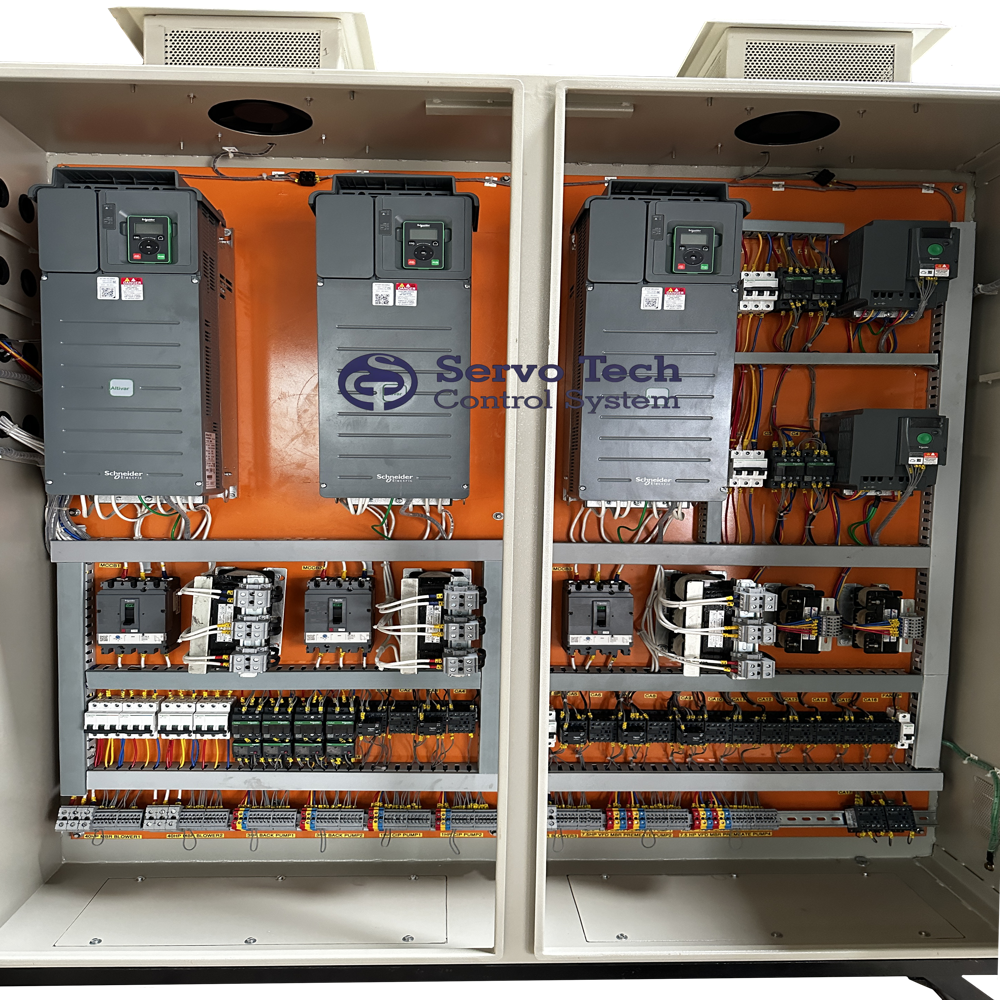

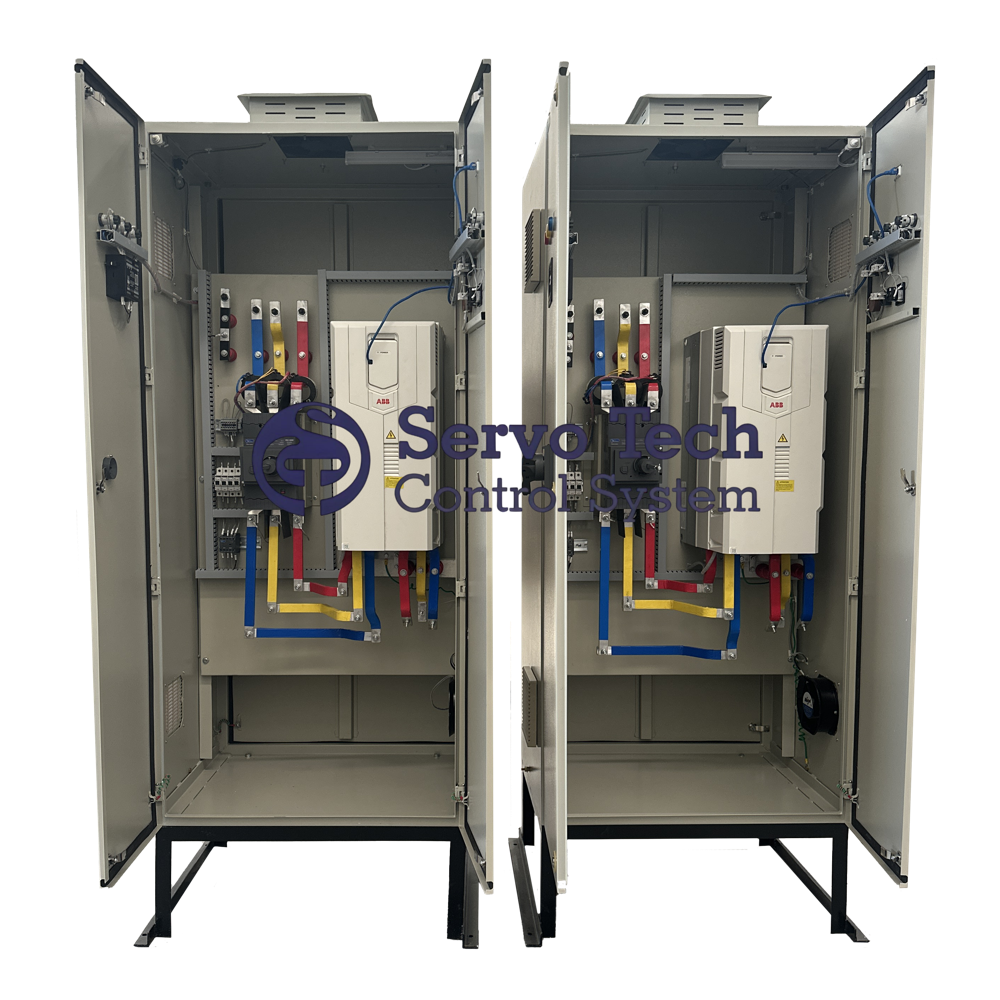

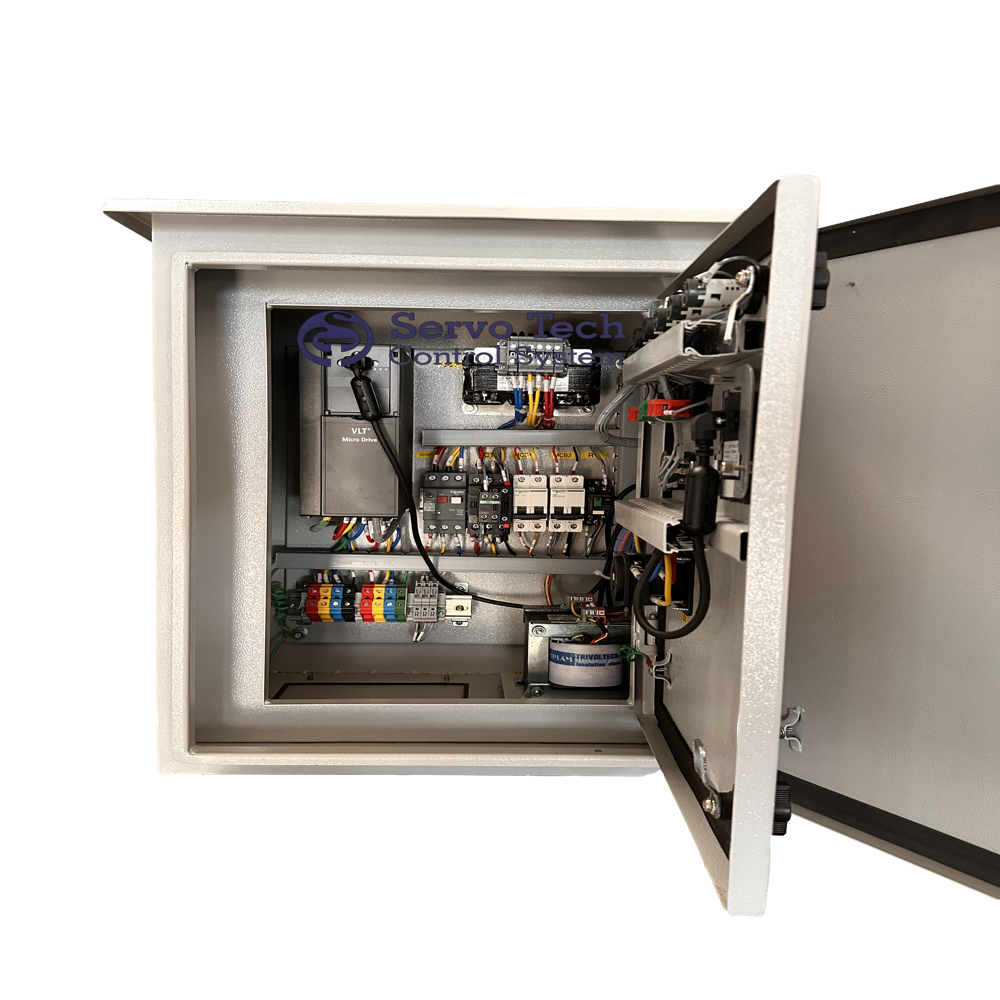

VFD Panel

Name: VFD Panel
Brand: SERVO TECH CONTROL SYSTEM
Price: 30000.0 INR
Availability: InStock

Price 30000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

VFD Panel Specification

Thickness
2.0 mm

Rated Insulation Voltage
690 V AC

Components
MCB, MCCB, Contactors, Relays, VFD Drives

Cover Material
Polycarbonate / Powder Coated MS

Features
Modular construction, Easy maintenance, Corrosion resistant

Cabinet Material
CRCA Steel

Way
Multiple Ways (Configurable)

Control System
Manual / Auto (PLC Compatible)

Protection Level
IP42 / IP54

Operating Voltage
415 V AC

Cooling System
Ventilation Fans / Natural Air Cooling

Rated Current
Up to 630 A

Connectivity Type
Wired/RS485/Ethernet

Panel Type
Floor Mounted

Current Rating
Up to 630 A

Rated Operation Voltage
415 V AC

Base Material
Mild Steel

Protection Class
Class 1

Product Type
VFD Panel / MCC Panel

Material
Other

Surface Finish
Powder Coated

Standard
IEC 61439, IS 8623

Surface Color
RAL 7035 (Grey)

Rated Voltage
415 V AC

Frequency (MHz)
50/60 Hz

Maximum Output Current
400 A

Dimension (L*W*H)
Customizable as per requirement

Application
Industrial Motor Control, Pumps, HVAC, Conveyors

Display Type
LCD/LED Indication

Bus Bar Material
Electrolytic Grade Copper / Aluminum

Mounting Type
Floor / Wall Mounting Options

Metering
Digital Ammeter, Voltmeter, Multifunction Meter

Logic Interface
PLC Compatible

Short Circuit Withstand Capacity
Up to 50 kA for 1 sec

Cable Entry
Top / Bottom Entry

Operating Ambient Temperature
-10C to +55C

Power Supply
Auxiliary 230V AC / 24V DC

VFD Panel Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Week

Delivery Time
7 Days

VFD Panel About

Unveil the remarkable prowess of our sizzling VFD PANELS and MCC PANELS, engineered for ephemeral performance and enduring efficiency. Buy state-of-the-art solutions with opulent features, including modular construction, IP42/IP54 protection, and robust CRCA sheet steel. Choose from floor or wall mounting, with bus bars fashioned from electrolytic grade copper or aluminum and digital metering for precision. These panels withstand short circuits up to 50 kA, operate seamlessly from -10C to +55C, and are PLC compatible. Remarked for their versatile configuration, they are perfect for industrial motor control, pumps, conveyors, and HVAC applications.

Versatile Applications and Methodical Usage

Our VFD PANEL or MCC PANEL is designed for both manual and automated usage, suiting diverse industrial environments. Application methods are straightforward: mount it as a floor-standing or wall unit, according to your site's layout. Specific usage includes the streamlined control of motors, pumps, conveyors, and HVAC systems, where reliable distribution and protection are crucial. It's ideal for both new installations and upgrades, offering adaptable cable entry and customizable sizing to meet precise requirements.

Swift Delivery, Recognized Certifications, and Sample Policy

Each panel is dispatched swiftly using reliable transport services to ensure timely delivery. We offer full IEC 61439 and IS 8623 certifications, underlining our commitment to safety and quality. Our sample policy is flexible-simply contact us to discuss tailored options for sampling. With efficient logistics and responsive support, we assist in selecting the right panel solution for your needs, guaranteeing every order meets international standards and client expectations.

FAQ's of VFD PANEL OR MCC PANEL:

Q: How can I mount the VFD PANEL or MCC PANEL at my facility?

A: The panels offer both floor and wall mounting options. Choose the method that best suits your facility layout for easy installation and optimal space utilization.

Q: What are the main applications of these panels?

A: These panels are primarily used for controlling and protecting industrial motors, pumps, HVAC units, and conveyors in diverse manufacturing and automation environments.

Q: When will my panel be delivered after purchase?

A: Panels are typically dispatched within a mutually agreed timeline using reliable transport services to ensure safe and prompt delivery to your location.

Q: Where do you supply your panels from?

A: We are a manufacturer and supplier based in India, serving clients nationwide and internationally with high-quality VFD and MCC panel solutions.

Q: What is the short circuit withstand capacity of these panels?

A: The panels are engineered for durability, boasting a short circuit withstand capacity of up to 50 kA for 1 second, ensuring robust operational safety.

Q: How do I benefit from the digital metering and PLC compatibility?

A: Digital metering (ammeter, voltmeter, multifunction meter) provides accurate monitoring, while PLC compatibility streamlines integration with automated systems, enhancing efficiency and diagnostics.
