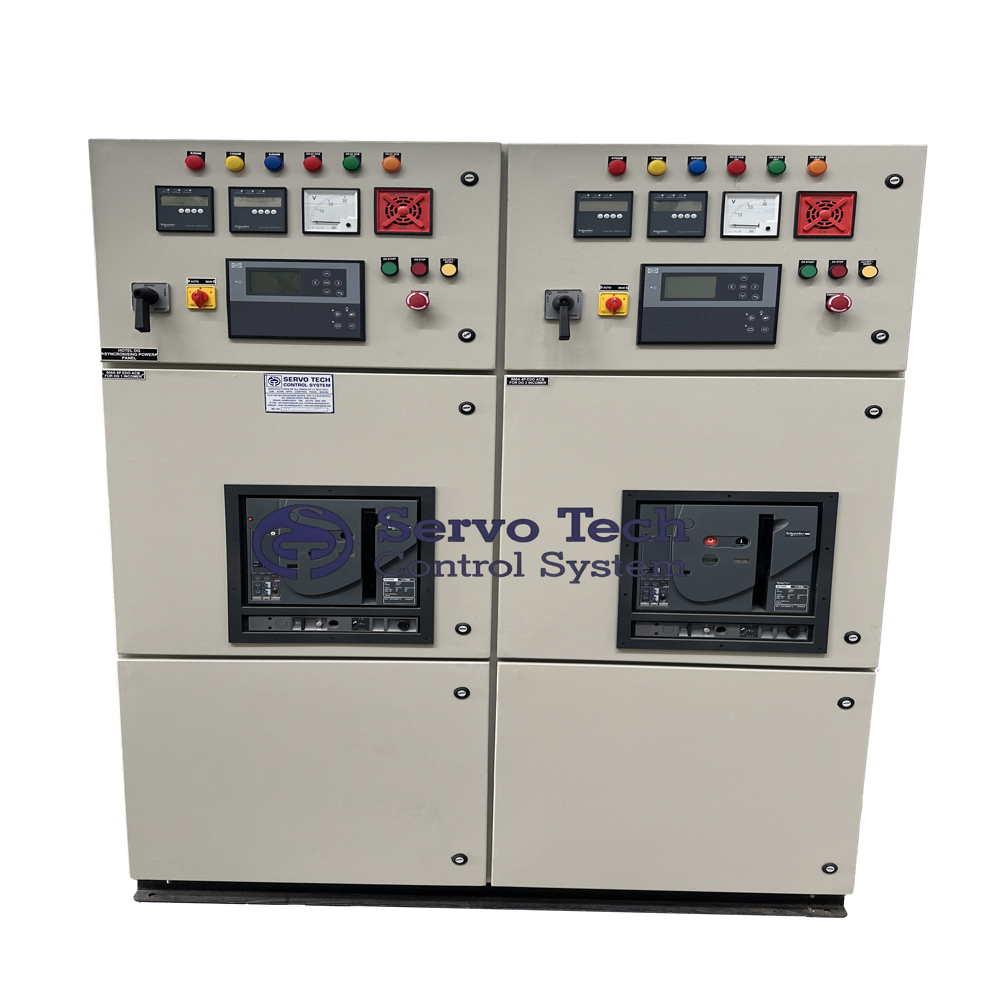

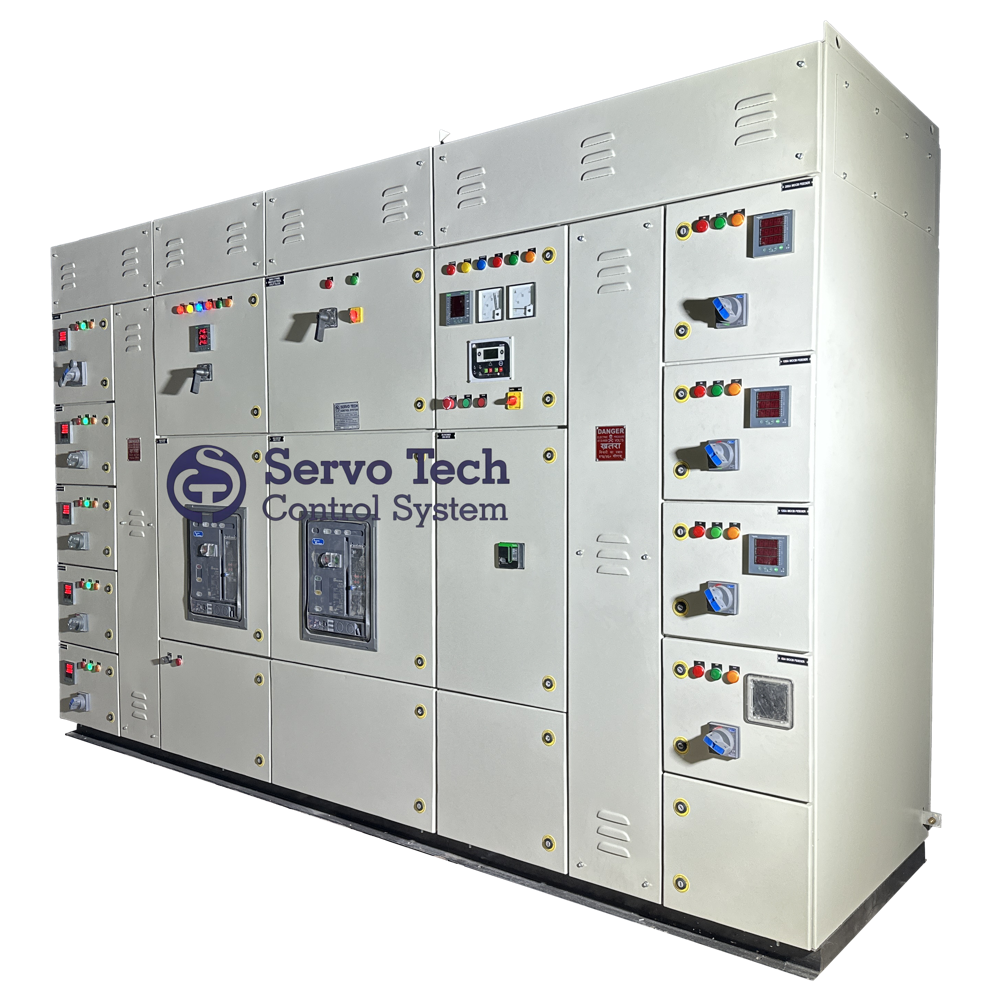

ATS PANEL

Name: ATS PANEL
Brand: SERVO TECH CONTROL SYSTEM
Price: 70000.0 INR
Availability: InStock

Price 70000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

ATS PANEL Specification

Cooling System
Natural Air Cooling

Thickness
2 mm Meter

Control System
Microprocessor Based Controller

Protection Class
Class I

Rated Current
Up to 1600A Ampere (amp)

Operating Voltage
415V AC Volt (V)

Features
Automatic/Manual Selection, Auto Transfer, Safety Interlocks, Overload Protection

Panel Type
Floor Mounted

Protection Level
IP54

Cabinet Material
Mild Steel

Way
Three Phase

Rated Operation Voltage
415V AC

Base Material
Other

Connectivity Type
Hardwired

Current Rating
Up to 1600A

Cover Material
Other

Rated Insulation Voltage
1100V

Components
Contactor, Control Relay, MCCB, Terminal Blocks, MCB, Indication Lamps

Product Type
Other

Material
Other

Surface Finish
Powder Coated

Standard
IEC 60947-6-1

Surface Color
Other

Rated Voltage
415V AC Volt (V)

Frequency (MHz)
50 Hz Hertz (HZ)

Maximum Output Current
1600A Ampere (amp)

Dimension (L*W*H)
1200mm x 800mm x 400mm Millimeter (mm)

Application
Industrial, Commercial, Data Centers

IP Rating
Ip54

Auxiliary Supply
230V AC

Busbar Material
Electrolytic Copper

Service Type
Indoor

Mounting Type
Floor Standing

Enclosure Type
Dust and Vermin Proof

Operating Temperature
-10C to +55C

ATS PANEL Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Delivery Time
2 Week

Main Domestic Market
Maharashtra

About ATS PANEL

An ATS (Automatic Transfer Switch) panel is a critical component in power management systems, designed to ensure a reliable supply of electricity by automatically switching between different power sources. Here is a technical description:

Components:

1. Input Power Sources

- Utility Power The primary source of electrical power from the grid.

- Backup Power Typically a generator or alternate source.

2. Transfer Switch

- Mechanism to switch power sources seamlessly, ensuring continuous power supply.

3. Control Logic

- Microprocessor or relay-based system that monitors power conditions and controls the transfer switch operation.

4. Monitoring and Indicators

- Displays for voltage, frequency, load, and operational status.

- Alarms for fault conditions (eg loss of utility power, generator failure)

5. Enclosure

- A weatherproof or dustproof housing that protects components and allows for safe operation.

6. Safety Features

- Overload protection, short-circuit protection, and interlocks to prevent simultaneous connection of both power sources.

Operation:

1. Normal Condition

- The ATS continuously monitors the utility power. If conditions are stable, power is supplied to the load.

2. Utility Failure

- Upon detecting a loss of utility power, the ATS sends a signal to start the backup generator.

- After the generator reaches a stable operating condition, the ATS switches the load to the generator.

3. Restoration

- Once the utility power is restored and stable, the ATS switches the load back to the utility source and stops the generator.

Applications:

- Critical facilities (hospitals, data centers) where uninterrupted power is essential.

- Commercial buildings and industrial operations that require reliable power management.

Standards:

- Compliance with national and international standards (e.g UL 1008, IEC 60947) for safety and performance.

Advantages:

- Automatic operation reduces downtime.

- Protection against power interruptions.

- Improved efficiency in power management.

This description provides a comprehensive overview of the ATS panel, highlighting its functionality and importance in modern electrical systems. If you need more specific details or have a particular application in mind, let me know!

Advanced Safety and Protection Features

This ATS Panel prioritizes operational safety with built-in overload protection, safety interlocks, and Class I protection class, all conforming to IEC 60947-6-1 standards. The enclosure design ensures it remains dust and vermin proof, while the IP54 rating adds an extra layer of environmental security, making it ideal for indoor installation.

Seamless Power Switching with Flexible Control

Equipped with a microprocessor-based controller, the ATS Panel offers both automatic and manual transfer modes. LED indication or analog meters provide clear, real-time system monitoring. In the event of power outages, the panel ensures a smooth transition between main and backup power, minimizing downtime in critical operations.

Purpose-Built for Demanding Applications

Designed to meet the needs of industrial operations, commercial infrastructures, and data centers, this panel delivers dependable power control. Its rugged construction, natural air cooling system, hardwired connectivity, and customizable auxiliary supply support a variety of applications, ensuring uninterrupted electrical service in high-demand situations.

FAQ's of ATS PANEL:

Q: How does the ATS Panel facilitate automatic power switching?

A: The ATS Panel utilizes a microprocessor-based controller to detect power failures or quality issues. Upon sensing a problem with the primary supply, it automatically switches the load to a backup source, ensuring continuous power delivery without manual intervention.

Q: What are the main benefits of using a floor-standing ATS Panel for industrial and commercial settings?

A: A floor-standing ATS Panel offers robust power management, enhanced safety features like overload protection and interlocks, and is built to withstand harsh indoor environments. It ensures uninterrupted operation, reduces downtime, and is suitable for large-scale electrical loads up to 1600A.

Q: When should an ATS Panel be used in a data center environment?

A: An ATS Panel is ideal for data centers where uninterrupted power is critical. Use it to automatically transfer the load to an alternate power source during outages or maintenance, thereby protecting sensitive equipment and avoiding costly downtime.

Q: Where can the ATS Panel be installed, considering its protection and construction?

A: This ATS Panel is designed for indoor installation in locations such as industrial plants, commercial buildings, and data centers. The IP54 protection and dust/vermin-proof enclosure make it suitable for environments where equipment faces exposure to particulates or accidental spills.

Q: What are the typical process steps for installing and connecting the ATS Panel?

A: Installation involves securely mounting the floor-standing panel, connecting the incoming and outgoing cables, configuring the microprocessor-based controller according to your requirements, and testing all safety and indication features to ensure proper functionality before energizing the system.

Q: How is the ATS Panel maintained over time for optimal performance?

A: Routine maintenance includes periodic inspection of electrical connections, checking the operation of the transfer switch and safety interlocks, cleaning the enclosure's exterior, and ensuring all control and display components function correctly. This helps maintain system reliability and extends the panel's service life.
