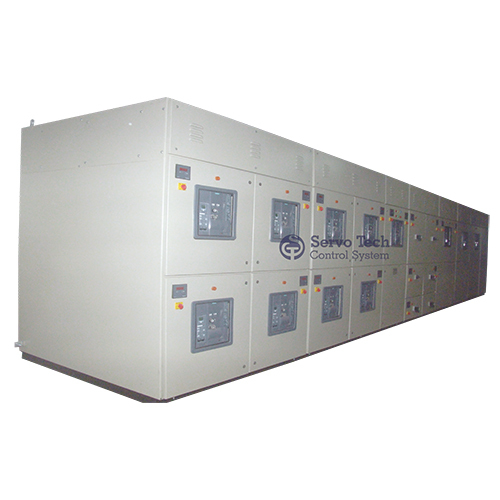

PCC Panel

Name: PCC Panel
Brand: SERVO TECH CONTROL SYSTEM
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PCC Panel Specification

Protection Class
Class I

Rated Current
Up to 6300A

Panel Type
Indoor / Outdoor

Current Rating
Up to 6300A

Way
3 Way, 4 Way, Custom Configurations

Base Material
Other

Connectivity Type
Hardwired / SCADA Compatible

Features
Modular Design, Rust Proof, Fire Retardant, Maintenance Friendly

Cover Material
Powder Coated Steel

Protection Level
IP42 / IP52 / IP54 / IP65

Rated Operation Voltage
415V

Components
MCB, MCCB, ACB, Indicators, Meters, Busbar, CT, PT, Relays, Terminal Blocks

Operating Voltage
415V

Rated Insulation Voltage
690V

Cabinet Material
Powder Coated CRCA Sheet

Thickness
1.6 mm to 2.5 mm

Cooling System
Naturally Ventilated / Forced Cooling

Control System
Manual / Automatic

Product Type
Power Control Center (PCC) Panel

Material
Other

Surface Finish
Powder Coated

Standard
IS 8623 / IEC 61439

Surface Color
Powder Coated Grey / Off-White

Rated Voltage
415V AC

Frequency (MHz)
50 Hz

Maximum Output Current
Up to 6300A

Dimension (L*W*H)
As per Client Requirement

Application
Industrial Power Distribution

Display Type
Analog & Digital Meters

Operation
Front/Rear Access

Construction
Compartmentalized / Non-compartmentalized

Neutral Bar
Provided

Mounting Type
Floor Mounted

Door Type
Single/Double Door with Gasket

Panel Weight
As per Size & Configuration

Earthing Provision
Double Earth Bus Provided

Service Life
Up to 15 Years with Proper Maintenance

Finish Type
Matt / Texture

Busbar Material
Electrolytic Copper / Aluminum

Short Circuit Withstand Capacity
Up to 50kA

Cable Entry
Top / Bottom

Interlocking
Mechanical & Electrical Interlocking

Ambient Temperature Range
-5C to +50C

Feeder Configuration
Draw-out / Fixed

PCC Panel Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Week

Delivery Time
7 Days

PCC Panel About

Access the famed PCC Panel for extraordinary industrial power distribution, built for longevity and exceptional safety. Engineered with an opulent selection of features-modular design, rust-proof construction, and advanced fire retardance-this panel withstands short circuits up to 50kA and supports up to 6300A current at 415V. Order today to benefit from front/rear access, SCADA compatible connectivity, and robust protection ratings (up to IP65). With a service life of up to 15 years, this cutting-edge solution ensures seamless operations in any demanding environment. Order your bespoke panel from the premier supplier in India.

Versatile Use and Commercial Applications of PCC Panel

Designed for heavy-duty industrial use, the PCC Panel serves as the backbone for seamless power distribution in manufacturing plants, process industries, commercial complexes, and infrastructure projects. Used as the main power control hub, it directs, manages, and protects electrical circuits. Its flexibility enables usage in both indoor and outdoor environments, meeting stringent commercial demands and adapting to diverse configurations required by modern industrial facilities.

Estimate Delivery, Payment Terms, and Supply Capability

The estimated delivery time for your PCC Panel depends on your specific order requirements, size, and configuration. Once the order is placed, completion timelines are promptly communicated, ensuring transparency at every stage. Payment terms are flexible to suit client preferences, supporting streamlined transactions. With robust supply ability, large and custom orders are both quickly processed and shipped across India, guaranteeing your project proceeds without unnecessary delay.

FAQ's of PCC Panel:

Q: How does the PCC Panel ensure safety and reliability during operation?

A: The PCC Panel employs mechanical and electrical interlocking, high-grade electrolysis copper or aluminum busbars, and fire-retardant, rust-proof construction to provide extraordinary safety and operational reliability.

Q: What is the process for ordering a custom-configured PCC Panel?

A: Simply access the product catalog, specify your unique size, configuration, and operational requirements, and place your order. Our specialists will manage the design, fabrication, and shipping, ensuring seamless order completion.

Q: Where can PCC Panels be installed and used?

A: PCC Panels are suitable for both indoor and outdoor installations and excel in industrial, commercial, and infrastructure power distribution settings, adapting to top or bottom cable entry options.

Q: What are the commercial benefits of using a PCC Panel in an industrial setup?

A: Industrial users benefit from modular design, long service life up to 15 years, SCADA compatibility, and robust short circuit withstand capacity, ensuring safe and efficient power management.

Q: When can I expect my PCC Panel order to be shipped?

A: Order completion and shipping estimates are provided based on your requirements. Most standard and custom configurations are manufactured and shipped within industry-leading timelines to ensure prompt delivery.
