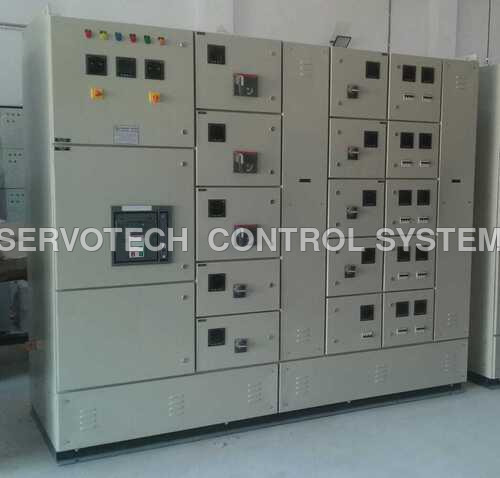

PCC Panel

Name: PCC Panel
Brand: SERVO TECH CONTROL SYSTEM
Price: 200000 INR
Availability: InStock

Price 200000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PCC Panel Specification

Operating Voltage
415V 3 Phase 50Hz

Rated Current
Upto 6300 Amps Ampere (amp)

Rated Insulation Voltage
690V

Protection Class
Class I

Thickness
1.6mm to 2.5mm

Connectivity Type
Wired / Optional Remote Monitoring

Way
Multiple Ways / Customizable

Cooling System
Natural Air / Forced Cooling / Ventilators

Panel Type
Floor Mounted / Fixed Type / Modular Type

Control System
Microprocessor / PLC based optional

Current Rating
6300 Amps Max

Features
High operational reliability, Modular construction, Enhanced safety, Easy maintenance

Base Material
Mild Steel

Rated Operation Voltage
415V AC

Cover Material
Mild Steel with Powder Coating

Cabinet Material
High-grade CRCA Steel

Components
Breakers, Busbars, Relays, Controllers, Metering Modules

Protection Level
IP42, IP54, IP55 (as per specification)

Product Type
Other

Material
Mild Steel

Surface Finish
Powder Coated

Standard
IEC 61439 / IS 8623

Surface Color
Siemens Grey (RAL 7032)

Rated Voltage
415 Volt (V)

Frequency (MHz)
50 Hz

Maximum Output Current
6300A

Dimension (L*W*H)
Customizable as per requirement

Application
Industrial Power Distribution, Motor Control, Utility Management

IP Rating
IP42 / IP54 / IP55

Display Type
Digital/Analog Meters, LED Indicators

Cable Entry
Top/Bottom Entry

Mounting Type
Floor Mounted

Earthing Provision
Internal/External Copper or GI Strips

Panel Door Type
Gasket Sealed Hinged / Double Door

Ambient Operating Temperature
-10C to +55C

Short Circuit Withstand Capacity
Up to 65kA for 1 sec

Temperature Rise
As per IEC/IS standards

Customization
Design as per site and client requirements

Busbar Material
Electrolytic Grade Copper / Aluminium

PCC Panel Trade Information

Minimum Order Quantity
1 Piece

FOB Port
AHMEDABAD

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
10 Pieces Per Week

Delivery Time
3 Week

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
Gujarat, Madhya Pradesh, Maharashtra, Rajasthan

About PCC Panel

Your search for best grade PCC Panel ends here at Servo Tech Control System. It is used for controlling the power supplied transformers, motors and several other electrical control systems. In addition to this, the said product is found in chemical plants, refrigeration plant, refineries, dairies, plastic and pharmaceutical industries. PCC Panel has a modular design and light weight which makes the installation convenient. Our offered product ensures trouble free service, high strength and robust construction. It comes in diverse designs, sizes, shapes and specifications. Moreover, the offered model is flawless in appearance and can tolerate extreme temperatures.

Features of PCC Panel:

High functionality
Impeccable performance
Sturdy construction
Power efficient

Product Details

IP Rating	Acoording to Requirement
Brand	SERVO TECH CONTROL SYSTEM
Application	INDUSTRIAL
Condition	New
Light Indication	Yes

Advanced Power Distribution Panel

PCC Panels play a central role in managing and distributing electrical power within industries, utilities, and large installations. Engineered using high-grade CRCA steel and powder-coated surfaces, these panels incorporate state-of-the-art protection, metering, and control components. Their modular layout ensures adaptability to evolving requirements and simplifies expansion or maintenance.

Customization and Versatile Operation

Every site has unique needs, which is why PCC Panels are fully customizable in size, configuration, current ratings, and cable entry points. Designed for either natural or forced cooling with optional remote monitoring capabilities, panels can be tailored for floor mounting and offer multiple ways to achieve effortless wiring, monitoring, and system control in both traditional and digital formats.

FAQ's of PCC Panel:

Q: How does the PCC Panel ensure operational reliability and safety in industrial applications?

A: The PCC Panel integrates high-quality breakers, busbars (copper or aluminium), relays, and controllers with modular construction, robust earthing, and protection levels up to IP55. Its double-door, gasket-sealed design, strict adherence to IEC 61439/IS 8623 standards, and powder-coated mild steel ensure safety and consistent operation even in demanding environments.

Q: What customization options are available for the PCC Panel?

A: PCC Panels can be tailored to client requirements regarding dimensions, current and voltage ratings (up to 6300A at 415V), busbar material, cable entry (top/bottom), earthing (internal/external), way configuration, protection level (IP42/IP54/IP55), door type, mounting, control systems, and metering displays. This flexibility ensures compatibility with virtually any industrial setup.

Q: Where can the PCC Panel be installed, and what is its operating temperature range?

A: Designed primarily for industrial and utility environments, the PCC Panel is floor-mounted and ideal for power distribution, motor control, and utility management. It reliably operates within ambient temperatures of -10C to +55C, assuring performance across a variety of climatic conditions.

Q: When should the PCC Panel be used for power distribution?

A: This panel should be implemented when a facility requires centralized and safe management of electrical loads up to 6300A, particularly in sectors needing high operational reliability, modular expansion, and precise monitoring such as manufacturing, utilities, and large commercial buildings.

Q: What is the process for maintaining or modifying the PCC Panel?

A: Thanks to its modular construction and hinged/double door access, maintenance is straightforward. Components such as breakers, relays, and metering modules are easily replaceable or upgradable. Internal/external earthing and spacious layouts simplify routine inspections and modifications according to new site or load requirements.

Q: How do the features of the PCC Panel benefit end users?

A: Users benefit from enhanced operational safety, modular design for easy expansion or maintenance, high short-circuit withstand capacity, reliable temperature performance, remote monitoring options, and clear metering interfaces. All these features translate to lower downtime, better protection, and greater efficiency in power distribution.
