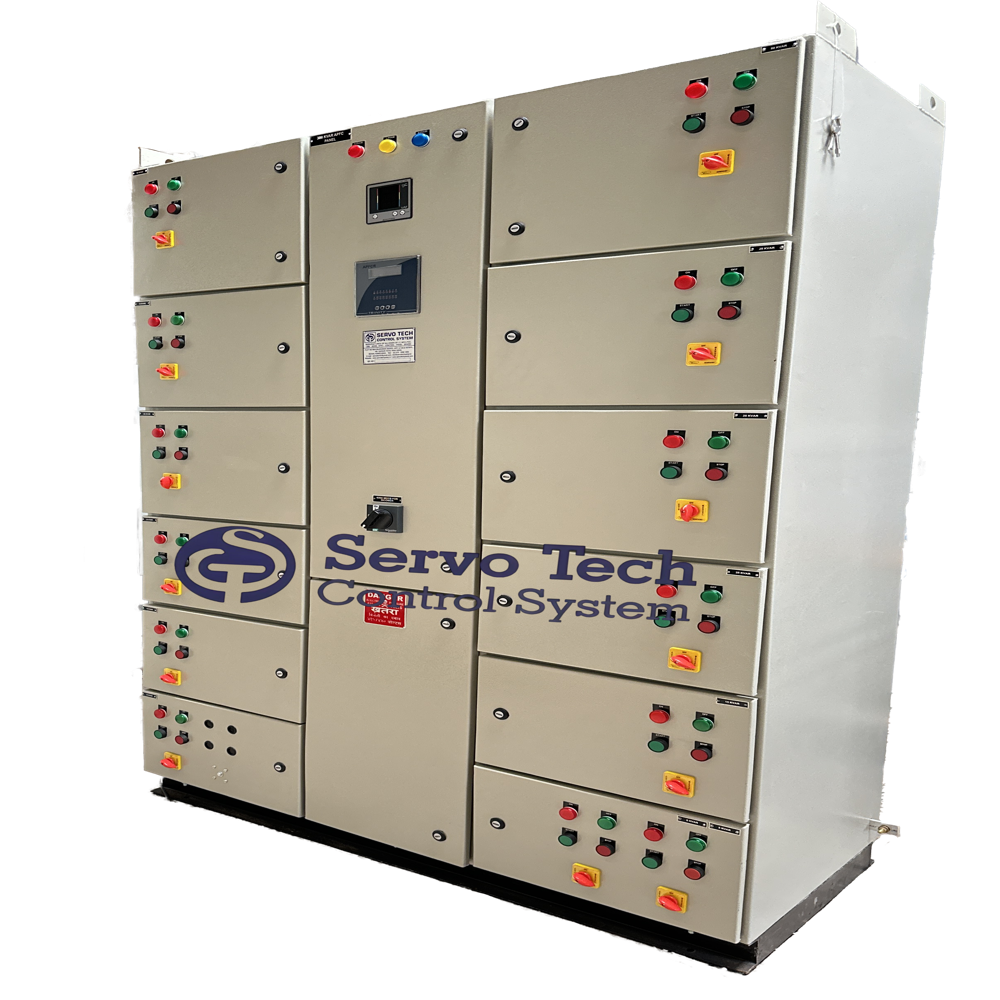

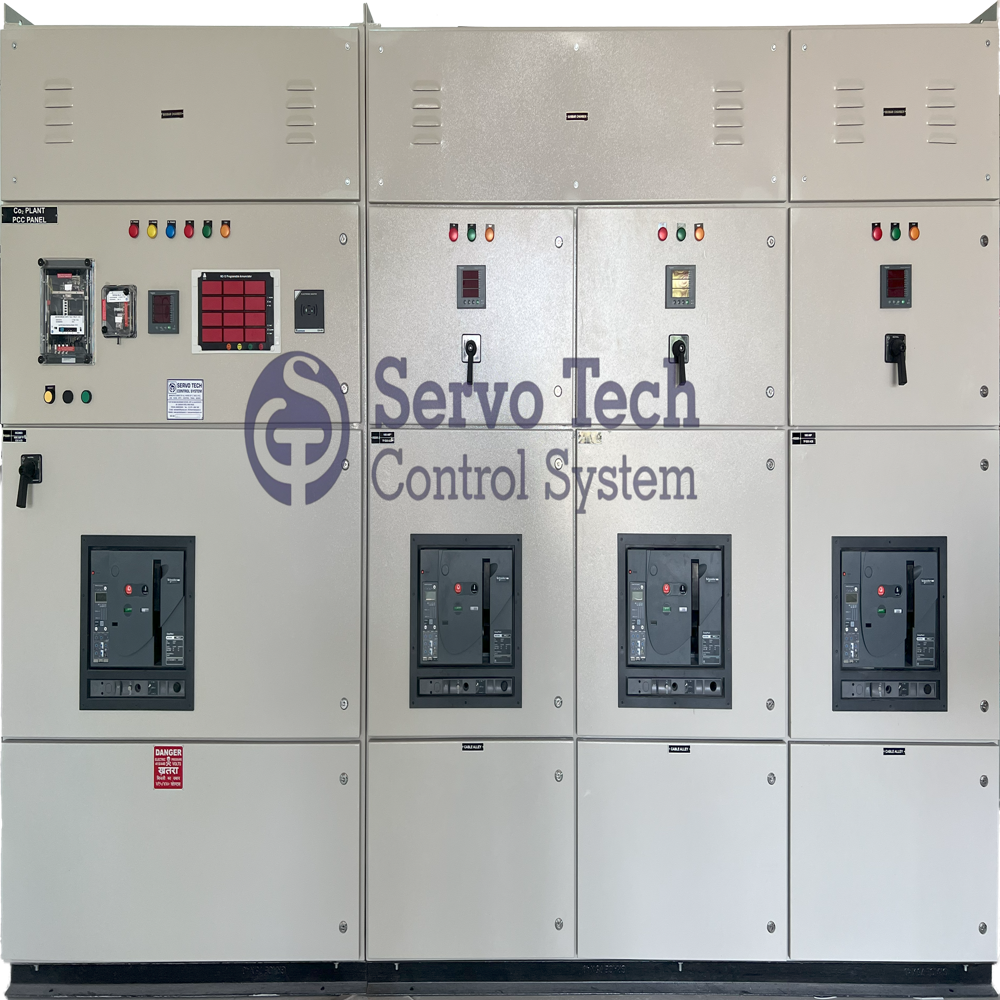

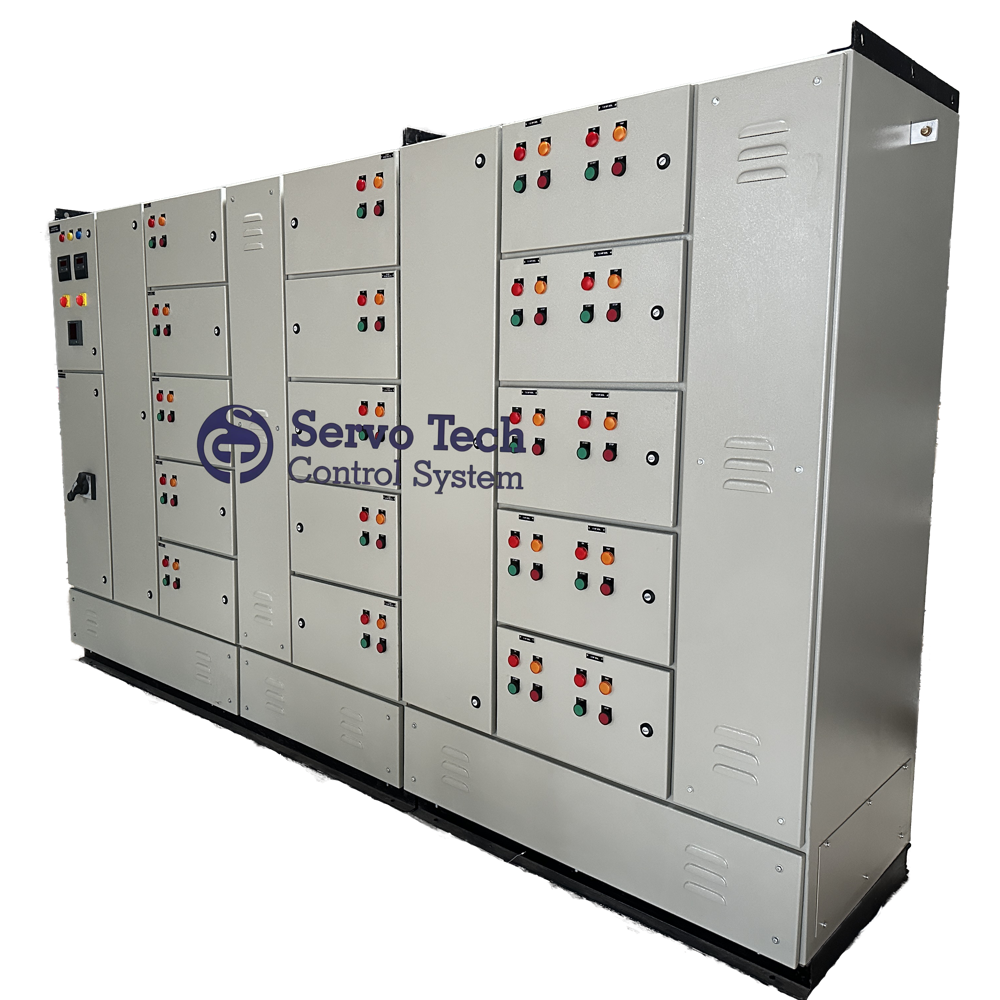

Electric Control Panel

Name: Electric Control Panel
Brand: SERVO TECH CONTROL SYSTEM
Price: 50000.0 INR
Availability: InStock

Price 50000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Electric Control Panel Specification

Rated Operation Voltage
415V

Control System
Manual/Automatic

Cooling System
Natural Air Vented

Rated Current
Customizable

Protection Level
IP42 / IP54

Cabinet Material
Mild Steel Sheet

Features
Corrosion Resistant, Robust Design, Long Life

Cover Material
Powder Coated Steel

Protection Class
Class 1

Current Rating
5000A

Base Material
Mild Steel

Operating Voltage
380-415V AC

Way
Configurable

Panel Type
Floor Mounted

Connectivity Type
Hardwired

Rated Insulation Voltage
660V

Components
MCB, MCCB, Relays, Contactors, Volt/Amp meters

Thickness
1.6mm to 2mm

Product Type
Electric Control Panel

Material
Other

Surface Finish
Powder Coated

Standard
IS 8623 / IEC 60439

Surface Color
Powder Coated Grey

Rated Voltage
415V AC

Frequency (MHz)
50 Hz

Maximum Output Current
630A

Dimension (L*W*H)
As per design/specification

Application
Industry / Commercial

Display Type
Analog Meter

Mounting Type
Floor Standing

Cable Entry
Top/Bottom Entry Available

Earthing
Double Earthing Provision

Door Type
Hinged with Lock

Busbar Material
Electrolytic Copper / Aluminium

Ambient Operating Temp.
-10C to +55C

Electric Control Panel Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
10 Pieces Per Week

Delivery Time
3 Week

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia

Main Domestic Market
Gujarat, Madhya Pradesh, Maharashtra, Rajasthan

About Electric Control Panel

Incorporated in the year 1992, we are noted as one of the promising manufacturers and suppliers of Electronic Control Panels. Available in diverse specifications, these panels are broadly used in measurement of power value in diverse industries. Made by us using high-end quality materials and components, these panels are popular in the market due to their low power consumption, sturdy structure and easy installation. Owing to our qualitative range of Electronic Control Panels, we have made huge client base across the market.

Specification:- 230V/415V AC, Supply.

Superior Construction and Durability

Manufactured from high-quality mild steel and finished with powder-coated grey, this control panel provides outstanding corrosion resistance and mechanical strength. The robust build and thickness of 1.6mm to 2mm make it ideal for harsh industrial environments, ensuring longevity even under demanding use.

Flexible and Secure Mounting Options

Designed for floor standing installation, the panel features a lockable, hinged door for easy access and enhanced security. Top and bottom cable entry options enable versatile cable management, streamlining setup and future modifications according to project requirements.

Comprehensive Safety and Compliance

Adhering strictly to IS 8623 and IEC 60439 standards, our panel boasts a double earthing provision and IP42/IP54 protection rating. With a protection class of Class 1 and reliable components, it ensures operational safety and compliance with industry benchmarks for a wide range of applications.

FAQ's of Electric Control Panel:

Q: How is the electric control panel installed, and what mounting options are available?

A: The panel is designed for floor standing installation, making it easy to place in industrial or commercial settings. It comes with a robust base and configurable cable entry points at both the top and bottom, simplifying integration with existing wiring systems.

Q: What are the safety and protection features provided in this control panel?

A: This control panel offers double earthing provision, IP42 or IP54 protection levels, and is constructed from mild steel for enhanced durability. The hinged, lockable door and compliance with IS 8623 and IEC 60439 standards ensure both user and equipment safety.

Q: Where can this electric control panel be effectively used?

A: It is suitable for industrial and commercial applications, including manufacturing plants, utilities, and large infrastructure projects. The panel's robust design and adaptable configuration make it ideal for demanding environments requiring reliable power distribution.

Q: What components are included in the panel, and how are they operated?

A: Standard components include MCBs, MCCBs, relays, contactors, volt/amp meters, and analog display meters. The control system can be configured for manual or automatic operation, with all controls hardwired for reliability.

Q: When is double earthing provision necessary in a control panel?

A: Double earthing is essential when higher safety standards are required, particularly in industrial environments where fault current paths must remain effective. This provision ensures maximum protection for personnel and equipment during electrical faults.

Q: What is the benefit of using powder-coated mild steel and a hinged lockable door in this panel?

A: Powder-coated mild steel provides excellent resistance to corrosion and mechanical damage, extending the panel's lifespan and reducing maintenance. The hinged, lockable door ensures both secure access and straightforward servicing.

Q: How can the way (number of outputs) and current rating be configured?

A: Both the number of ways and the rated current are customizable as per user requirements. This allows the panel to be tailored to specific project needs, supporting flexible operation and future expansion.
