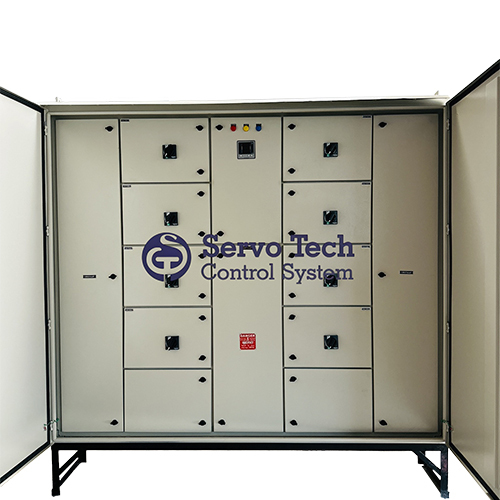

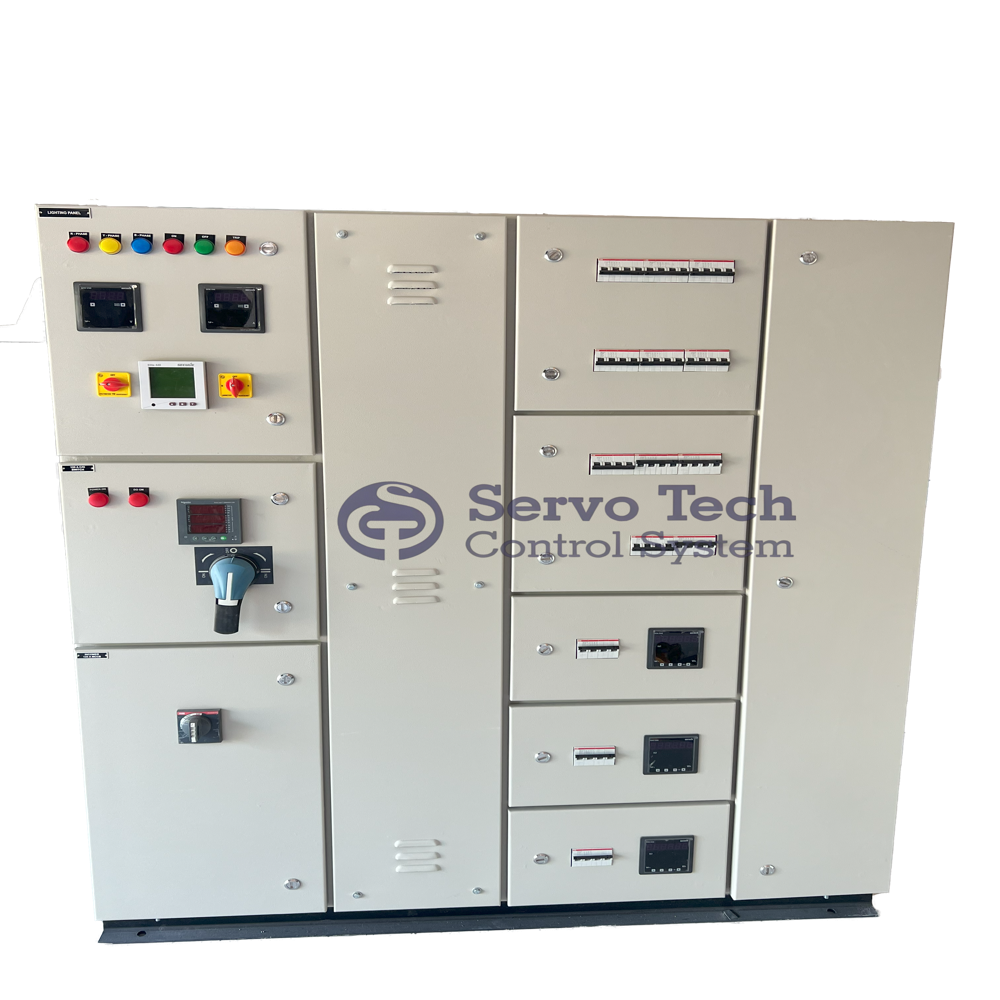

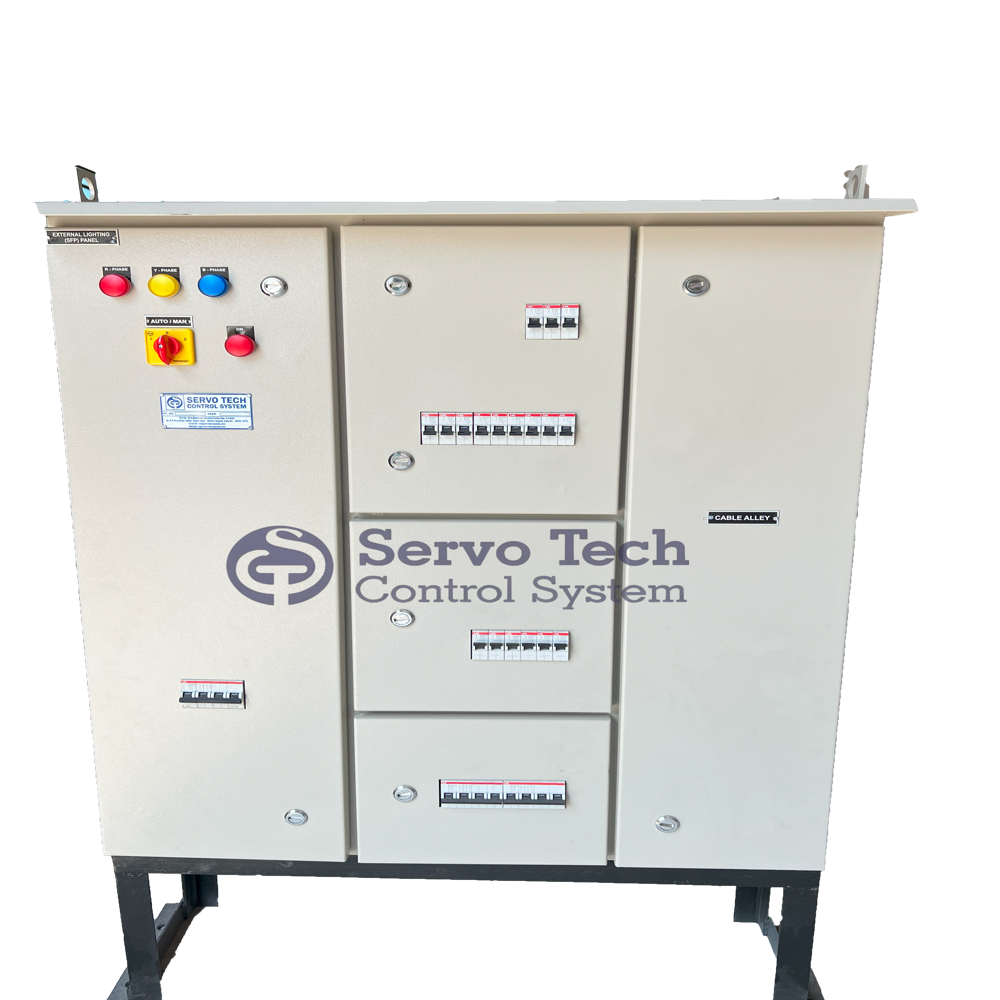

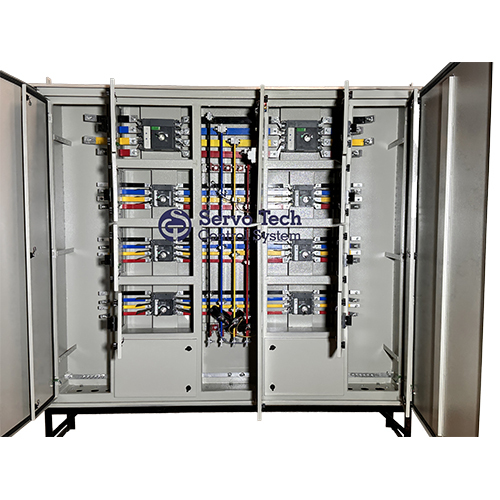

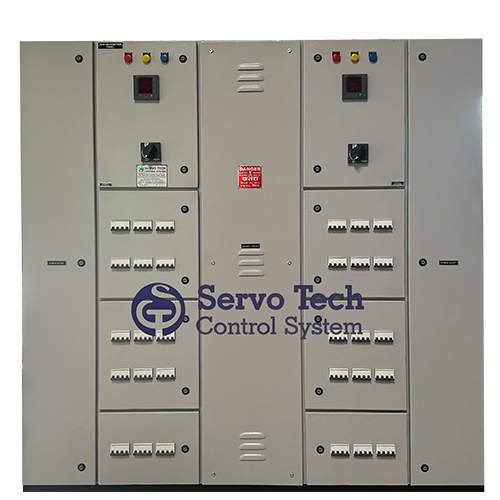

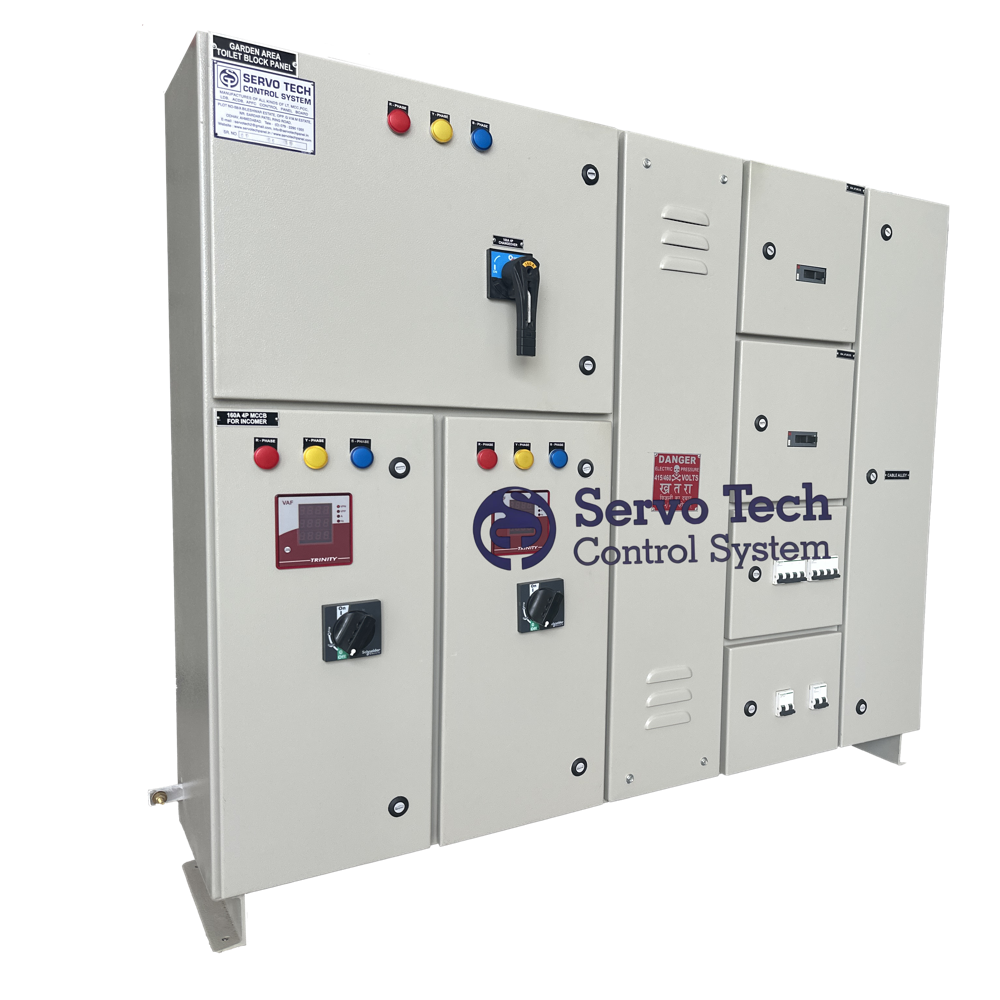

LIGTING DB PANEL

Name: POWER DB PANEL OR LIGTING DB PANEL
Brand: SERVO TECH CONTROL SYSTEM
Price: 100000
Availability: InStock

Price 60000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

LIGTING DB PANEL Specification

Rated Operation Voltage
415V AC

Base Material
CRCA Sheet Steel

Features
Corrosion Resistant, Modular Construction, Custom Wiring, Labelled Switches

Operating Voltage
415V AC

Protection Level
IP42 - IP54

Thickness
1.6 mm to 2 mm

Panel Type
Wall / Floor Mounted

Connectivity Type
Cable Entry - Top/Bottom

Components
MCB, MCCB, RCB, Indicator Lamps, Bus Bars, Neutral Link

Current Rating
100A - 630A (Configurable)

Cabinet Material
Powder Coated Mild Steel

Cooling System
Natural Air Cooled

Cover Material
Powder Coated Mild Steel

Way
TPN / SPN (Customizable as per requirement)

Rated Insulation Voltage
690V AC

Control System
Manual / Basic Switchgear

Protection Class
Class I

Rated Current
Up to 630A

Product Type
Power Distribution Board (Power DB) / Lighting Distribution Board (Lighting DB)

Material
Mild Steel (MS), Powder Coated Steel

Surface Finish
Powder Coated

Standard
IS 8623 / IEC 61439

Surface Color
White/Grey (as shown in image)

Rated Voltage
415V AC

Frequency (MHz)
50/60 Hz

Maximum Output Current
Up to 630A

Dimension (L*W*H)
Custom Size (Usually from 900x600x300 mm & upwards)

Application
Power Distribution in Commercial, Industrial, Residential Buildings

IP Rating
IP42 to IP54 (based on model)

Display Type
Analog/Indicator LEDs

Finish Type
Epoxy Powder Coated Finish

Ambient Temperature Range
-10C to +55C

Cable Gland Plate
Removable Provided at Bottom

Earth Bar
Included

Bus Bar Material
Electrolytic Grade Copper/Aluminum

Enclosure Type
Indoor Type

Mounting Type
Floor Standing / Wall Mounted

Door Type
Single/Double Front Hinged Door

Access
Front/Rear Access for Maintenance

Safety Features
Earth Leakage Protection, Short Circuit and Overload Protection

LIGTING DB PANEL Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Week

Delivery Time
7 Days

About LIGTING DB PANEL

Discover the hot-selling and sought-after POWER DB PANEL or LIGHTING DB PANEL-a valiant solution for power distribution in commercial, industrial, and residential settings. This featured product is crafted from meritorious electrolytic grade copper or aluminum bus bars and is available with robust single or double front hinged doors. With options for wall or floor mounting, it is epoxy powder coated for optimal corrosion resistance. Enjoy advanced earth leakage, overload, and short circuit protection with IP42-IP54 safety ratings. The modular design, custom sizing, and premium efficiency make this offer too good to miss-ending soon!

Versatile Applications for Every Surface

The POWER DB PANEL or LIGHTING DB PANEL is used for reliable power distribution across commercial, industrial, and residential buildings. Its adaptable design suits general use on both floor and wall mounted installations, ensuring seamless integration on any application surface. High-grade components and customizable configurations provide steadfast performance for main power cabling, distribution, and lighting needs. The panel's corrosion-resistant exterior adds longevity, making it the premier choice for versatile and meritorious energy management.

Premium Supply & Sample Policy for Trusted Delivery

Sample policies are flexible, providing prospective buyers with samples for quality assessment prior to premium supply orders. With an impressive supply ability by reputable manufacturers and suppliers across India, goods are transported safely and efficiently. Whether for a large project or bulk procurement, trust our robust logistics network to deliver your panel at optimal condition. Take advantage of available samples, efficient transport, and responsive support for your customized requirements.

FAQ's of POWER DB PANEL OR LIGTING DB PANEL:

Q: How is the POWER DB PANEL or LIGHTING DB PANEL installed and accessed for maintenance?

A: These panels can be wall or floor mounted and are equipped with single or double hinged front doors. They offer both front and rear access for convenient maintenance tasks.

Q: What types of safety features are integrated into this panel?

A: The panels include earth leakage protection, short circuit and overload protection, ensuring reliable and secure power distribution in any application.

Q: Where are these DB panels best used?

A: The panels are engineered for use in diverse environments including commercial, industrial, and residential buildings, adapting to a range of power distribution applications.

Q: What process is involved in acquiring customized panels?

A: Customers can specify requirements such as way type, size, rating, and configuration. Samples are available for review before placing bulk or custom orders through the supplier network.

Q: What is the benefit of the modular construction and labelled switches?

A: The modular design allows for easier expansion and maintenance, while labelled switches and connections promote safer, more efficient operation during installation or servicing.
